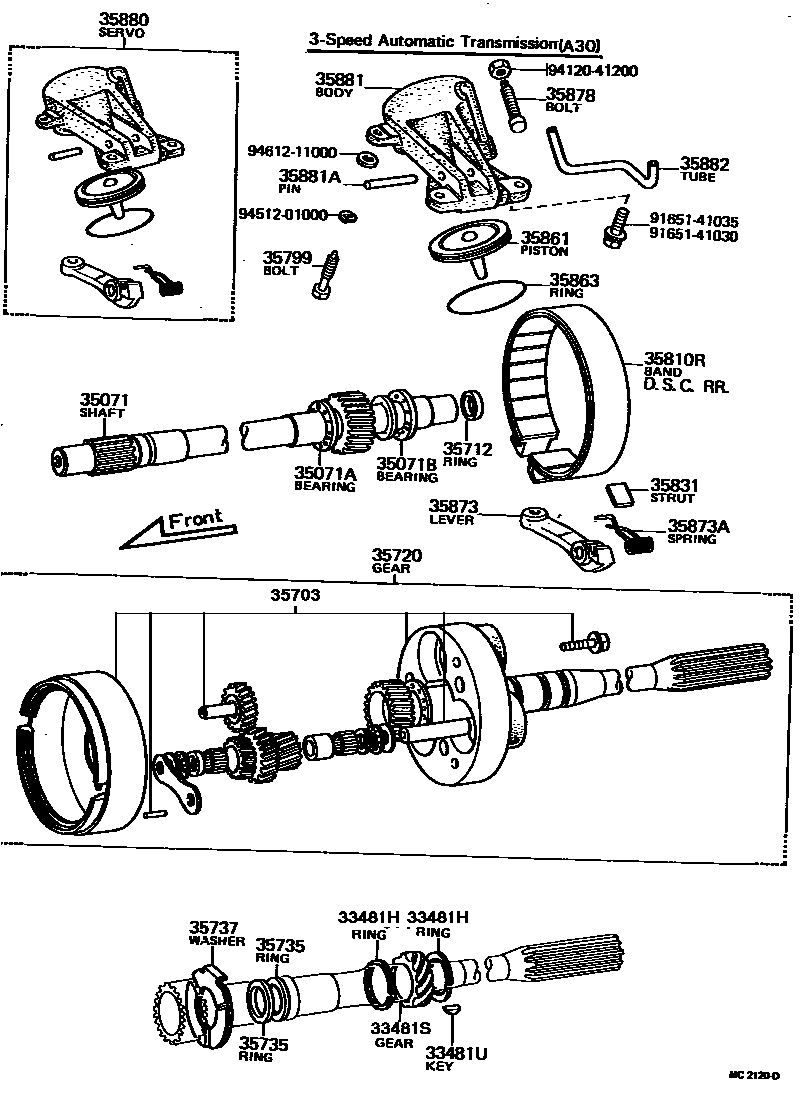

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
33481HRING, SHAFT SNAP (FOR ATM SPEEDMETER DRIVE GEAR)
33481SGEAR, SPEEDOMETER DRIVE (ATM)
N=5
33481UBALL (FOR SPEEDOMETER DRIVE GEAR)
35071SHAFT SUB-ASSY, PLANETARY INTERMEDIATE
35071ABEARING, THRUST(FOR INTERMEDIATE SHAFT FRONT)
TP 0403SC
35071BBEARING, THRUST(FOR INTERMEDIATE SHAFT REAR)
TP 0403KSA
35703CARRIER SUB-ASSY, PLANETARY
sub35703-49015
35712RING, PLANETARY INTERMEDIATE SHAFT OIL SEAL
35720GEAR ASSY, FRONT PLANETARY
35735RING, PLANETARY OUTPUT SNAP
35737WASHER, PLANETARY CARRIER THRUST
35799BOLT, CENTER SUPPORT, NO.2
35831STRUT, BRAKE BAND APPLY
35861PISTON, REVERSE
35863RING, REVERSE PISTON OIL SEAL, OUTER
35873LEVER, REVERSE BRAKE BAND APPLY
35873ASPRING, TORSION (FOR BRAKE BAND)
35878BOLT, REAR BRAKE BAND ANCHOR
35880SERVO ASSY, REAR
35881BODY, REAR SERVO
35881APIN, STRAIGHT (FOR REAR SERVO BODY)
sub90245-10042
35882TUBE, REAR SERVO APPLY
9165141030
main91651-41030
9165141035
main91651-41035
9412041200
main94120-41200
9451201000
main94512-01000
9461211000
main94612-11000
28 parts on this diagram · 2 diagrams in section
