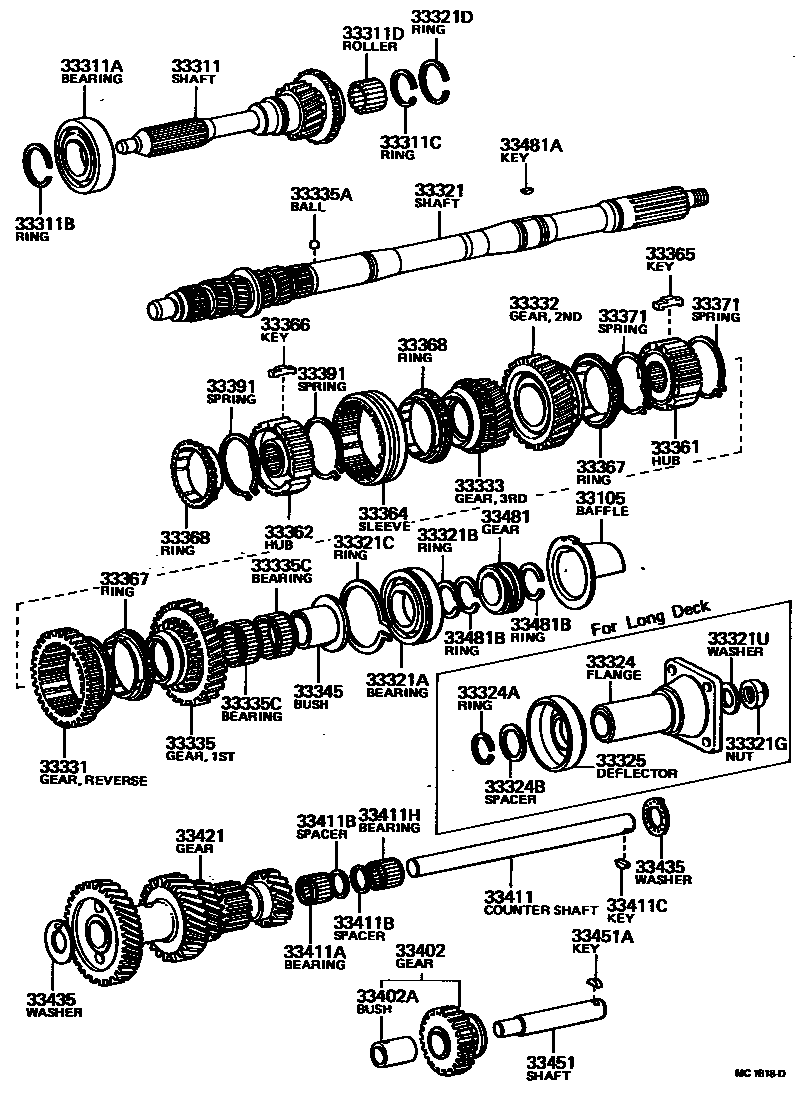

TRANSMISSION GEAR (MTM)
33105BAFFLE SUB-ASSY, EXTENSION HOUSING OIL
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.05,MARK 0,T=2.05-2.10
T=2.10,MARK 1,T=2.10-2.15
T=2.15,MARK 2,T=2.15-2.20
T=2.20,MARK 3,T=2.20-2.25
T=2.25,MARK 4,T=2.25-2.30
T=2.30,MARK 5,T=2.30-2.35
T=2.30-2.35,MARK 11,T=2.30-2.35
T=2.05,MARK 1,T=2.05-2.10
T=2.10,MARK 2,T=2.10-2.15
T=2.15,MARK 3,T=2.15-2.20
T=2.20,MARK 4,T=2.20-2.25
T=2.25,MARK 5,T=2.25-2.30
33311CRING, HOLE SNAP (FOR NEEDLE ROLLER)
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=2.43-2.48,MARK 10,T=2.43-2.48
T=2.49-2.54,MARK 11,T=2.49-2.54
T=2.55-2.60,MARK 12,T=2.55-2.60
T=2.61-2.66,MARK 13,T=2.61-2.66
T=1.89-1.94
T=1.95-2.00
T=2.01-2.06
T=2.07-2.12
T=2.13-2.18
T=2.19-2.24
T=2.25-2.30
T=2.31-2.36,MARK 8,T=2.31-2.36
T=2.37-2.42,MARK 9,T=2.37-2.42
T=1.50-1.55,MARK A,T=1.50-1.55
T=1.60-1.65,MARK B,T=1.60-1.65
T=1.70-1.75,MARK C,T=1.70-1.75
T=1.80-1.85,MARK D,T=1.80-1.85
T=1.90-1.95,MARK E,T=1.90-1.95
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=1.35,MARK 1,T=1.35-1.45
T=1.45,MARK 2,T=1.45-1.55
T=1.55,MARK 3,T=1.55-1.65
T=1.65,MARK 4,T=1.65-1.75
T=1.75,MARK 5,T=1.75-1.85
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=1.50-1.55,MARK A,T=1.50-1.55
T=1.60-1.65,MARK B,T=1.60-1.65
T=1.70-1.75,MARK C,T=1.70-1.75
T=1.80-1.85,MARK D,T=1.80-1.85
T=2.05,MARK 0,T=2.05-2.10
T=2.10,MARK 1,T=2.10-2.15
T=2.15,MARK 2,T=2.15-2.20
T=2.20,MARK 3,T=2.20-2.25
T=2.25,MARK 4,T=2.25-2.30
T=2.00-2.05
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321UWASHER (FOR MANUAL TRANSMISSION OUTPUT SHAFT SET)
33324FLANGE, OUTPUT SHAFT COMPANION (MTM)
33324ARING, OUTPUT SHAFT SNAP (MTM)
33324BSPACER, OUTPUT SHAFT (MTM)
33325DFFLECTOR, DUST (FOR MTM OUTPUT SHAFT COMPANION FLANGE)
33331GEAR, REVERSE
N=34
33332GEAR, 2ND
N=29
N=28
33335GEAR, 1ST
N=33
N=32
33335ABALL, 1ST SHIFT RESTRICT
33345BUSH, 1ST GEAR
sub33345-26011
33362HUB, TRANSMISSION CLUTCH, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33402GEAR SUB-ASSY, REVERSE IDLER
N=23
33411BSPACER(FOR COUNTER GEAR BEARING)
33411CKEY, WOODRUFF(FOR COUNTER GEAR SHAFT)
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
33421GEAR, COUNTER
N=29,26,22,15
N=33,27,20,14,14
N=33,27,20,14,14
N=32,27,21,14,15
N=32,27,21,14,15
33435WASHER, COUNTER GEAR CASE SIDE THRUST
T=2.25-2.30,FOR REAR
T=2.25,FOR REAR
T=2.35-2.40,FOR REAR
T=2.35,FOR REAR
T=2.45-2.50,FOR REAR
T=2.45,FOR REAR
T=2.55-2.60,FOR REAR
T=2.55,FOR REAR
T=2.65-2.70,FOR REAR
T=2.65,FOR REAR
T=2.16-2.26,FOR FRONT
T=2.21,FOR FRONT
T=1.95-2.05
T=2.10-2.20
T=2.25-2.35
T=2.40-2.50
33451SHAFT, REVERSE IDLER GEAR
33451AKEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=5
N=6
N=5,MARK 5X17-19,N=5
N=6,MARK 6X18-20,N=6
33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
T=1.50,OD=33.8
47 parts on this diagram · 2 diagrams in section
