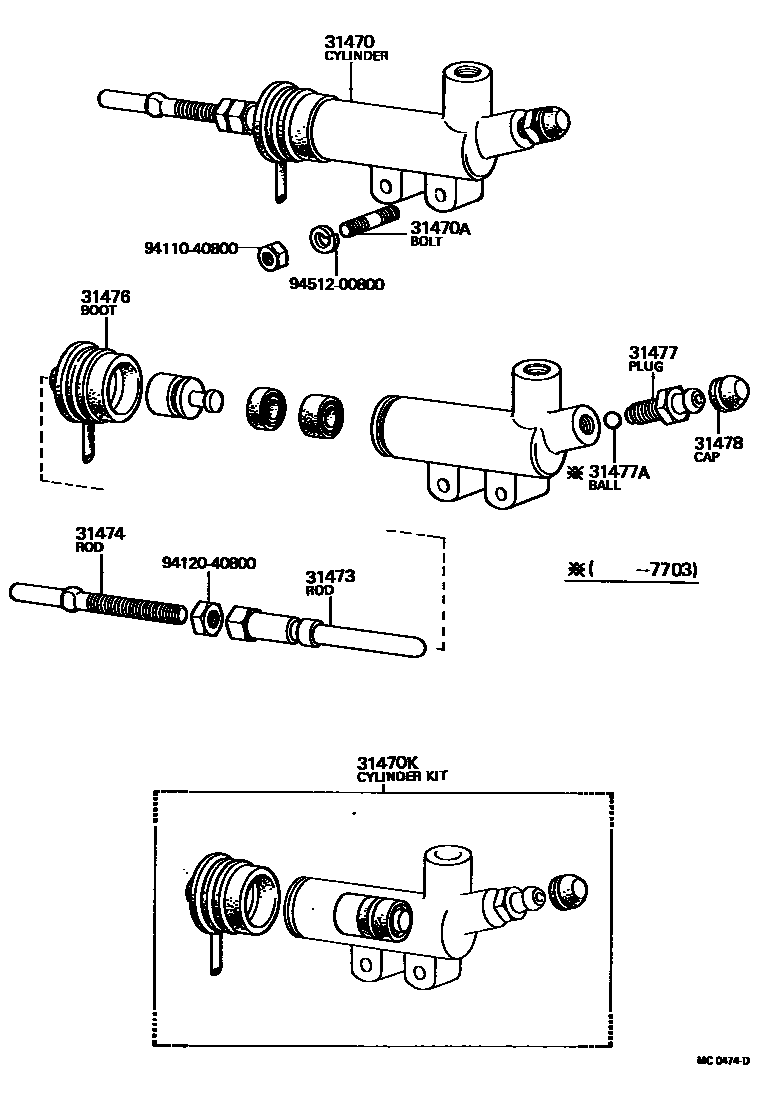

CLUTCH RELEASE CYLINDER

0001 1 0002 1

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-20090iRN22..4F197404-197408

sub31470-20091

main31470-20091iRN22,27..MTM197408-197807

sub31470-26020

main31470-26010iRN20,25197205-197807

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90116-08018iRN20,25197205-197807

main91611-40825iRN22,27..4F,5F197404-197807

*8-1.25PX25-25

sub91611-B0825

main91611-40828iRN22..4H197505-197807

sub91611-60828

31470KCYLINDER KIT, CLUTCH RELEASE

main04313-30042iRN20,25197205-197807

main04313-30052iRN22..4F197404-197408

sub04313-30054

main04313-30054iRN22,27..MTM197408-197807

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-30021iRN22,27..MTM197404-197807

main31473-35010iRN20,25197205-197807

31474ROD, CLUTCH RELEASE CYLINDER PUSH, NO.2

main31771-20010iRN20,25197205-197807

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-20030iRN20,25197211-197807

main31476-20040iRN22,27..MTM197408-197807

main31476-30010iRN2#197205-197211

sub31476-20030

main31476-30021iRN22..4F197404-197408

sub31476-20040

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main31477-30010iRN20,25197205-197703

main47547-12010iRN22..MTM197404-197807

31477ABALL(FOR RELEASE CYLINDER BLEEDER PLUG)

main90360-05006iRN20,25197205-197703

sub90360-05012

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iRN2#..MTM197205-197807

9411040800

main94110-40800

9412040800

main94120-40800

9451200800

main94512-00800

12 parts on this diagram · 2 diagrams in section
