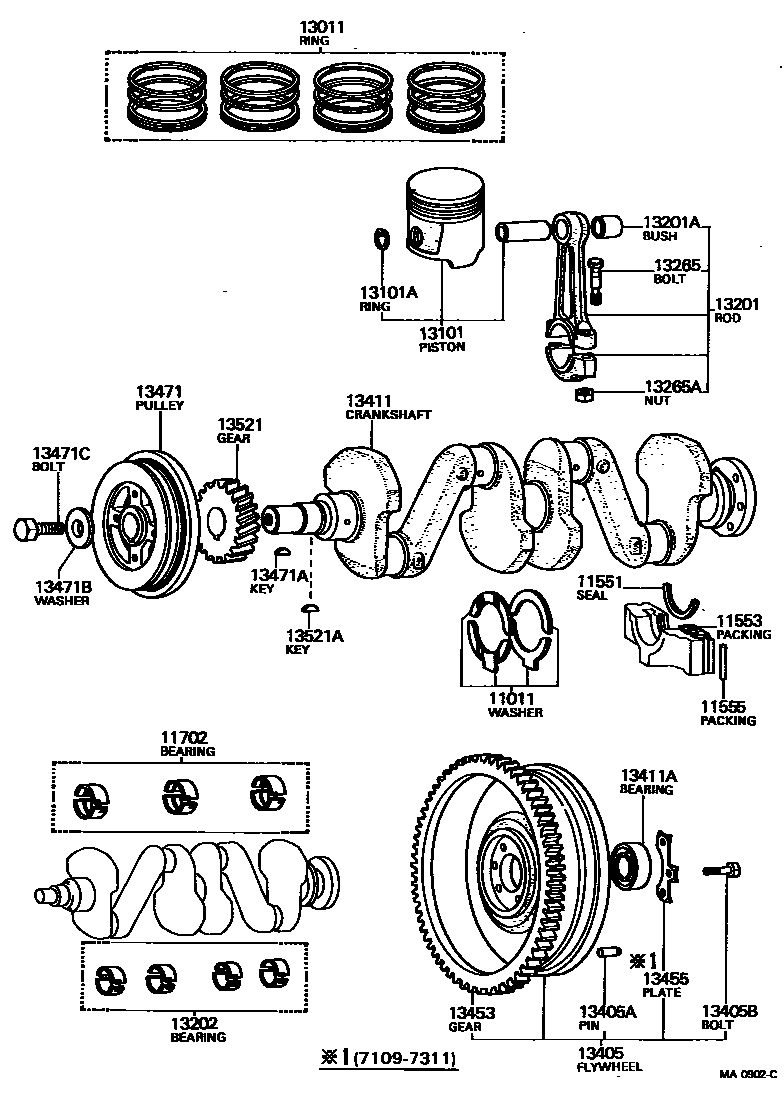

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
O/S 0.125
O/S 0.125
O/S 0.25
O/S 0.25
O/S 0.50
O/S 0.50
11551SEAL, CRANKSHAFT OIL, REAR
sub11551-31011
11553PACKING, BEARING CAP
11555PACKING, BEARING CAP SIDE, NO.1
11702BEARING SET, CRANKSHAFT
STD
STD
STD
U/S 0.05
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.50
U/S 0.50
U/S 0.50
U/S 0.75
U/S 0.75
U/S 1.00
U/S 1.00
13011RING SET, PISTON
STD
O/S 0.25
O/S 0.25 3PCS.
O/S 0.50
O/S 0.75
O/S 1.00
O/S 1.25
0/S 1.25 3PCS.
O/S 1.50
O/S 1.50 3PCS.
13101PISTON SUB-ASSY, W/PIN
STD
STD
STD
O/S 0.25
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.75
O/S 0.75
O/S 1.00
O/S 1.00
O/S 1.00
O/S 1.25
O/S 1.50
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13202BEARING SET, CONNECTING ROD
STD
U/S 0.05
U/S 0.25
U/S 0.50
U/S 0.75
U/S 1.00
13405FLYWHEEL SUB-ASSY
N=125
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=23,OD=8,L=23,OD=8
13411ABEARING(FOR INPUT SHAFT FRONT)
13453GEAR, FLYWHEEL RING
N=125
13455PLATE, FLYWHEEL BOLT LOCK, NO.1
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471BWASHER, PLATE(FOR CRANKSHAFT PULLEY SET)
sub90209-13003
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
N=25
N=18
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
