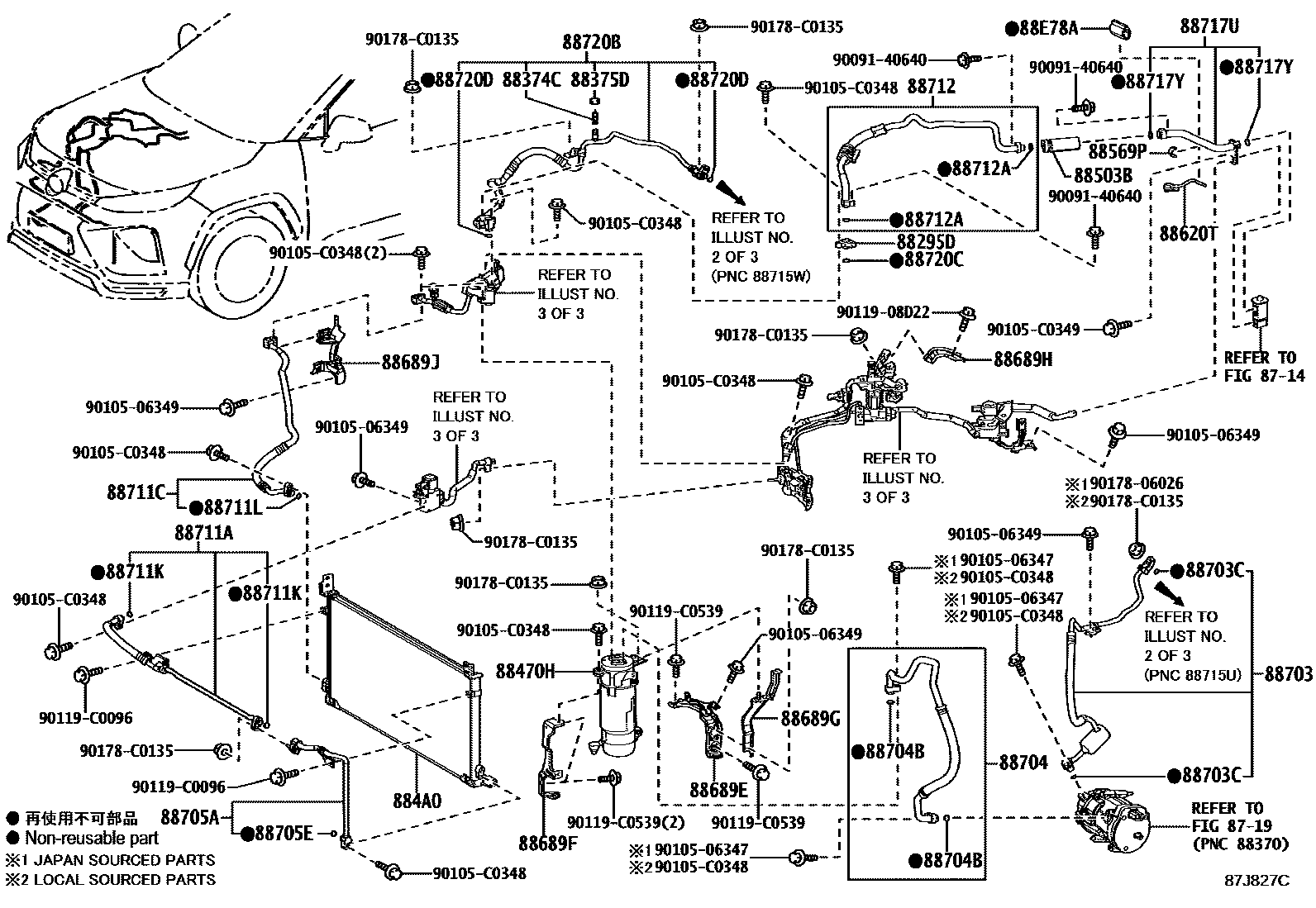

HEATING & AIR CONDITIONING - COOLER PIPING
8714
8719
88295DTUBE, VALVE TO CONNECTOR, NO.4
88374CVALVE, SERVICE, NO.2
88375DCAP, SERVICE VALVE, NO.2
88470HACCUMULATOR ASSY
884A0CONDENSER ASSY, COOLER
88503BREGULATOR SUB-ASSY, PRESSURE
88569PCLAMP, COOLER, NO.4
88620TTHERMISTOR ASSY, AIR CONDITIONER NO.4
88689EBRACKET, COOLER, NO.1
88689FBRACKET, COOLER, NO.2
88689GBRACKET, COOLER, NO.3
88689HBRACKET, COOLER, NO.4
88689JBRACKET, COOLER, NO.5
88703HOSE SUB-ASSY, DISCHARGE
88703CRING, O(FOR DISCHARGE HOSE)
ID=10.8,OD=15.6
88704HOSE SUB-ASSY, SUCTION
88704BRING, O(FOR SUCTION HOSE)
ID=13.4,OD=18.2
88705ATUBE SUB-ASSY, DISCHARGE
88705ERING, O, NO.1(FOR DISCHARGE TUBE)
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711AHOSE, COOLER REFRIGERANT DISCHARGE, NO.2
88711CHOSE, COOLER REFRIGERANT DISCHARGE, NO.3
88711KRING, O, NO.2(FOR DISCHARGE HOSE)
88711LRING, O, NO.3(FOR DISCHARGE HOSE)
88712HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712ARING, O(FOR COOLER REFRIGERANT SUCTION HOSE)
ID=13.4,OD=18.2
88717UTUBE, SUCTION, NO.1
88717YRING, O, NO.1(FOR SUCTION TUBE)
ID=13.4,OD=18.2
88720BHOSE & ACCESSORY, AIR CONDITIONER
88720CRING, O, NO.1(HOSE & ACCESSORY ASSY, AIR CONDITIONER)
ID=13.4,OD=18.2
88720DRING, O, NO.2(HOSE & ACCESSORY ASSY, AIR CONDITIONER)
ID=13.4,OD=18.2
88E78PACKING, COOLER, NO.2
88E78APACKING, COOLER, NO.3
9009140640
main90091-40640
9010506347
main90105-06347
9010506349
main90105-06349
90105C0348
main90105-C0348
90105C0349
main90105-C0349
9011908D22
main90119-08D22
90119C0096
main90119-C0096
90119C0539
main90119-C0539
9017806026
main90178-06026
90178C0135
main90178-C0135
45 parts on this diagram · 3 diagrams in section
