ANTENNA

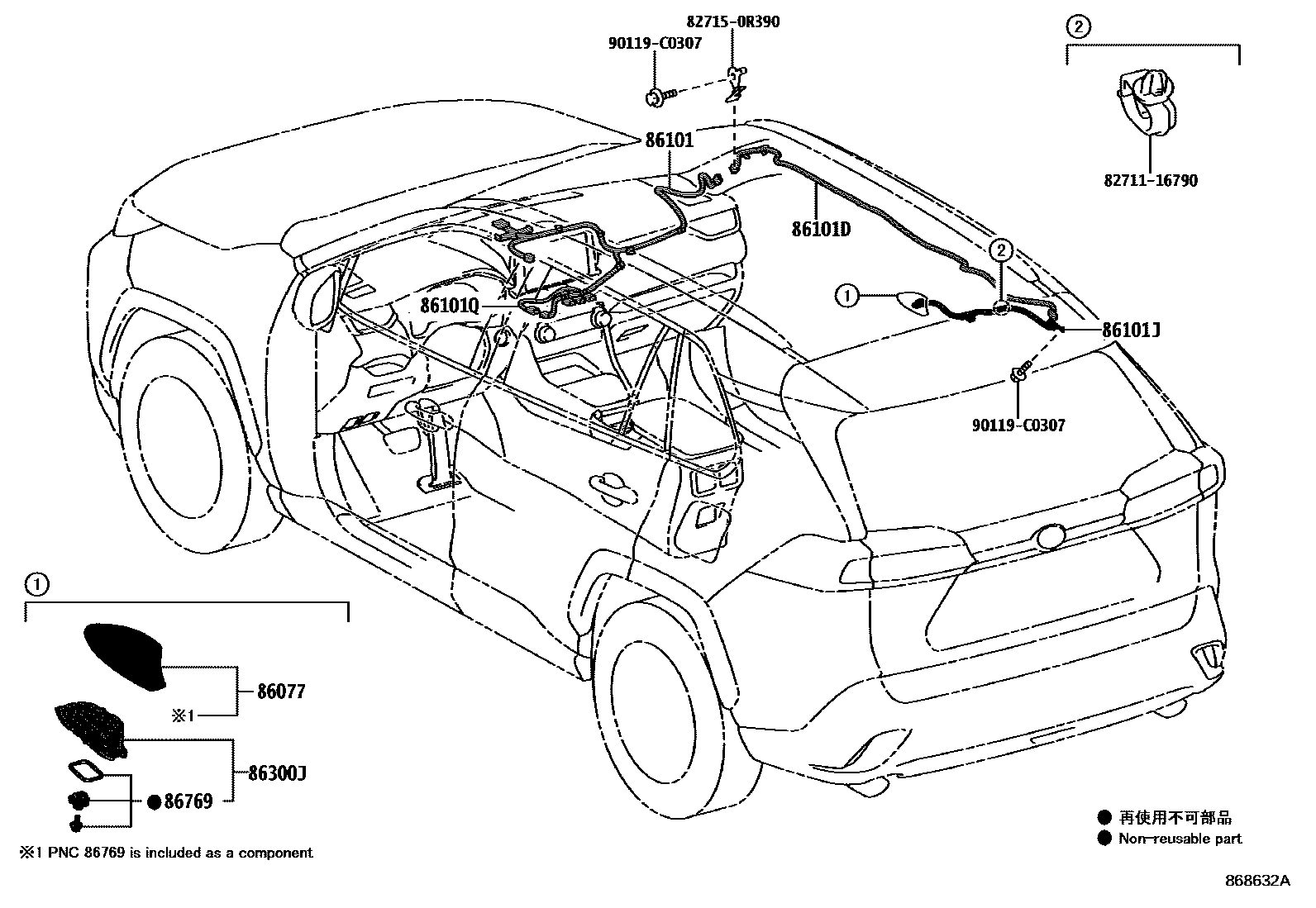

Parts diagram
86077COVER KIT, ANTENNA
main86077-12040-A1i202304
PLATINUM WHITE PEARL MC.,089
sub86077-42020
main86077-12040-B7i202304
METAL STREAM ME,1K0
sub86077-42020
main86077-12040-C4i202304
BLACK MC.,209
sub86077-42020
main86077-12040-C4i202304
BLACK MC.,209 ,2PU ,2SZ ,2TL ,2UY
sub86077-42020
main86077-12040-C6i202304
BLACKISH AGEHA GF.,221
sub86077-42020
main86077-12040-D1i202304
EMOTIONAL RED 2,3U5
sub86077-42020
main86077-12040-E2i202304
STEEL BLONDE ME.,4X1
sub86077-42020
main86077-47010-A3i202105-202304
PLATINUM WHITE PEARL MC.,089
sub86077-47010
main86077-47010-C2i202105-202304
BLACK MC.,209 ,2KR ,2PU ,2SZ ,2TL ,2TT
sub86077-47010
main86077-47010-C2i202105-202304
BLACK MC.,209
sub86077-47010
main86077-47010-C2i202105
BLACK MC.,209 ,2PU ,2SZ ,2TL ,2TT
sub86077-47010
main86077-47010-C3i202105-202304
BLACKISH AGEHA GF.,221
sub86077-47010
main86077-47010-D6i202105-202304
EMOTIONAL RED 2,3U5
sub86077-47010
main86077-47010-E0i202105-202304
STEEL BLONDE,4X1
sub86077-47010
main86077-47010-E6i202105-202304
BLACKISH BROWN MC.,4X9
sub86077-47010
main86077-47010-J0i202105-202304
DK.BLUE M.M.,8W7
sub86077-47010
86101CORD SUB-ASSY, ANTENNA
main86101-0R640i202105-202304
sub86101-0R600
main86101-0RB50i202304
86101DCORD SUB-ASSY, ANTENNA, NO.3
main86101-0R630i202105-202304
sub86101-0R590
main86101-0RB70i202304
86101JCORD SUB-ASSY, ANTENNA, NO.2
main86101-0R620i202105-202304
sub86101-0R580
main86101-0RB60i202304
86101QCORD SUB-ASSY, ANTENNA, NO.4
main86101-0R650i202105-202304
86300JANTENNA ASSY, ROOF
main86300-02470i202105-202304
main86300-0A070i202304
86769HOUSING, ROOF ANTENNA
main86769-0E030i202304
main86769-12010i202105-202304
8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16790
827150R390BRACKET,WIRING HARNESS CLAMP
main82715-0R390
90119C0307
main90119-C0307

10 parts on this diagram · 1 diagram in section
