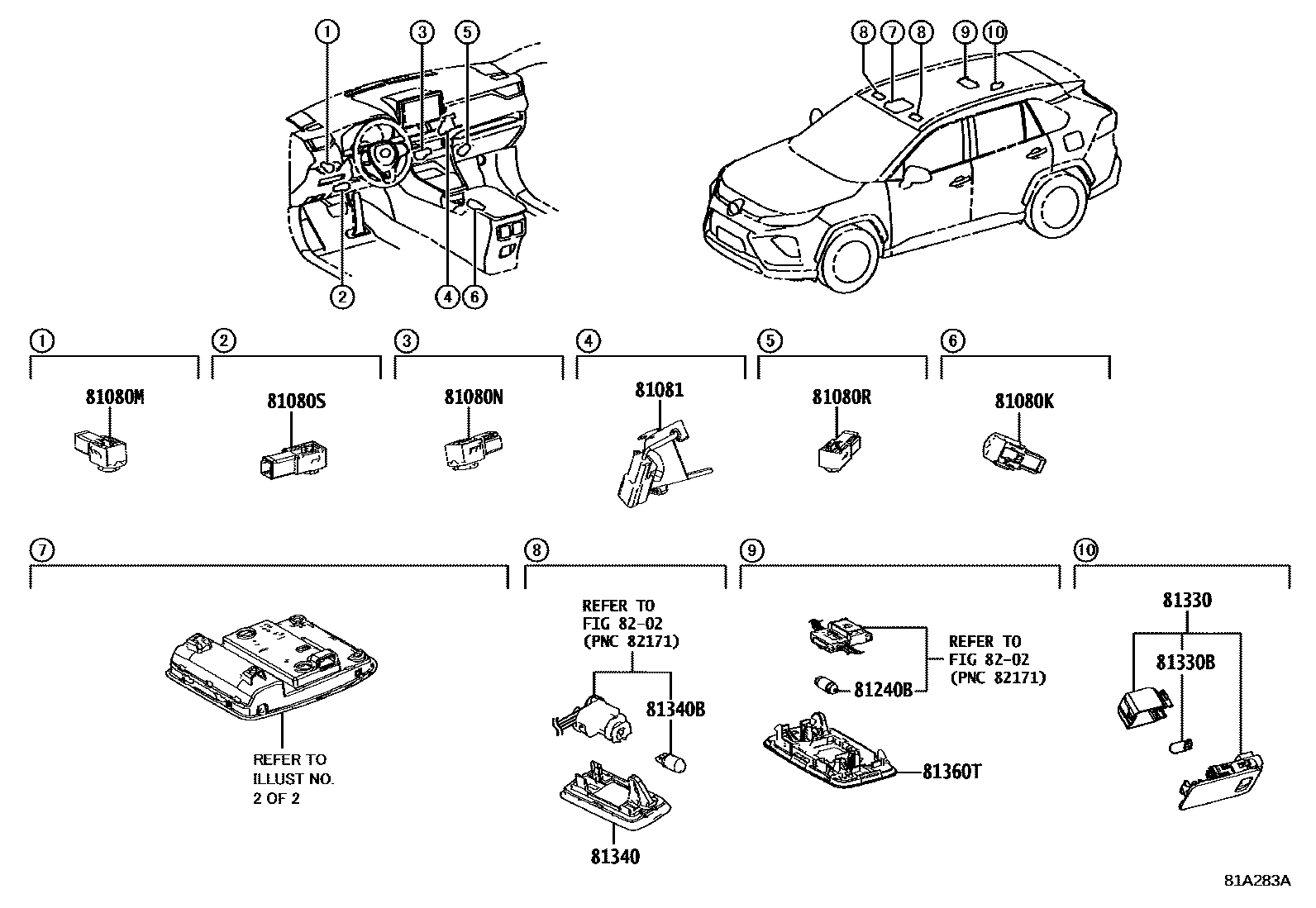

INTERIOR LAMP

0001 1 0003 1 0004 1 0006 1

81080KLAMP ASSY, CONSOLE BOX ILLUMINATION

main81080-42040iAXAP54..A202105

81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-42040iAXAP54..A202105

81080NLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-42040iAXAP54..A202105

81080RLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-06180iAXAP54..A202105

81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-06180iAXAP54..A202105

81081LAMP SUB-ASSY, INTERIOR ILLUMINATION

main81081-0R020iAXAP54..A202105

81240LAMP ASSY, ROOM, NO.1

main81240-0E020-B0iAXAP5#202304

LT.GRAY,TRIM2#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iAXAP5#..M202105-202304

12V 8W

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-58010iAXAP5#..M202105-202304

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050iAXAP54..A202105

12V 5W

81340LAMP ASSY, VANITY

main81340-0E010×2iAXAP5#202304

main81340-0F010×2iAXAP54..A202105

81340BBULB (FOR VANITY LAMP)

main90981-11062×2iAXAP54..A202105

12V 8W

81360TLAMP ASSY, SPOT

main81360-0R030iAXAP5#202304

main81360-42021-B0iAXAP5#..M202105-202304

LT.GRAY,TRIM2#

8202

14 parts on this diagram · 4 diagrams in section
