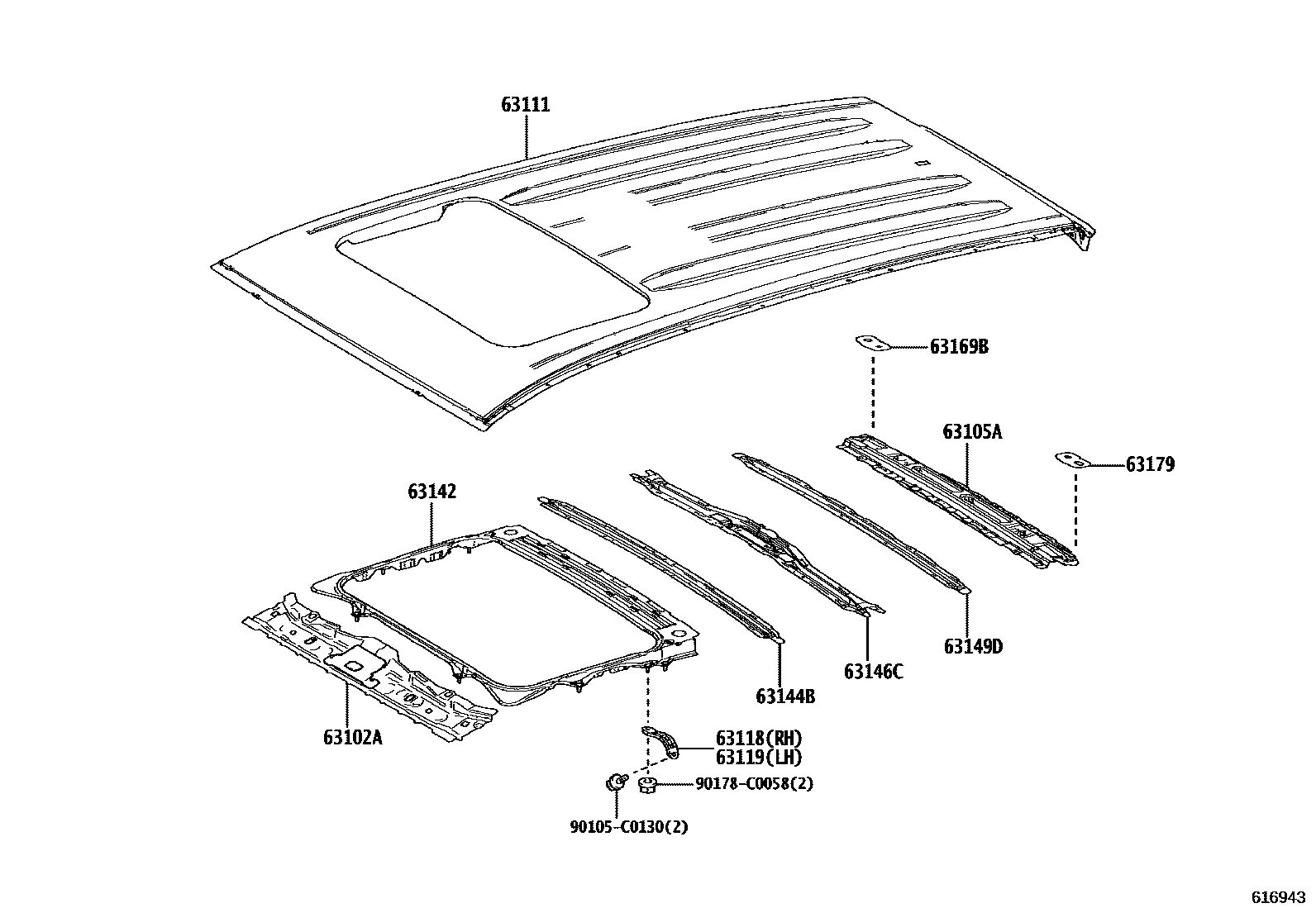

ROOF PANEL & BACK PANEL

0001 1ROOF PANEL(MOON ROOF) 0002 1ROOF PANEL(PANORAMA ROOF) 0003 1MOON ROOF 0004 1PANORAMA ROOF 0005 1ROOF RAIL 0006 1ROOF RAIL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0R160iAXAP54..A202105

main63102-0R911iAXAP5#..M202105-202304

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-0R070iAXAP5#202105-202304

63111PANEL, ROOF

main63111-0R190iAXAP5#..M202105-202304

63118SUPPORT, ROOF PANEL, RH

main63118-0R070iAXAP5#..M202105-202304

63119SUPPORT, ROOF PANEL, LH

main63118-0R070iAXAP5#..M202105-202304

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-0R090iAXAP5#..M202105-202304

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-0R080iAXAP5#..M202105-202304

63146CREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6

main63108-0R030iAXAP5#..M202105-202304

63149DREINFORCEMENT, ROOF PANEL, NO.8

main63149-0R080iAXAP5#..M202105-202304

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-F4030iAXAP54..A202105-202304

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-F4030iAXAP5#..M202105-202304

90105C0130

main90105-C0130

90178C0058

main90178-C0058

13 parts on this diagram · 6 diagrams in section
