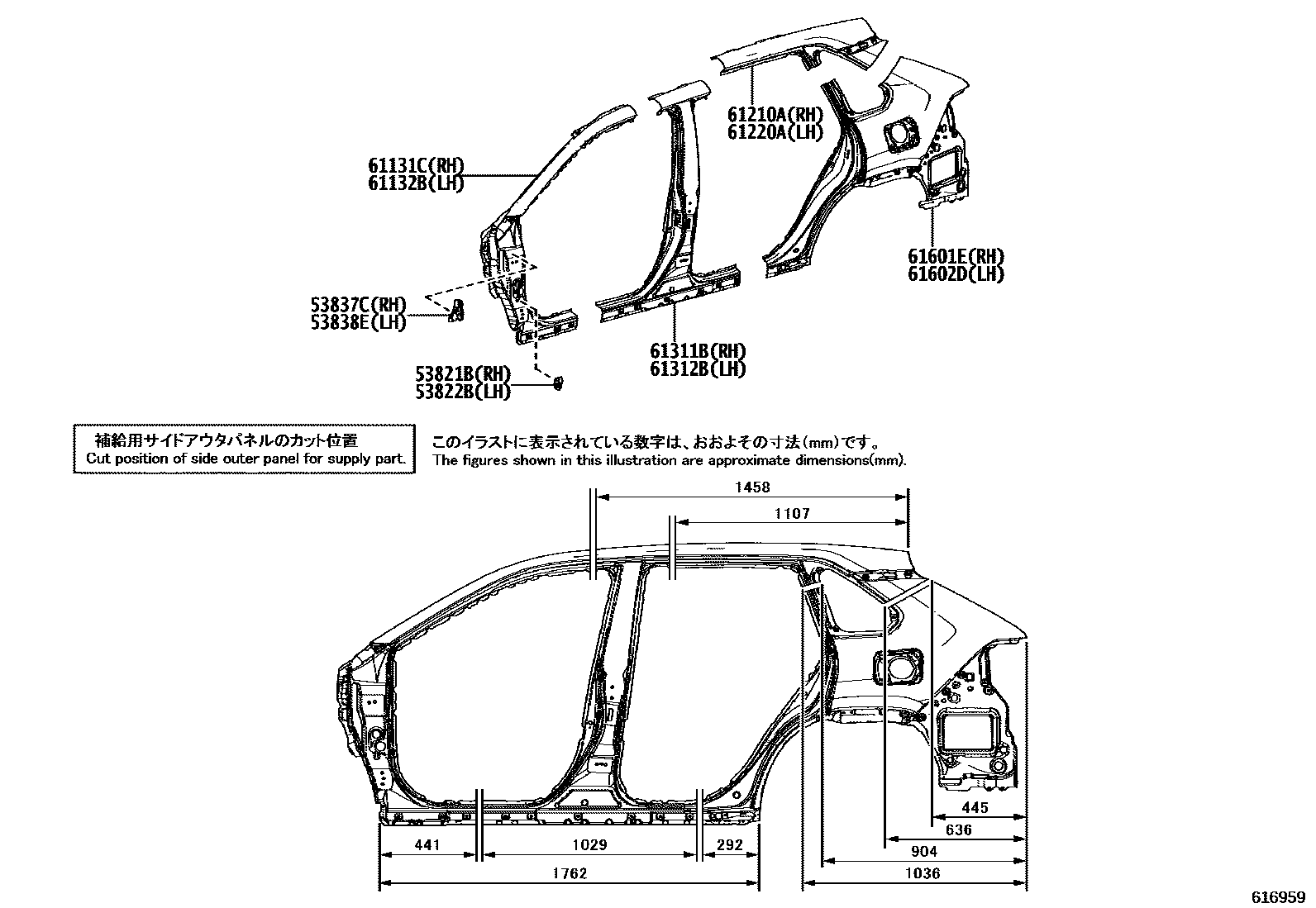

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-0R060iAXAP54..A202105-202304

53822BBRACKET, FRONT FENDER, REAR LH

main53821-0R060iAXAP5#..M202105-202304

53837CBRACKET, FRONT SIDE PANEL, NO.2 RH

main53837-0R030iAXAP5#..M202105-202304

53838EBRACKET, FRONT SIDE PANEL, NO.2 LH

main53838-0R030iAXAP5#..M202105-202304

61131CPILLAR, FRONT BODY, OUTER RH

main61131-0R080iAXAP5#..M202105-202304

main61131-0R081iAXAP5#202304

61132BPILLAR, FRONT BODY, OUTER LH

main61132-0R090iAXAP5#..M202105-202304

main61132-0R091iAXAP5#202304

61210ARAIL ASSY, ROOF SIDE, RH

main61210-0R030iAXAP5#..M202105-202304

main61210-0R031iAXAP5#202304

61220ARAIL ASSY, ROOF SIDE, LH

main61220-0R030iAXAP5#..M202105-202304

main61220-0R031iAXAP5#202304

61311BPILLAR, CENTER BODY, OUTER RH

main61311-0R080iAXAP5#..M202105-202304

main61311-0R081iAXAP5#202304

61312BPILLAR, CENTER BODY, OUTER LH

main61312-0R090iAXAP5#..M202105-202304

main61312-0R091iAXAP5#202304

61601EPANEL SUB-ASSY, QUARTER, OUTER RH

main61601-0R200iAXAP5#..M202105-202304

61602DPANEL SUB-ASSY, QUARTER, OUTER LH

main61602-0R180iAXAP5#..M202105-202304

12 parts on this diagram · 3 diagrams in section
