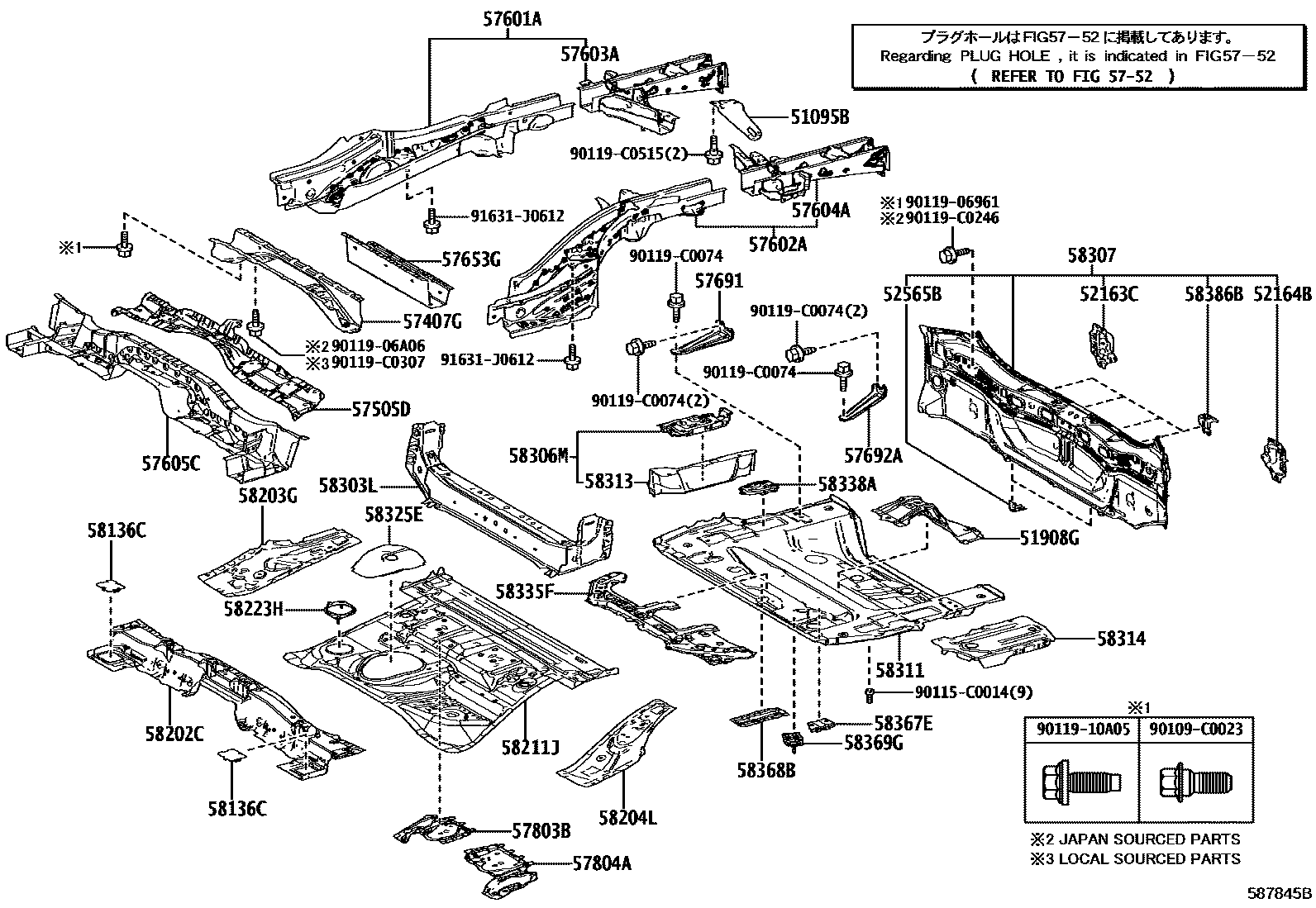

REAR FLOOR PANEL & REAR FLOOR MEMBER
51095BHOOK SUB-ASSY, TRANSPORT, REAR RH
51908GBRACKET SUB-ASSY, SPARE TIRE CARRIER
52163CPLATE, REAR BUMPER REINFORCEMENT, RH
52164BPLATE, REAR BUMPER REINFORCEMENT, LH
52565BRETAINER, REAR BUMPER, LOWER
57407GMEMBER SUB-ASSY, CENTER FLOOR CROSS
57505DREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER
5752
57601AMEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602AMEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57605CMEMBER SUB-ASSY, REAR FLOOR CROSS
57653GMEMBER, REAR FLOOR CROSS, NO.2
57691BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER RH
57692ABRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER LH
57803BREINFORCE SUB-ASSY, BELT ANCHOR, NO.2 RH
57804AREINFORCE SUB-ASSY, BELT ANCHOR, NO.2 LH
58136CCOVER, REAR FLOOR HOLE
58202CPAN SUB-ASSY, CENTER FLOOR, FRONT
58203GREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH.
58204LREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58211JPAN, CENTER FLOOR
58223HREINFORCEMENT, FLOOR PANEL SIDE, RH
58306MPANEL SUB-ASSY, REAR FLOOR SIDE
58307PANEL SUB-ASSY, BODY LOWER BACK
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58335FPLATE, FLOOR SIDE, FRONT RH
58338AREINFORCEMENT, REAR FLOOR PAN, NO.2
58367EBRACKET, FUEL TUBE, NO.1
58368BBRACKET, FUEL TUBE, NO.2
58369GBRACKET, FUEL TUBE, NO.3
58386BBRACKET, REAR BUMPER COVER, NO.2
90109C0023
main90109-C0023
90115C0014
main90115-C0014
9011906961
main90119-06961
9011906A06
main90119-06A06
9011910A05
main90119-10A05
90119C0074
main90119-C0074
90119C0246
main90119-C0246
90119C0307
main90119-C0307
90119C0515
main90119-C0515
91631J0612
main91631-J0612
47 parts on this diagram · 1 diagram in section
