FRONT FENDER APRON & DASH PANEL

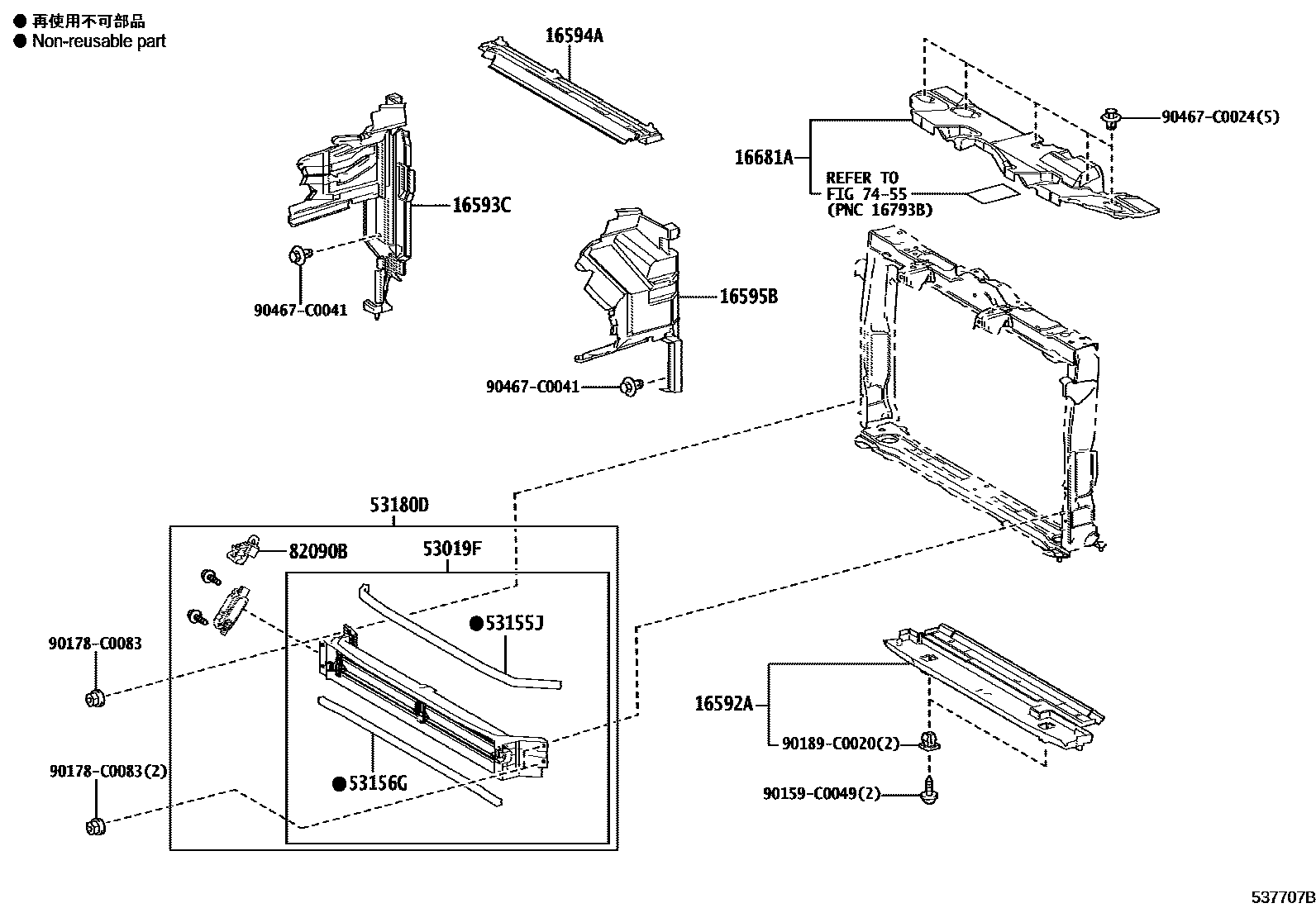

0001 1AIRGUIDE & RADIATOR SUPPORT C0002 1RADIATOR SUPPORT & FENDER APR0003 1DASH PANEL

16592AGUIDE, RADIATOR AIR, NO.3

main16592-F0120iA25DFXS..AXAP5#..M202105-202304

sub16592-F0210

main16592-F0210iA25DFXS..AXAP5#202304

16593CGUIDE, RADIATOR AIR, NO.1

main16593-F0260iA25DFXS..AXAP5#..M202105-202304

16594AGUIDE, RADIATOR AIR, NO.2

main16594-F0110iA25DFXS..AXAP5#..M202105-202304

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-F0270iA25DFXS..AXAP5#..M202105-202304

16681APLATE, RADIATOR UPPER AIR GUIDE

main16681-F0040iA25DFXS..AXAP5#..M202105-202304

sub16681-F0100

main16681-F0100iA25DFXS..AXAP5#202304

53019FSHUTTER SUB-ASSY, RADIATOR

main53019-0R090iAXAP5#..A,M202105

53155JSEAL, RADIATOR GRILLE, NO.1

main53155-0R110iAXAP5#..A,M202105

53156GSEAL, RADIATOR GRILLE, NO.2

main53156-0R130iAXAP5#..A,M202105

53180DSHUTTER ASSY, RADIATOR

main53180-0R100iAXAP5#202105-202301

sub53180-0R101

main53180-0R101iAXAP5#..A,M202302-202310

sub53180-0R102

main53180-0R102iAXAP5#202311

7455

82090BWIRE ASSY, EXTENSION

main82090-0R030iAXAP5#..A,M202105

90159C0049

main90159-C0049

90178C0083

main90178-C0083

90189C0020

main90189-C0020

90467C0024

main90467-C0024

90467C0041

main90467-C0041

16 parts on this diagram · 3 diagrams in section
