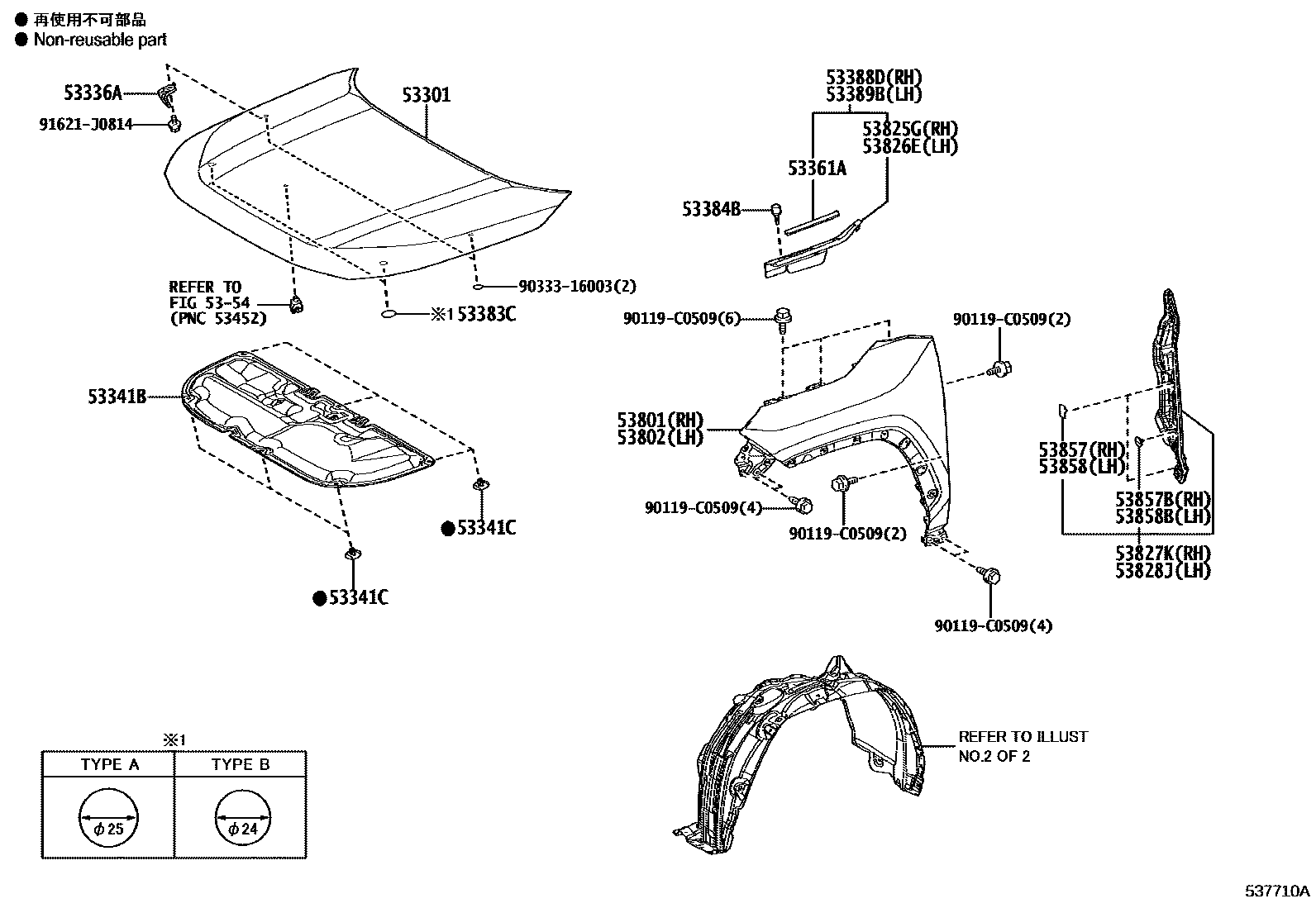

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
53336ABRACKET, HOOD STAY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53361AWEATHERSTRIP, HOOD
53383CSEAL, HOOD TO COWL TOP
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
53384BCUSHION, HOOD, CENTER
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
5354
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53825GPROTECTOR, FRONT FENDER, UPPER RH
53826EPROTECTOR, FRONT FENDER, UPPER LH
53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH
90119C0509
main90119-C0509
9033316003
main90333-16003
91621J0814
main91621-J0814
23 parts on this diagram · 2 diagrams in section
