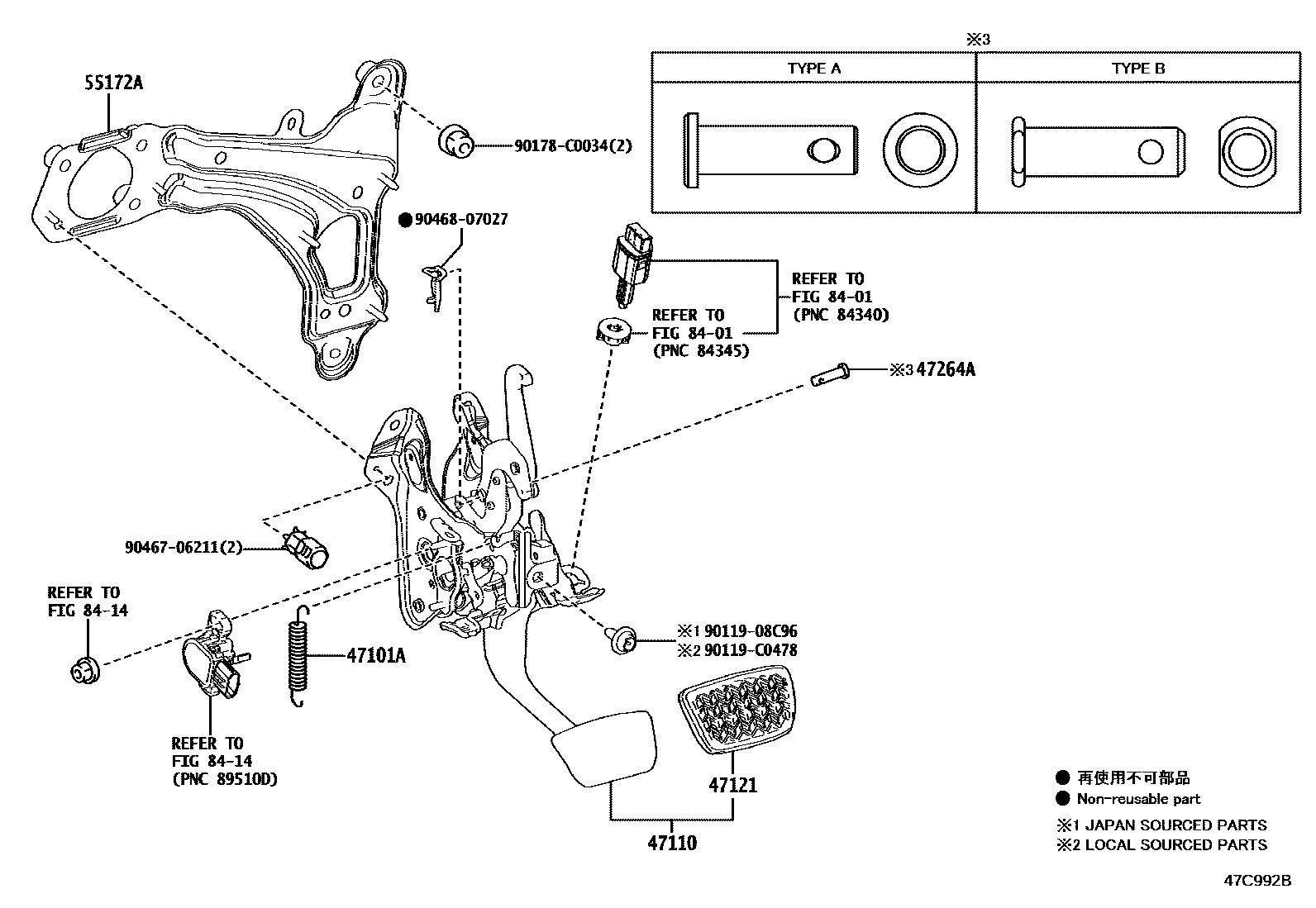

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12046iAXAP5#..M202105-202304

47110SUPPORT ASSY, BRAKE PEDAL

main47110-0R180iAXAP5#..M202105-202304

47121PAD, BRAKE PEDAL

main47121-48010iAXAP5#..M202105-202304

47264APIN(FOR PUSH ROD)

main90240-08078iAXAP5#202304

(J)

main90240-08082iAXAP5#202105-202106

TYPE B:REFER ILLUST.

main90240-C0001iAXAP54..A202106

(L),TYPE A:REF ILL.

55172ABASE, BRAKE PEDAL SUPPORT

main55172-0R030iAXAP5#..M202105-202304

8401

8414

9011908C96

main90119-08C96

90119C0478

main90119-C0478

90178C0034

main90178-C0034

9046706211

main90467-06211

9046807027

main90468-07027

12 parts on this diagram · 1 diagram in section
