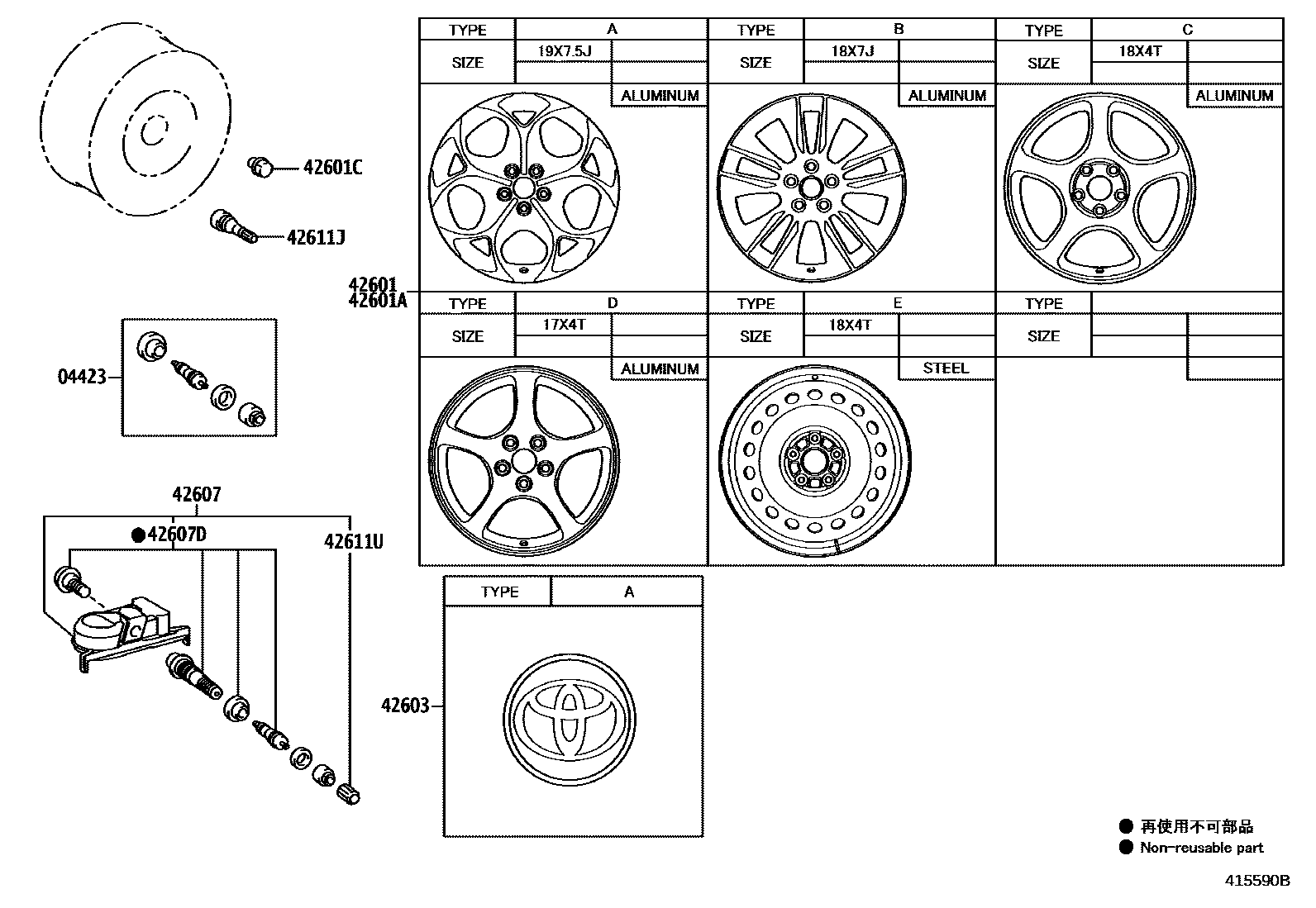

DISC WHEEL & WHEEL CAP

0001 1DISC WHEEL & WHEEL HUB ORNAME0002 1BALANCE WEIGHT

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-0N010×4iAXAP54..A202105

42601WHEEL, DISC

main42611-0R420×4iAXAP52202304

18X7J,TYPE B:REFER ILLUST.

main42611-0R430×4iAXAP54..M202105-202304

19X7.5J,TYPE A:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main4261B-0E010iAXAP5#202405

18X4T,TYPE E:REFER ILLUST.

main4261B-0R080iAXAP52202105-202304

17X4T,TYPE D:REFER ILLUST.

main4261B-0R090iAXAP54202304-202405

18X4T,TYPE C:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-C1001×20iAXAP5#202304

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-02320×4iAXAP5#..M202105-202304

*ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-02090×4iAXAP5#..M202105-202304

42607DVALVE, TIRE PRESSURE MONITOR

main90942-C5003×4iAXAP54..A202105

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iAXAP5#..M202105-202304

(J)

main90942-C5005iAXAP5#..M202105-202304

(L)

42611UCAP, TIRE VALVE

main90942-C5001×4iAXAP5#..M202105-202304

9 parts on this diagram · 2 diagrams in section
