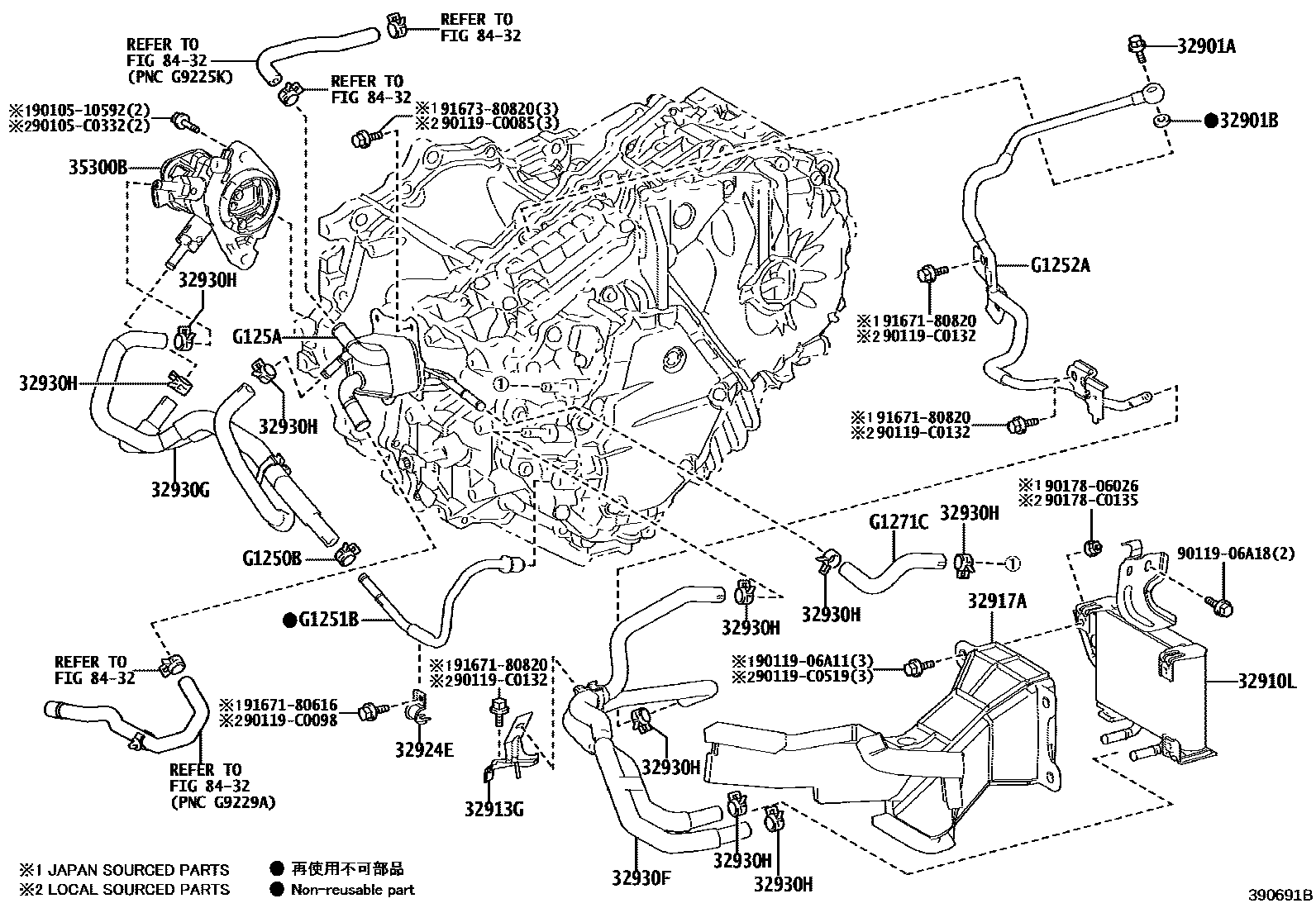

OIL COOLER & TUBE (HEV OR BEV OR FCEV)

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039iAXAP5#..M202105-202304

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037iAXAP5#..M202105-202304

32910LCOOLER ASSY, OIL

main32910-0R010iAXAP5#..M202105-202304

32913GBRACKET, TRANSMISSION OIL COOLER

main32913-0R030iAXAP5#..M202105-202304

32917ADUCT, TRANSMISSION OIL COOLER AIR

main32917-0R020iAXAP54..A202105-202304

32924ECLAMP, OIL COOLER TUBE, NO.2

main32924-48010iAXAP5#..M202105-202304

32930FHOSE ASSY, TRANSMISSION OIL COOLER, NO.1

main32930-0R040iAXAP5#..M202105-202304

32930GHOSE ASSY, TRANSMISSION OIL COOLER, NO.2

main32930-0R050iAXAP5#..M202105-202304

32930HCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iAXAP5#..M202105-202304

(J)

main90466-C0024iAXAP5#..M202105-202304

(L)

35300BPUMP ASSY, OIL W/MOTOR

main35300-48070iAXAP5#202105-202304

8432

G1250BCLIP, NO.1(FOR MOTOR COOLING PIPE)

main90466-16004iAXAP5#202105-202304

(J)

main90466-C0024iAXAP5#202105-202304

(L)

G1251BPIPE, MOTOR COOLING, NO.1

mainG12510R020iAXAP54..A202105-202304

G1252APIPE, MOTOR COOLING, NO.2

mainG12520R040iAXAP5#..M202105-202304

G125ACOOLER, MOTOR COOLING

mainG125A0R020iAXAP5#..M202105-202304

G1271CHOSE, MOTOR COOLING, NO.1

mainG12710R030iAXAP5#..M202105-202304

9010510592

main90105-10592

90105C0332

main90105-C0332

9011906A11

main90119-06A11

9011906A18

main90119-06A18

90119C0085

main90119-C0085

90119C0098

main90119-C0098

90119C0132

main90119-C0132

90119C0519

main90119-C0519

9017806026

main90178-06026

90178C0135

main90178-C0135

9167180616

main91671-80616

9167180820

main91671-80820

9167380820

main91673-80820

29 parts on this diagram · 1 diagram in section
