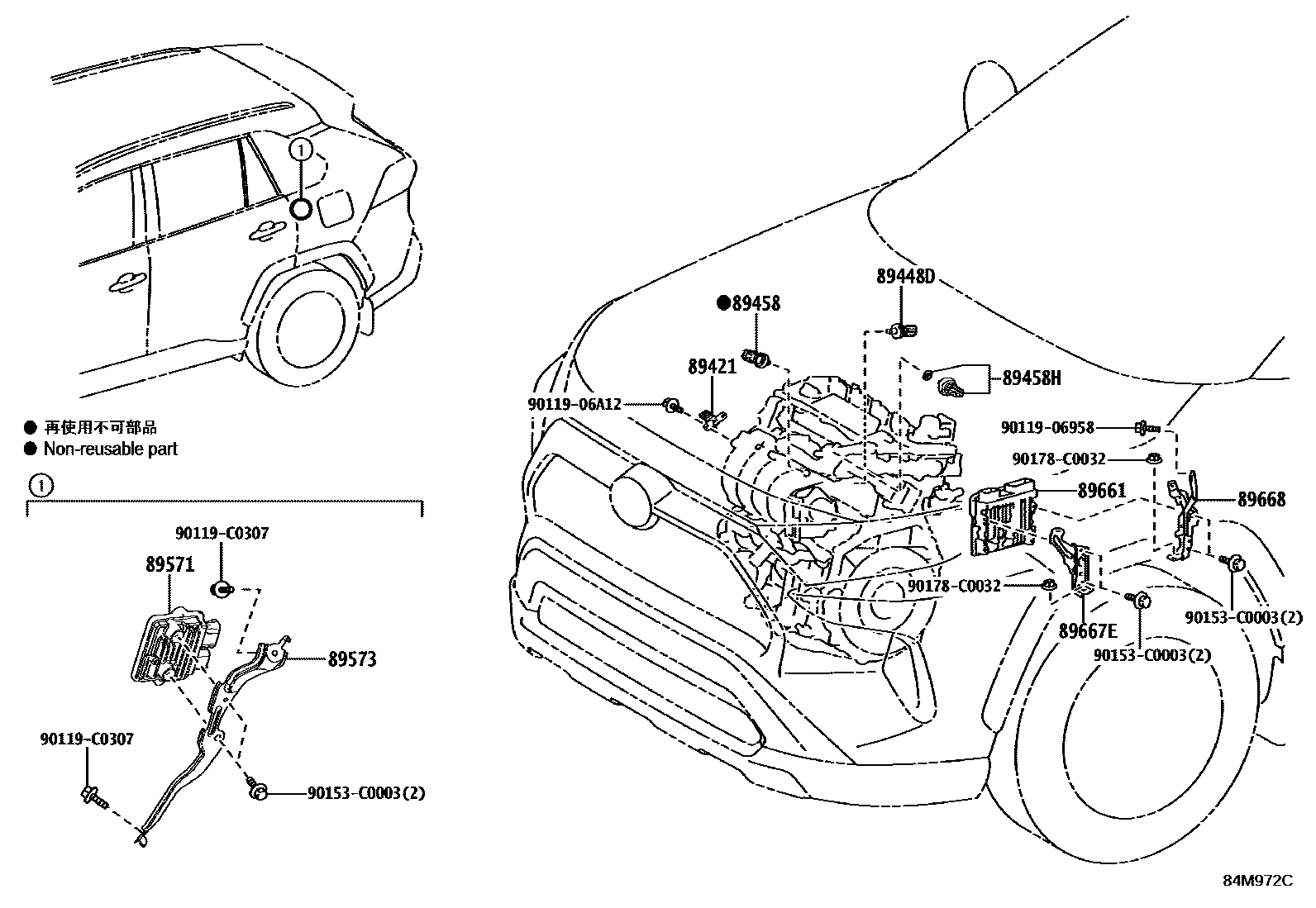

ELECTRONIC FUEL INJECTION SYSTEM

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iAXAP5#202104-202304

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-0R010iAXAP5#202403

(L)

main89448-33010iAXAP5#202403

(J)

main89448-33010iAXAP5#202104-202403

89458SENSOR, FUEL PRESSURE

main89458-0R010iAXAP5#202403

(L)

main89458-33030iAXAP5#202104-202403

main89458-33030iAXAP5#202403

(J)

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-0R020iAXAP5#202403

(L)

main89458-33041iAXAP5#202104-202206

main89458-33042iAXAP5#202207-202403

main89458-33042iAXAP5#202403

(J)

89571COMPUTER, FUEL PUMP CONTROL

main89571-48010iAXAP5#202104-202304

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-0R020iAXAP5#202104-202304

89661COMPUTER, ENGINE CONTROL

main89661-0R650iAXAP5#202104-202304

DENSO,*614

main89661-0RE20iAXAP5#202304-202409

DENSO,*614

main89661-0RJ60iAXAP5#202409

DENSO,*614

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-0R060iAXAP5#202104-202403

sub89667-0R061

main89667-0R061iAXAP5#202404

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-0R060iAXAP5#202104-202304

9011906958

main90119-06958

9011906A12

main90119-06A12

90119C0307

main90119-C0307

90153C0003

main90153-C0003

90178C0032

main90178-C0032

14 parts on this diagram · 1 diagram in section
