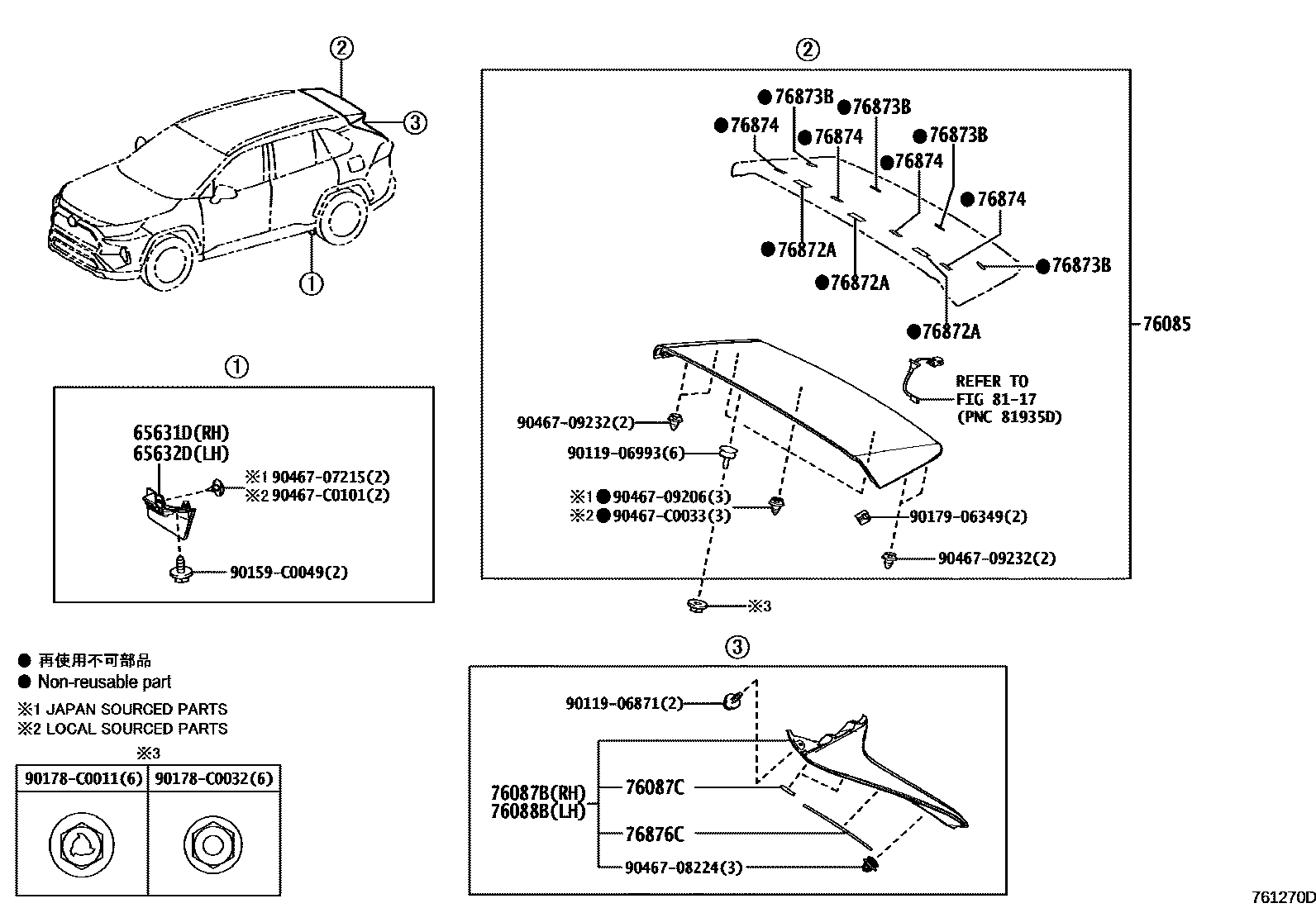

SPOILER & SIDE MUDGUARD

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-0R090iAXAP5#202104-202304

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-0R090iAXAP5#202104-202304

76085SPOILER SUB-ASSY, REAR

main76085-0R903iAXAP5#202104-202304

PAINT REQ.

76087BSPOILER SUB-ASSY, REAR SIDE, RH

main76087-0R020iAXAP54..G202104-202304

main76087-0R040iAXAP5#..M,X202104-202304

76087CPROTECTOR, REAR SIDE SPOILER

main87268-0R060iAXAP5#202104-202304

76088BSPOILER SUB-ASSY, REAR SIDE, LH

main76088-0R020iAXAP54..G202104-202304

main76088-0R040iAXAP5#..M,X202104-202304

76872APROTECTOR, REAR SPOILER, NO.1

main76872-0R060iAXAP5#202104-202304

76873BPROTECTOR, REAR SPOILER, NO.2

main76873-0R070iAXAP5#202104-202304

76874PROTECTOR, REAR SPOILER, NO.3

main76874-0R060iAXAP5#202104-202304

76876CPROTECTOR, REAR SPOILER, NO.4

main76875-0R060iAXAP5#202104-202304

8117

9011906871

main90119-06871

9011906993

main90119-06993

90159C0049

main90159-C0049

90178C0011

main90178-C0011

90178C0032

main90178-C0032

9017906349

main90179-06349

9046707215

main90467-07215

9046708224

main90467-08224

9046709206

main90467-09206

9046709232

main90467-09232

90467C0033

main90467-C0033

90467C0101

main90467-C0101

23 parts on this diagram · 1 diagram in section
