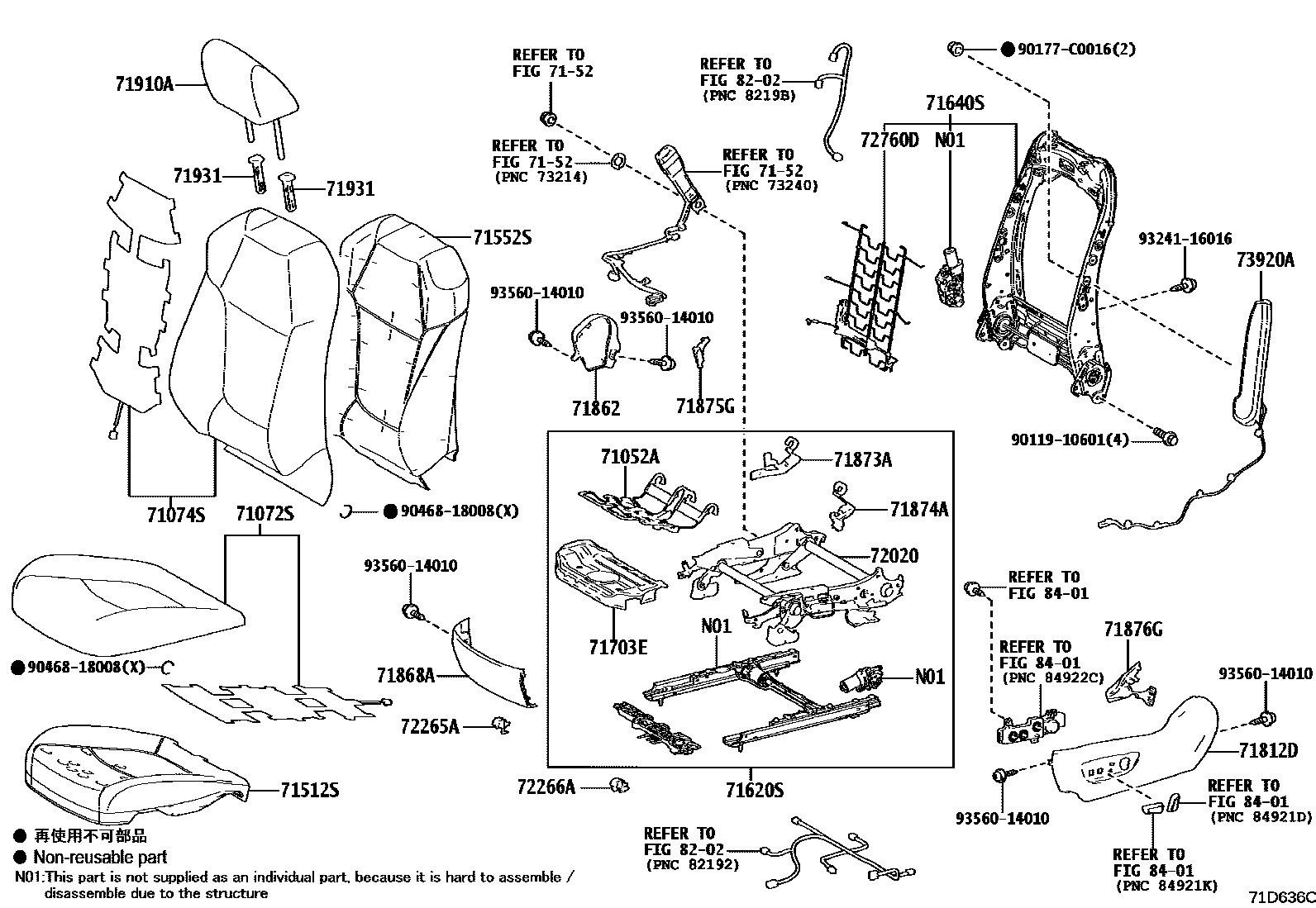

SEAT & SEAT TRACK

0001 1DRIVER SEAT 0002 1DRIVER SEAT 0003 1PASSENGER SEAT 0004 1FRONT SEAT FITTING PARTS 0005 1REAR SEAT 0006 1REAR SEAT FITTING PARTS

71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH

main71051-0R060iAXAP5#202104-202304

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-0R903iAXAP52..X202104-202206

main71072-0R903-C2iAXAP52..X202304

BLACK,TRIM2#

main71072-0R904iAXAP52..X202206-202303

main71072-0R905iAXAP5#..G,M202104-202303

main71072-0R905-C3iAXAP5#..G,M202304

BLACK,TRIM2#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-0R903iAXAP52..X202104-202303

main71074-0R903-C2iAXAP52..X202304

BLACK,TRIM2#

main71074-0R904iAXAP5#..M202104-202303

main71074-0R904-C3iAXAP5#..M202304

BLACK,TRIM2#

main71074-0R905iAXAP54..G202104-202303

main71074-0R905-C4iAXAP54..G202304

BLACK,TRIM2#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-0R190iAXAP52..X202104-202304

main71512-0R200iAXAP5#..G,M202104-202304

7152

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-0R230iAXAP5#202104-202304

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-0R210iAXAP52..X202104-202304

main71620-0R220iAXAP5#..G,M202104-202304

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-0R230iAXAP52..X202104-202304

main71640-0R240iAXAP5#..G,M202104-202304

71703EPANEL SUB-ASSY, FRONT SEAT CUSHION, LH

main71703-0R010iAXAP5#202104-202304

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-0E300-C0iAXAP5#..G,M202207-202304

BLACK,TRIM2#

main71812-0R160-C0iAXAP52..X202104-202304

BLACK,TRIM2#

main71812-0R170-C0iAXAP52..M202104-202208

BLACK,TRIM2#

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-0R110-C0iAXAP5#202104-202304

BLACK,TRIM2#

71868ASHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

main71868-0E140-C0iAXAP5#..M202207-202304

BLACK,TRIM2#

main71868-0R060-C0iAXAP52..M202104-202208

BLACK,TRIM2#

71873ASHIELD, FRONT SEAT CUSHION, LOWER

main71873-0R040iAXAP5#202104-202304

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-0R060iAXAP5#202104-202304

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71875-0R070-C0iAXAP5#202104-202304

BLACK,TRIM2#

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-0E170-C0iAXAP5#..G,M202207-202304

BLACK,TRIM2#

main71876-0R050-C0iAXAP54..G202104-202208

BLACK,TRIM2#

main71876-0R110-C0iAXAP52..X202104-202304

BLACK,TRIM2#

71910AHEADREST ASSY, FRONT SEAT

main71910-0R370-C0iAXAP52..X202104-202410

BLACK,TRIM2#

main71910-0R370-C1iAXAP52..X202410

BLACK,TRIM2#

main71910-0R380-C0iAXAP5#..G,M202104-202304

BLACK,TRIM2#

71931SUPPORT, FRONT SEAT HEADREST

main71930-0R080-C0iAXAP5#202104-202304

W(LOCK),BLACK,TRIM2#

main71931-0R060-C0iAXAP5#202104-202304

W/O(LOCK),BLACK,TRIM2#

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-0R150iAXAP52..X202104-202304

main72020-0R160iAXAP5#..G,M202104-202304

72265COVER, SEAT TRACK UPPER RAIL, RH

main72265-0R030iAXAP5#202104-202302

main72265-0R040iAXAP5#202302-202304

72265ACOVER, SEAT TRACK UPPER RAIL, RH

main72265-0R030iAXAP5#..G,M202104-202304

main72265-0R040iAXAP52..X202104-202304

72266COVER, SEAT TRACK UPPER RAIL, LH

main72266-0R010iAXAP5#202104-202302

main72266-0R020iAXAP52..X202302-202304

72266ACOVER, SEAT TRACK UPPER RAIL, LH

main72266-0R010iAXAP5#..G,M202104-202304

main72266-0R020iAXAP52..X202104-202304

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72760-0R060iAXAP5#..G,M202104-202304

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-0R070iAXAP5#202104-202304

8202

8401

9011910601

main90119-10601¥90

90177C0016

main90177-C0016

9046818008

main90468-18008¥80

9324116016

main93241-16016¥60

9356014010

main93560-14010¥60

32 parts on this diagram · 6 diagrams in section
