FRONT FENDER APRON & DASH PANEL

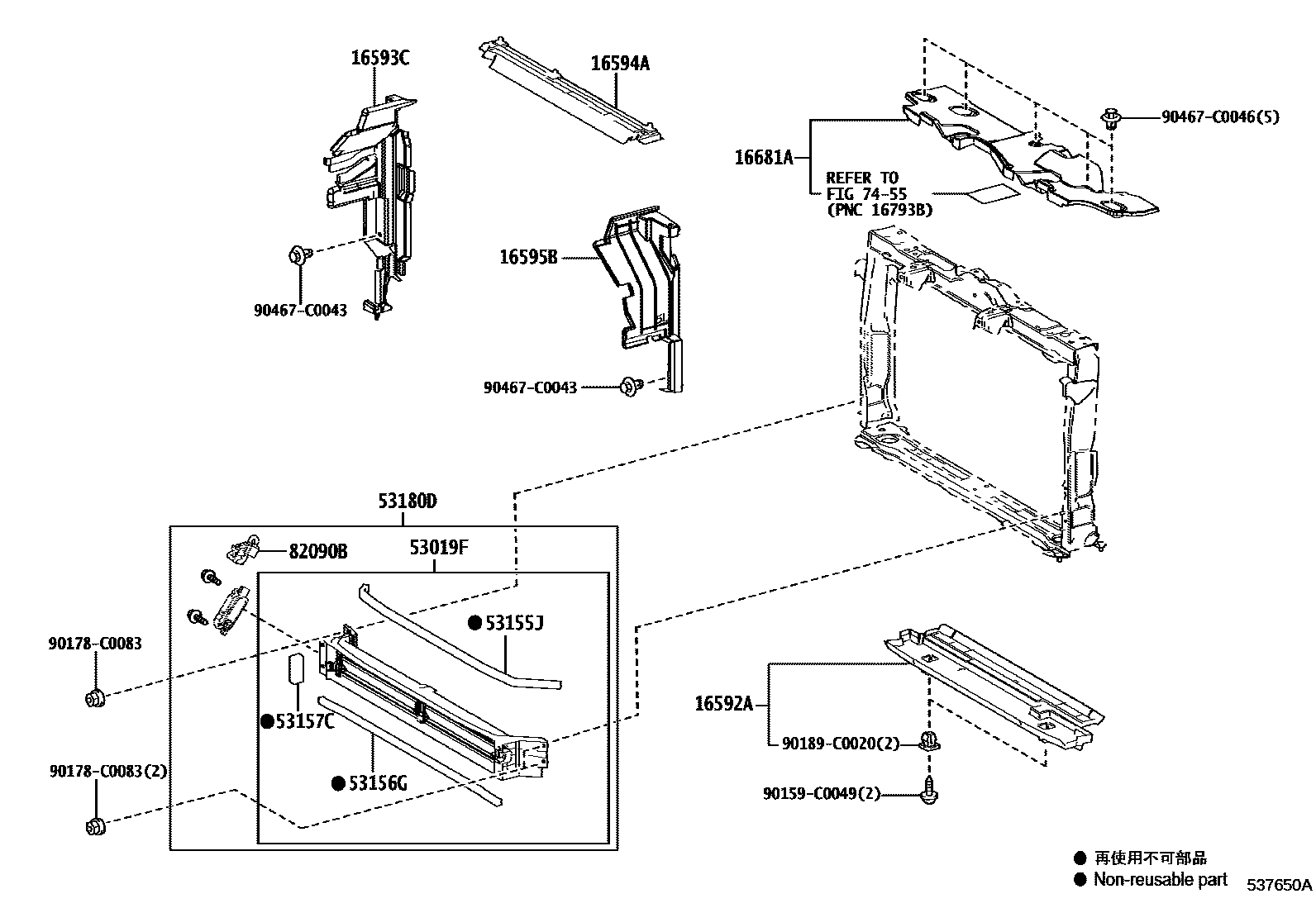

0001 1AIR GUIDE & GRILLE SHUTTER 0002 1RADIATOR SUPPORT & FENDER APR0003 1DASH PANEL

16592AGUIDE, RADIATOR AIR, NO.3

main16592-F0110iA25FFXS..AXAP5#202104-202304

16593CGUIDE, RADIATOR AIR, NO.1

main16593-F0250iA25FFXS..AXAP5#202104-202304

16594AGUIDE, RADIATOR AIR, NO.2

main16594-F0100iA25FFXS..AXAP5#202104-202304

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-F0260iA25FFXS..AXAP5#202104-202304

16681APLATE, RADIATOR UPPER AIR GUIDE

main16681-F0010iA25FFXS..AXAP5#202104-202304

53019FSHUTTER SUB-ASSY, RADIATOR

main53019-0R110iAXAP5#202104-202304

53155JSEAL, RADIATOR GRILLE, NO.1

main53155-0R110iAXAP5#202104-202304

53156GSEAL, RADIATOR GRILLE, NO.2

main53156-0R130iAXAP5#202104-202304

53157CSEAL, RADIATOR GRILLE, NO.3

main53157-0R020iAXAP5#202104-202304

53180DSHUTTER ASSY, RADIATOR

main53180-0R080iAXAP5#202104-202302

sub53180-0R082

main53180-0R081iAXAP5#202303-202311

sub53180-0R082

main53180-0R082iAXAP5#202312

7455

82090BWIRE ASSY, EXTENSION

main82090-0R020iAXAP5#202104-202304

90159C0049

main90159-C0049

90178C0083

main90178-C0083

90189C0020

main90189-C0020

90467C0043

main90467-C0043

90467C0046

main90467-C0046

17 parts on this diagram · 3 diagrams in section
