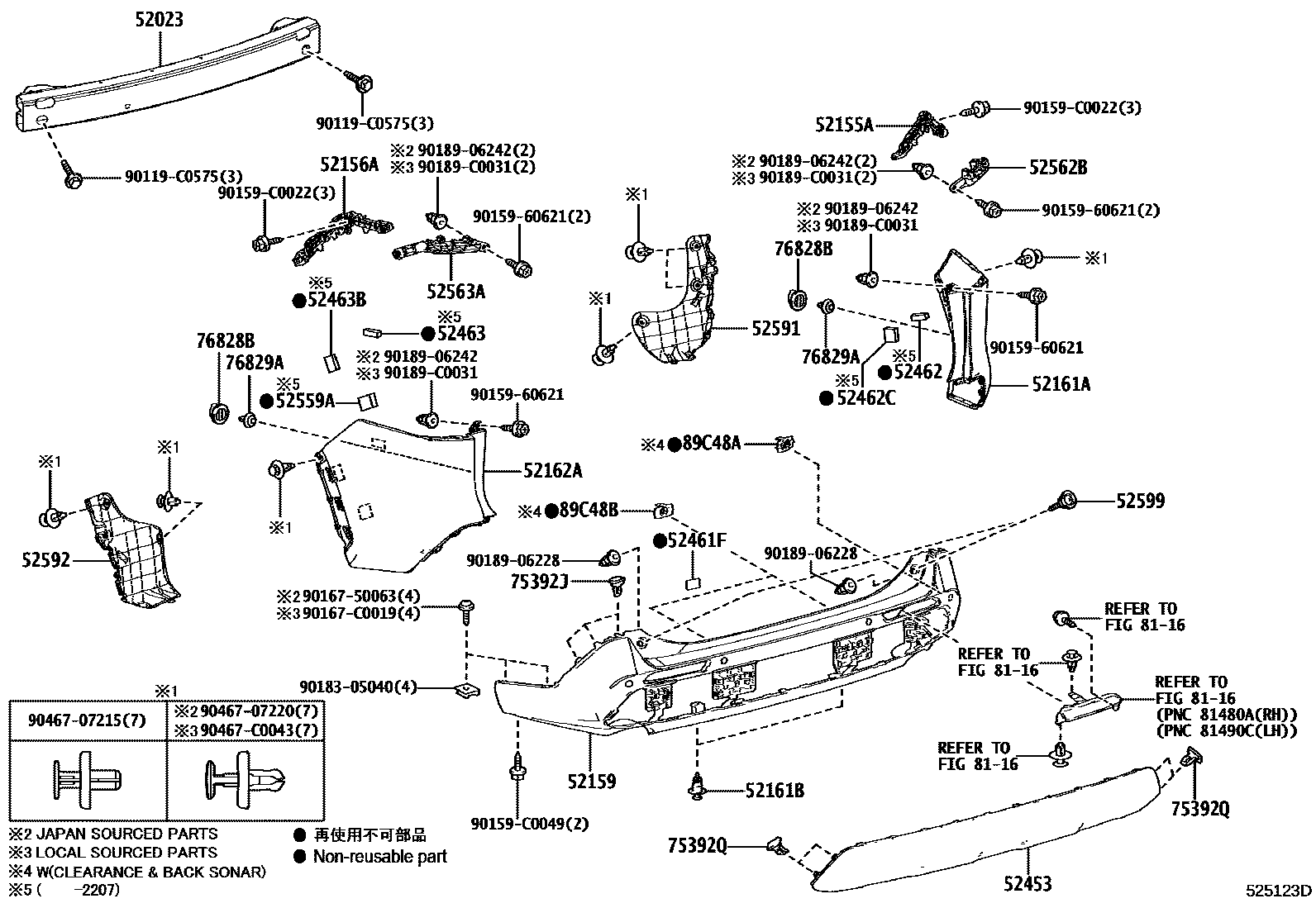

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
NO PAINT REQ.
PAINT REQ.
52161APIECE, REAR BUMPER, RH
52161BPIECE, REAR BUMPER
52162APIECE, REAR BUMPER, LH
52453GUARD, REAR BUMPER, CENTER
BLACK MC.,070 ,089 ,1K6 ,209 ,2KR ,2PU ,2RZ ,2SA ,2SZ ,3U5 ,4V8 ,6X3 ,8W9 ,8X8
BLACK MC.,089 ,1K6 ,209 ,2PU ,2RZ ,2SA ,2SZ ,3U5 ,4V8 ,6X3 ,8W9 ,8X8
52461FPAD, REAR BUMPER
52462PAD, REAR BUMPER, RH
NO PAINT REQ.
52462CPAD, REAR BUMPER, RH
52463PAD, REAR BUMPER, LH
NO PAINT REQ.
52463BPAD, REAR BUMPER, LH
52559APAD, REAR BUMPER FILLER, LH
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
52599STOPPER, REAR BUMPER, UPPER
75392JRETAINER, OUTSIDE MOULDING
75392QRETAINER, OUTSIDE MOULDING, NO.2
76828BRETAINER, BACK DOOR GARNISH
76829ARETAINER, BACK DOOR GARNISH
8116
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
BLACK MC.,089 ,1K6 ,209 ,2PU ,2RZ ,2SA ,2SZ ,3U5 ,4V8 ,6X3 ,8W9 ,8X8,RH
sub89348-0R540
BLACK MC.,089 ,1K6 ,209 ,2PU ,2RZ ,2SA ,2SZ ,3U5 ,4V8 ,6X3 ,8W9 ,8X8,LH
sub89348-0R550
BLACK MC.,089 ,1K6 ,209 ,2PU ,2RZ ,2SA ,2SZ ,3U5 ,4V8 ,6X3 ,8X8,RH
BLACK MC.,089 ,1K6 ,209 ,2PU ,2RZ ,2SA ,2SZ ,3U5 ,4V8 ,6X3 ,8W9 ,8X8,RH
BLACK MC.,089 ,1K6 ,209 ,2PU ,2RZ ,2SA ,2SZ ,3U5 ,4V8 ,6X3 ,8W9 ,8X8,LH
BLACK MC.,089 ,1K6 ,209 ,2PU ,2RZ ,2SA ,2SZ ,3U5 ,4V8 ,6X3 ,8X8,LH
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
BLACK MC.,089 ,1K6 ,209 ,2PU ,2RZ ,2SA ,2SZ ,3U5 ,4V8 ,6X3 ,8W9 ,8X8
sub89348-0R510
BLACK MC.,089 ,1K6 ,209 ,2PU ,2RZ ,2SA ,2SZ ,3U5 ,4V8 ,6X3 ,8W9 ,8X8
BLACK MC.,089 ,1K6 ,209 ,2PU ,2RZ ,2SA ,2SZ ,3U5 ,4V8 ,6X3 ,8X8
90119C0575
main90119-C0575
9015960621
main90159-60621
90159C0022
main90159-C0022
90159C0049
main90159-C0049
9016750063
main90167-50063
90167C0019
main90167-C0019
9018305040
main90183-05040
9018906228
main90189-06228
9018906242
main90189-06242
90189C0031
main90189-C0031
9046707215
main90467-07215
9046707220
main90467-07220
90467C0043
main90467-C0043
39 parts on this diagram · 1 diagram in section
