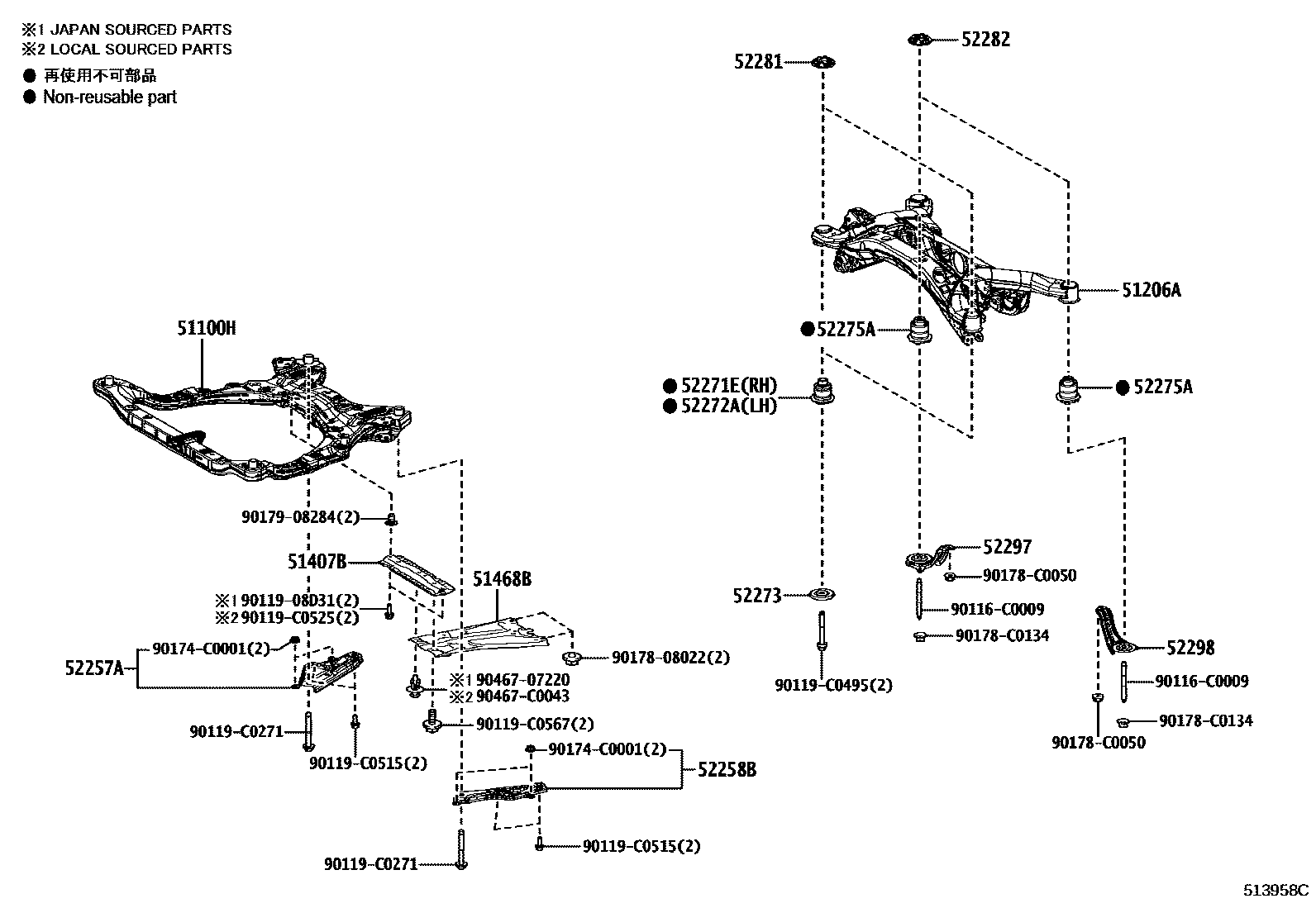

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1SUSPENSION CROSSMEMBER 0003 1UNDER COVER

51100HFRAME ASSY, FRONT

main51100-0R021iAXAP5#202104-202307

sub51100-0R022

main51100-0R022iAXAP5#202308

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-0R080iAXAP54202104-202304

main51206-0R120iAXAP52202104-202304

51407BBRACKET SUB-ASSY, ENGINE UNDER COVER

main51401-0R030iAXAP5#202104-202304

51468BINSULATOR, ENGINE UNDER COVER HEAT

main51468-0R040iAXAP5#202104-202304

52257ABRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-0R050iAXAP5#202104-202304

52258BBRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-0R050iAXAP5#202104-202304

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-0R020iAXAP5#202104-202304

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52271-0R020iAXAP5#202104-202304

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-0R060iAXAP5#202104-202304

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-0R020iAXAP5#202104-202304

RH

main52276-0R020iAXAP5#202104-202304

LH

52281CUSHION, DIFFERENTIAL SUPPORT MEMBER

main52281-0R020iAXAP5#202104-202304

52282STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER

main52282-0R020iAXAP5#202104-202304

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-0R070iAXAP5#202104-202304

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52297-0R070iAXAP5#202104-202304

90116C0009

main90116-C0009

9011908D31

main90119-08D31

90119C0271

main90119-C0271

90119C0495

main90119-C0495

90119C0515

main90119-C0515

90119C0525

main90119-C0525

90119C0567

main90119-C0567

90174C0001

main90174-C0001

9017808022

main90178-08022

90178C0050

main90178-C0050

90178C0134

main90178-C0134

9017908284

main90179-08284

9046707220

main90467-07220

90467C0043

main90467-C0043

28 parts on this diagram · 3 diagrams in section
