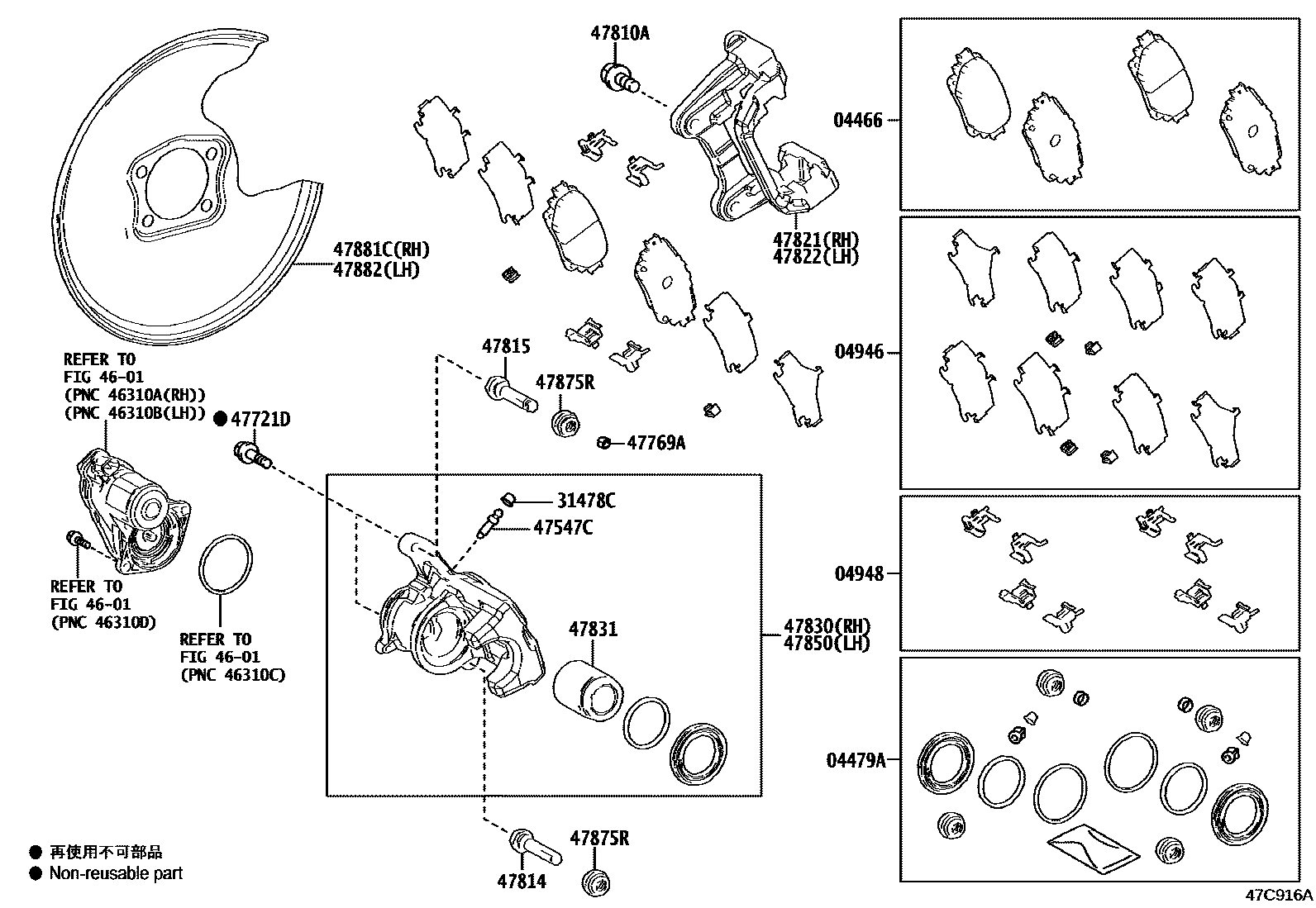

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-0R010iAXAP5#202207-202304

MARK D6361-EF

main04466-F4020iAXAP5#202104-202206

MARK NBK D6361

sub04466-30410

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-06401iAXAP5#202104-202206

main04479-0R040iAXAP5#202207-202303

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-02200iAXAP5#202304

main04946-F4020iAXAP5#202104-202206

04948FITTING KIT, DISC BRAKE, REAR

main04948-02170iAXAP5#202207-202304

main04948-12070iAXAP5#202104-202206

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-0N010×2iAXAP5#202410

main31478-30010×2iAXAP5#202104-202207

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2iAXAP5#202104-202304

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603×4iAXAP5#202104-202207

*8-1.00PX23-12.5

sub90016-AA614

main90016-AA612×4iAXAP5#202207-202304

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-0P010×2iAXAP5#202410

main47769-50010×2iAXAP5#202104-202207

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-C0361×4iAXAP5#202104-202304

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-06180×2iAXAP5#202410

main47814-78010×2iAXAP5#202104-202207

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-06180×2iAXAP5#202304-202409

main47815-78010×2iAXAP5#202104-202207

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-0R110iAXAP5#202207-202304

main47821-42110iAXAP5#202104-202207

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-0R110iAXAP5#202304-202409

main47822-42100iAXAP5#202104-202207

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-0R110iAXAP5#202207-202304

main47830-42100iAXAP5#202104-202207

47831PISTON, REAR DISC BRAKE

main47831-0R100×2iAXAP5#202207-202302

main47831-0R101×2iAXAP5#202302-202304

main47831-42100×2iAXAP5#202104-202207

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-0R110iAXAP5#202207-202304

main47850-42090iAXAP5#202104-202207

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-07030×4iAXAP5#202304-202409

main47875-33270×4iAXAP5#202104-202207

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-0R010iAXAP5#202104-202304

47882COVER, DISC BRAKE DUST, REAR LH

main47882-0R010iAXAP5#202104-202304

20 parts on this diagram · 1 diagram in section
