HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL 0002 1AIR DUCT 0004 1AIR DUCT 0005 1SENSOR 0006 1SENSOR

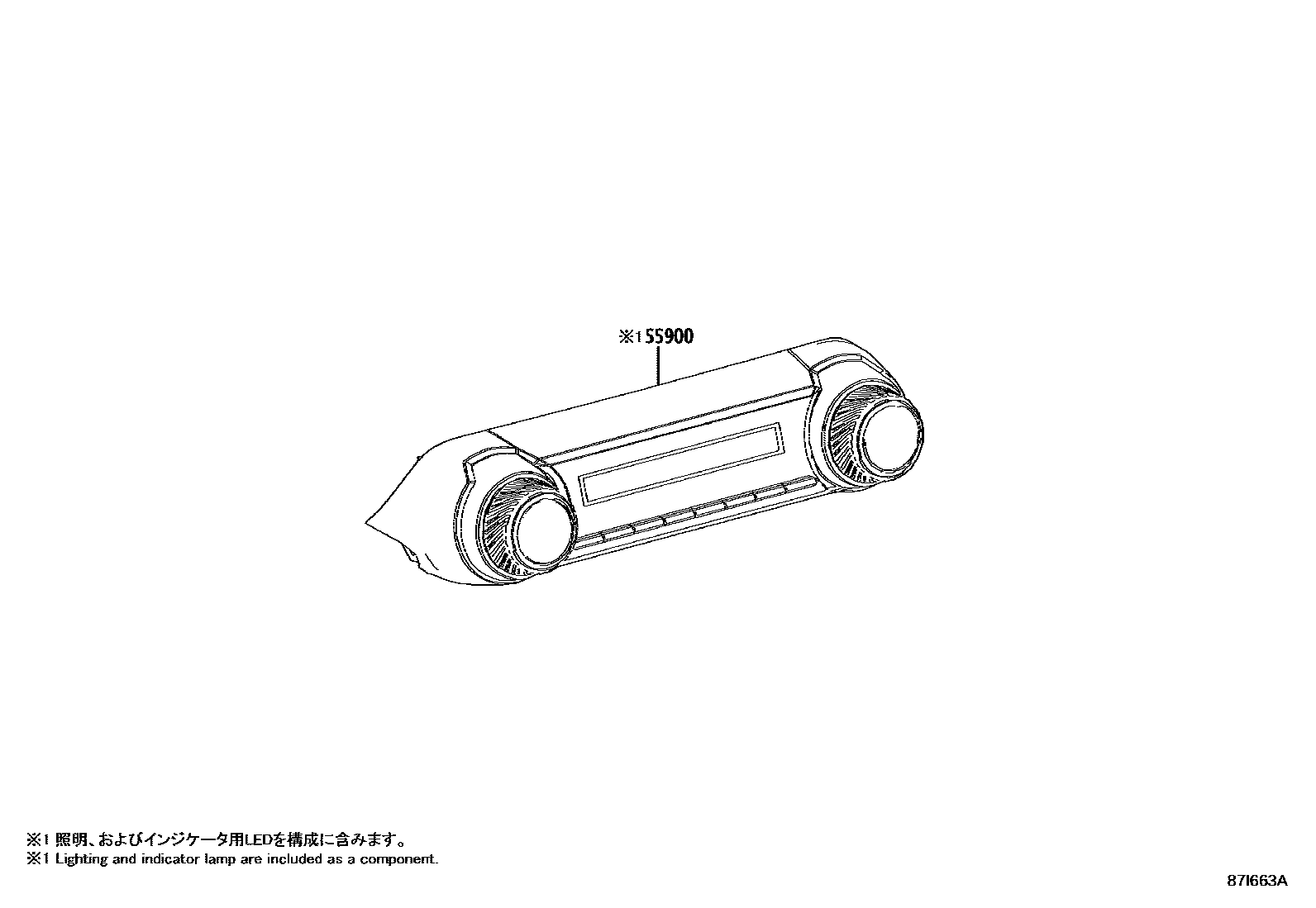

55900CONTROL ASSY, AIR CONDITIONER

main55900-0R130iAXAH52,MXAA5#..A202004-202111

sub55900-0R131

main55900-0R131iAXAH52,MXAA5#..A202112-202303

main55900-0R230iMXAA52..X202004-202111

sub55900-0R231

main55900-0R231iMXAA52..X202112-202303

main55900-0R240iMXAA52..G,M;AXAH5#,MXAA54..G,M,X202004-202111

sub55900-0R241

main55900-0R241iMXAA52..G,M;AXAH5#,MXAA54..G,M,X202112-202303

main55900-0R340iAXAL5#,MXAA5#..G202304-202405

main55900-0R380iMXAA52..X202304-202405

main55900-0R390iAXAL52..X202304-202405

main55900-0R510iAXAL5#,MXAA5#..M202405

1 parts on this diagram · 5 diagrams in section
