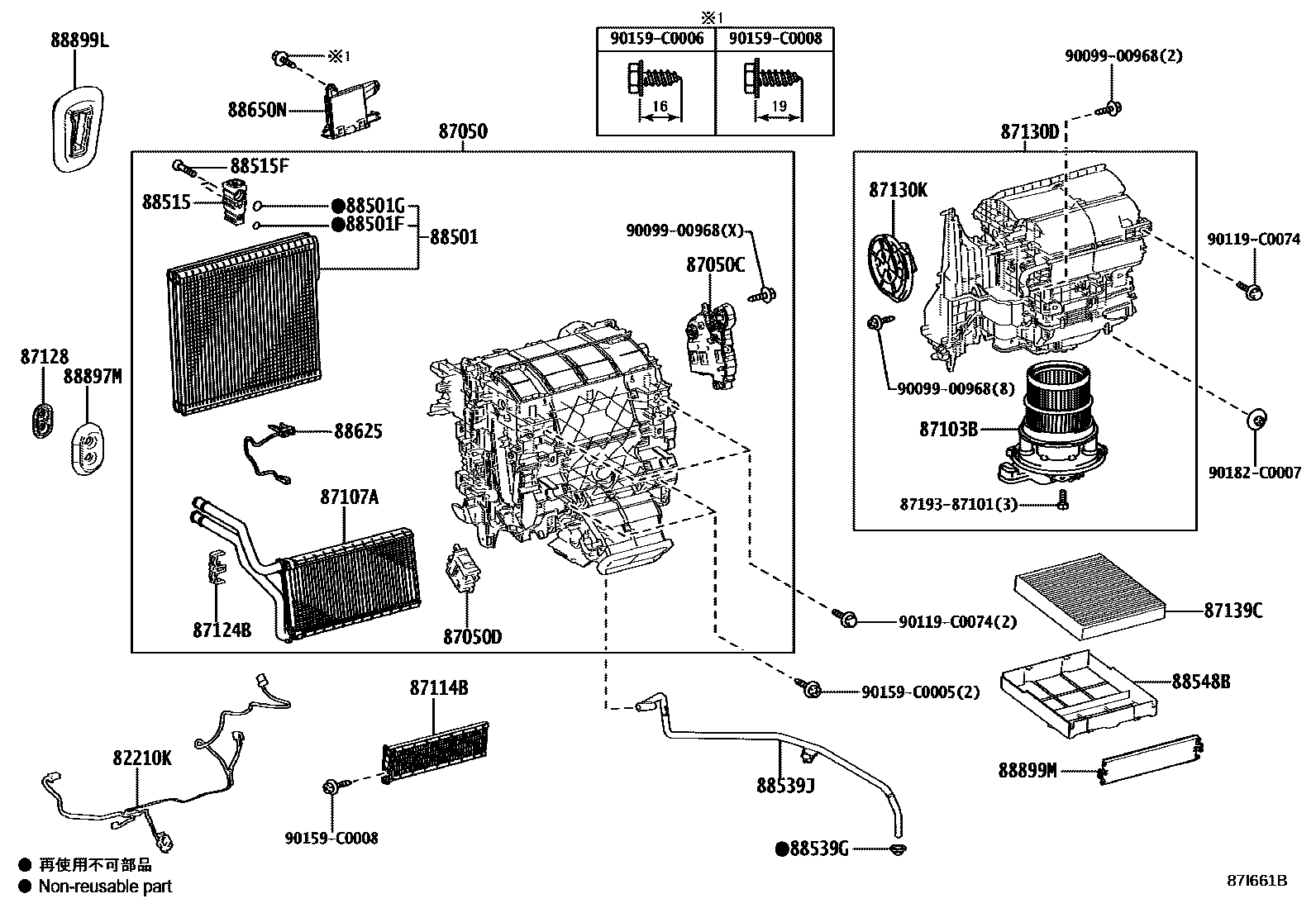

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1 0004 1 0005 1

82210KHARNESS ASSY, AIR CONDITIONER

main82212-06210iAXAH5#,MXAA5#202004-202303

main82212-0E150iAXAL52..X202304-202405

87050RADIATOR ASSY, AIR CONDITIONER

main87050-06A20iMXAA5#..A,G,M202004-202012

main87050-06A41iAXAH5#202004-202303

main87050-06B70iMXAA5#..A,G,M202012-202303

main87050-0E440iMXAA5#..G,M202304-202405

main87050-0E450iAXAL52..X202304-202405

main87050-0R240iMXAA52..X202004-202109

main87050-0R280iMXAA52..X202109-202303

main87050-0R480iMXAA52..X202304-202405

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-06370iAXAH5#,MXAA54;MXAA52..A,G,M202004-202303

main87106-0E220iAXAL52..X202304-202405

main87106-42230iMXAA52..X¥0202304-202405

main87106-F4140iMXAA52..X202004-202303

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-06380iAXAL52..X202004-202405

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-06130iAXAH5#,MXAA5#202004-202303

main87103-0E110iMXAA52;AXAL5#,MXAA54..G,M202304-202405

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-06110iAXAL52..X202004-202405

87114BCOVER, HEATER

main87114-06060iMXAA52;AXAL5#,MXAA54..G,M202004-202405

87124BCLAMP, HEATER

main87124-06110iMXAA52;AXAL5#,MXAA54..G,M202004-202405

87128GROMMET, HEATER

main87128-0A040iMXAA52;AXAL5#,MXAA54..G,M202307-202405

(L)

main87128-28010iAXAL5#,MXAA5#¥400202004-202307

main87128-28010iAXAL52..X¥400202307-202405

(J)

87130DBLOWER ASSY

main87130-06420iAXAH5#,MXAA5#202004-202303

main87130-0E060iMXAA52;AXAL5#,MXAA54..G,M202304-202405

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-06390iAXAH5#,MXAA5#202004-202303

main87106-0E230iMXAA52;AXAL5#,MXAA54..G,M202304-202405

87139CFILTER, CLEAN AIR

main87139-02270iAXAH5#,MXAA5#202101-202306

STANDARD,OE PART

sub87139-06170

main87139-06150iAXAH5#,MXAA5#202004-202101

STANDARD,OE PART

main87139-06170iAXAL52..X202307-202405

STANDARD,OE PART

main87139-58010iMXAA52;AXAL5#,MXAA54..G,M¥4,000202101-202405

DEODORANT FILTER

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-06460iMXAA5#..A,G,M202004-202109

main88501-06470iAXAH5#202004-202405

main88501-0E240iMXAA5#..G,M202012-202405

main88501-33340iMXAA52..X202304-202405

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90099-14120iMXAA52;AXAL5#,MXAA54..G,M¥0202004-202405

ID=10.8,OD=15.6

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iAXAL52..X202004-202405

ID=13.4,OD=18.2

88515VALVE, COOLER EXPANSION

main88515-06150iAXAL52..X202012-202405

main88515-06180iMXAA5#..A,G,M202004-202012

main88515-0R030iMXAA52..X202004-202109

main88515-0R040iAXAH5#202004-202303

sub88515-06150

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542iMXAA52;AXAL5#,MXAA54..G,M¥120202004-202405

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main88888-06030iMXAA52;AXAL5#,MXAA54..G,M202004-202405

88539JHOSE, DRAIN COOLER

main88539-0R070iAXAL52..X202004-202405

88548BCASE, AIR FILTER

main88899-02490iAXAH5#,MXAA5#202101-202303

sub88899-02491

main88899-06160iAXAH5#,MXAA5#202004-202101

88625THERMISTOR, COOLER, NO.1

main88620-06070iMXAA5#..A,G,M202004-202109

main88620-06080iMXAA52..X202004-202405

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-0R320iAXAH5#,MXAA5#..A,M,X202112-202303

main88650-0R330iAXAH52,MXAA5#..G202112-202303

main88650-0R380iAXAL52..X202304-202405

main88650-0R410iAXAL5#,MXAA5#..G202304-202405

main88650-0R430iAXAH5#,MXAA5#..A,M,X202004-202112

main88650-0R440iAXAH52,MXAA5#..G202004-202112

main88650-0R560iMXAA52..M,X;AXAL5#,MXAA54..M202405

main88650-0R570iAXAL5#,MXAA5#..G202405

88897MGROMMET (FOR HEATER PIPE)

main87128-06020iAXAH5#,MXAA5#202004-202405

88899LPARTS, COOLING UNIT

main88899-06290iMXAA52;AXAL5#,MXAA54..G,M202004-202405

main88899-33090iMXAA5#..A,G,M202004-202012

88899MPLATE, COVER(FOR AIR FILTER)

main88899-06110iAXAL52..X202004-202405

8719387101

main87193-87101¥0

9009900968

main90099-00968

90119C0074

main90119-C0074

90159C0005

main90159-C0005

90159C0006

main90159-C0006

90159C0008

main90159-C0008

90182C0007

main90182-C0007

32 parts on this diagram · 5 diagrams in section
