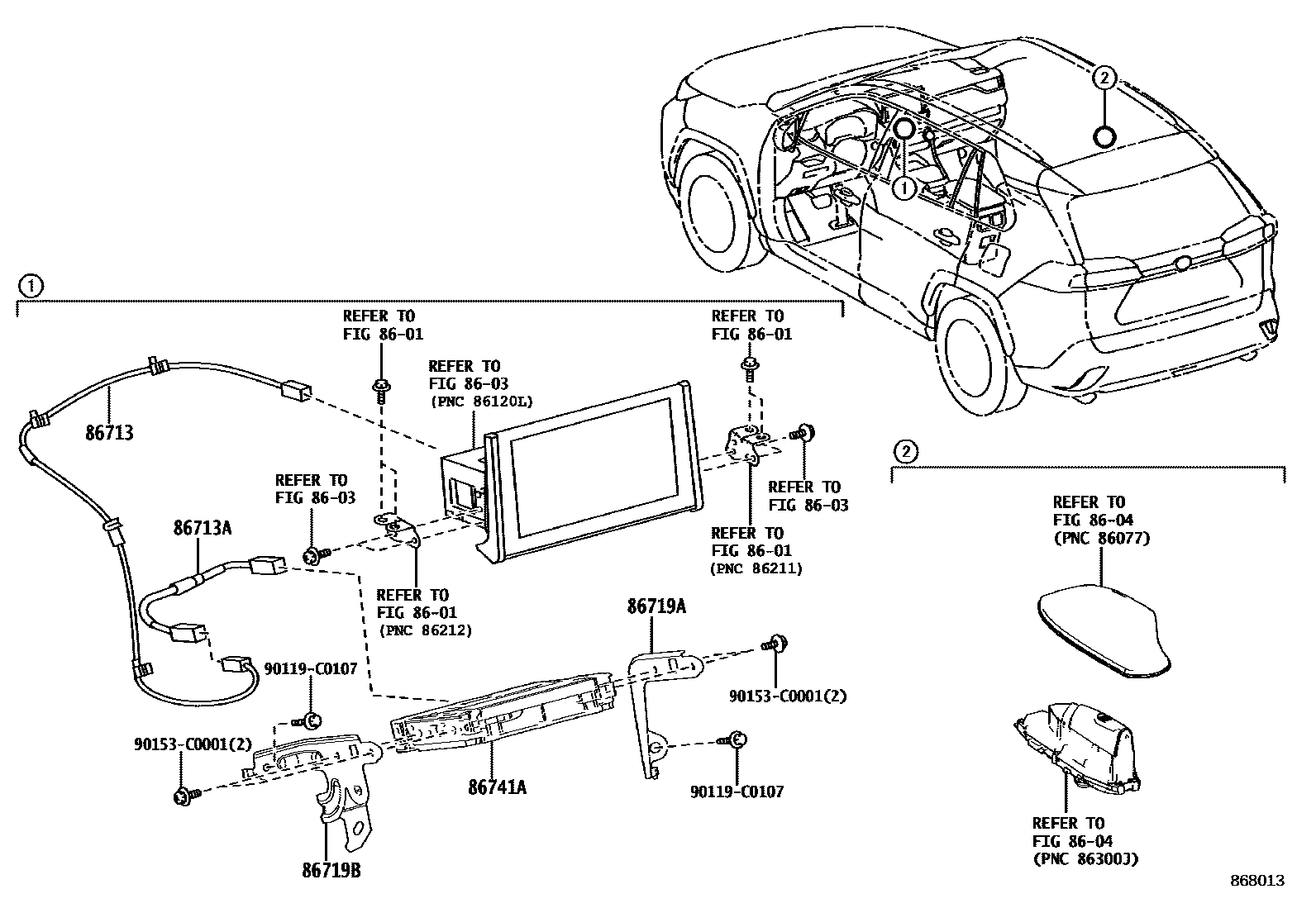

TELEPHONE & MAYDAY

0001 1 0002 1 0003 1 0004 1

8601

8603

8604

86713WIRE, TELEPHONE COMPUTER

main86713-0R110iAXAL52..X202304-202405

main86713-YY070iAXAH52,MXAA5#..G202004-202303

AUDIO-AVN & 6SPEAKER ACCESSARY SILVER

main86713-YY070iAXAH52,MXAA5#..G202004-202303

AUDIO-AVN & 6SPEAKER GUN METALLIC

main86713-YY070iAXAH5#,MXAA5#..M202207-202303

BLACK EDITION

main86713-YY070iAXAH5#,MXAA5#..M202207-202303

CORE & PACKAGE

86713AWIRE, TELEPHONE COMPUTER, (TO TRANSCEIVER)

main86713-0R120iMXAA52;AXAL5#,MXAA54..G,M202304-202405

main86713-YY080iAXAH5#,MXAA5#..M202207-202303

BLACK EDITION

main86713-YY080iAXAH5#,MXAA5#..M202004-202303

AUDIO-AVN & 6SPEAKER ACCESSARY SILVER

main86713-YY080iAXAH52,MXAA5#..G202004-202303

AUDIO-AVN & 6SPEAKER GUN METALLIC

main86713-YY080iAXAH5#,MXAA5#..M202207-202303

CORE & PACKAGE

86719ABRACKET, TELEPHONE NO.1

main86457-0R060iAXAH5#,MXAA5#202004-202112

main86719-0R040iMXAA52;AXAL5#,MXAA54..G,M202112-202405

86719BBRACKET, TELEPHONE NO.2

main86457-0R050iAXAH5#,MXAA5#202004-202112

main86719-0R030iAXAH5#,MXAA5#202112-202405

86741ATRANSCEIVER, TELEMATICS

main86741-02051iAXAH5#,MXAA5#202004-202112

sub86741-02100

main86741-06100iAXAH5#,MXAA5#202112-202303

main86741-0R070iMXAA52;AXAL5#,MXAA54..G,M202304-202405

main86741-0R100iMXAA52;AXAL5#,MXAA54..G,M202405

90119C0107

main90119-C0107

90153C0001

main90153-C0001

10 parts on this diagram · 4 diagrams in section
