CAMERA & REAR MONITOR DISPLAY

86790BCAMERA ASSY, TELEVISION, FR

main86790-0R150iAXAH52,MXAA5#..A202004-202303

main86790-0R560iAXAL52,MXAA5#..M202405

MID & PACKAGE

86790DCAMERA ASSY, TELEVISION, RR

main86790-0R140iAXAH5#,MXAA5#..A,G,M202004-202005

MARK 86790-0R140

main86790-0R220supersedes 86790-0R220iAXAH52,MXAA5#..A,G202005-202303

MARK 86790-0R220

main86790-0R550iAXAL52,MXAA5#..M202405

MID & PACKAGE

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-0R170iAXAH52,MXAA5#..A202004-202303

main86790-0R580iAXAL52,MXAA5#..M202405

MID & PACKAGE

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-0R160iAXAH52,MXAA5#..A202004-202303

main86790-0R570iAXAL52,MXAA5#..M202405

MID & PACKAGE

86792CCOMPUTER, PARKING ASSIST

main86792-0R040iAXAH52,MXAA5#..A202004-202005

main86792-0R041iAXAH52,MXAA5#..A202006-202103

main86792-0R042iAXAH52,MXAA5#..A202104-202303

main86792-0R160iAXAL5#,MXAA5#..M202304-202405

MID & PACKAGE

main86792-0R170iAXAL52,MXAA5#..M202405

MID & PACKAGE

867C0CAMERA ASSY, INNER MIRROR

main867C0-0R030iAXAH52,MXAA5#..A202004-202303

9015960621

main90159-60621

90159C0022

main90159-C0022

9016750063

main90167-50063

90167C0019

main90167-C0019

90178C0011

main90178-C0011

9018906244

main90189-06244

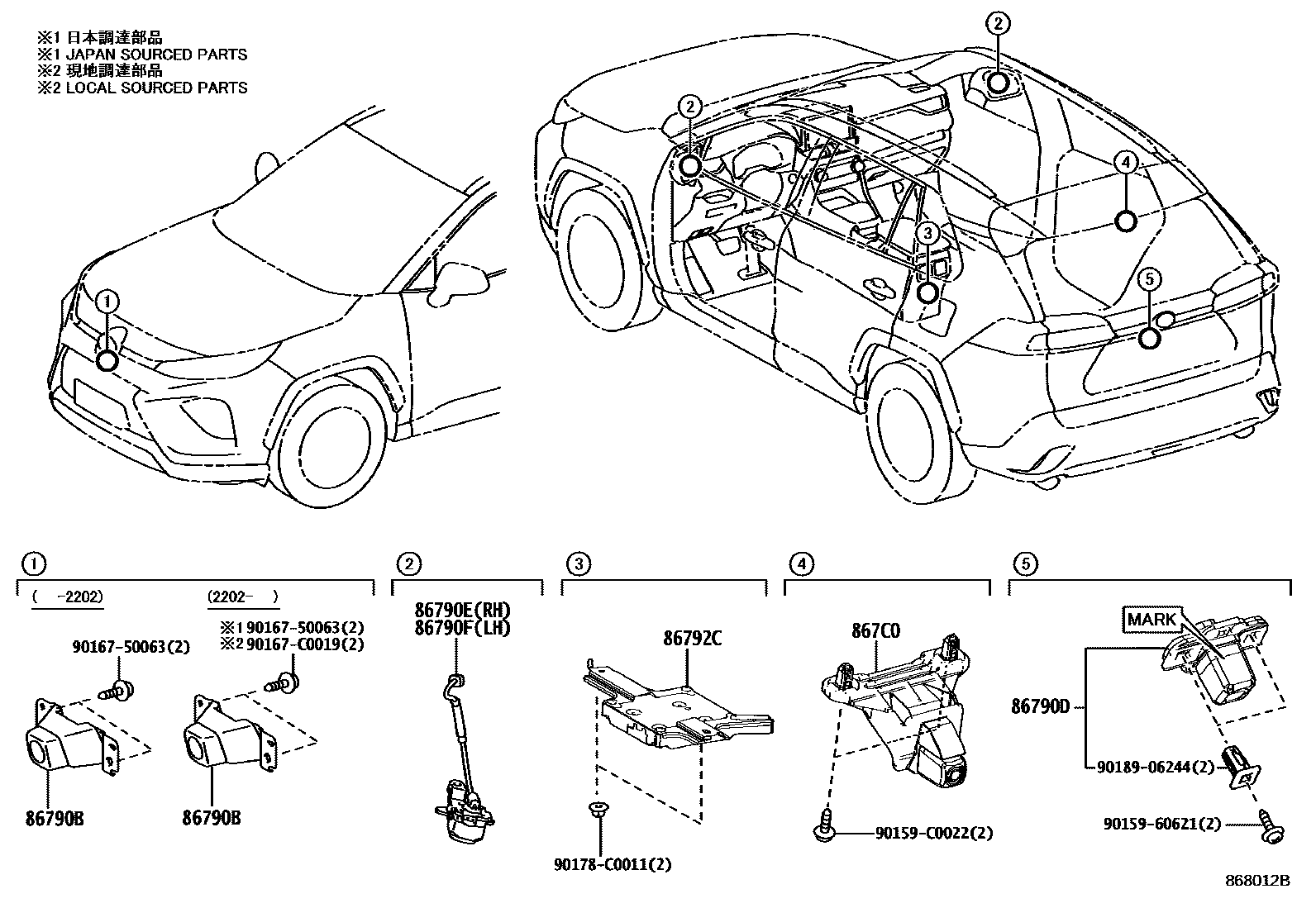

12 parts on this diagram · 1 diagram in section
