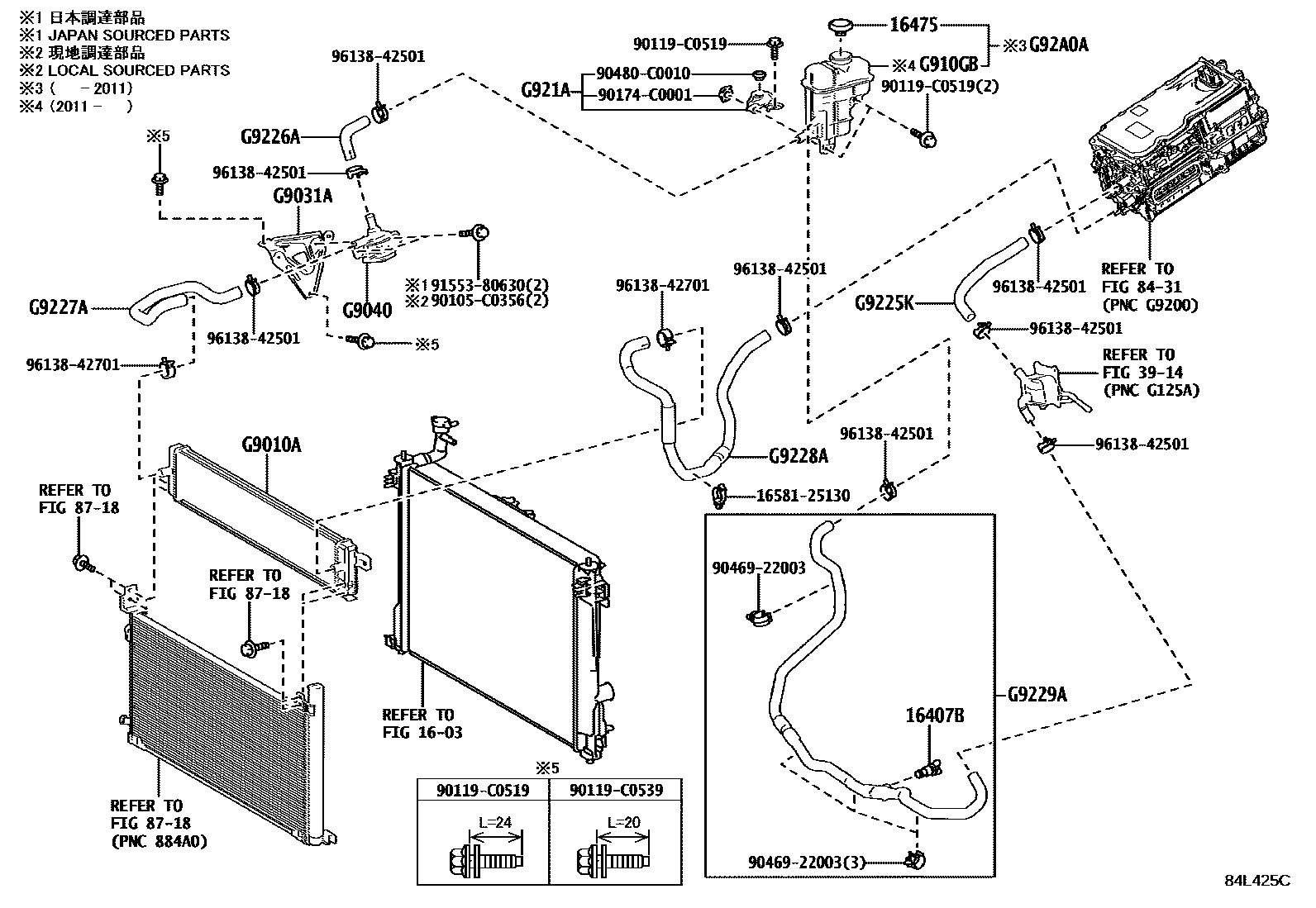

INVERTER COOLING

0001 1 0002 1

1603

16407BCOCK SUB-ASSY, RADIATOR DRAIN

main16407-64010iA25..AXAH5#¥380202004-202111

16475CAP, RESERVE TANK

main16475-0T081iA25..AXAL5#..G,M202011-202405

LOCAL SOURCED PARTS

main16475-28140iA25..AXAL5#..G,M¥1,200202011-202405

JAPAN SOURCED PARTS

main16475-28140iA25..AXAH5#¥1,200202004-202011

3914

8431

8718

G9010ARADIATOR ASSY

mainG901042030iAXAH5#202004-202111

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG91410E050iAXAL5#..G,M202111-202405

mainG91410R060iAXAH5#202004-202110

subG9141-0E050

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904008010iAXAL5#..G,M202304-202405

(L)

mainG90400R030iAXAH5#202111-202303

LOCAL SOURCED PARTS

mainG90400R080iAXAH5#202012-202104

LOCAL SOURCED PARTS

mainG90400R090iAXAH5#202104-202111

LOCAL SOURCED PARTS

mainG904042010iAXAH5#202004-202012

mainG904042010iAXAH5#202012-202111

JAPAN SOURCED PARTS

mainG904042020iAXAH5#202111-202303

JAPAN SOURCED PARTS

mainG904048050iAXAL5#..G,M202304-202405

(J)

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G0R030iAXAH5#202011-202012

mainG910G0R031iAXAL5#..G,M202012-202405

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H20R030iAXAL5#..G,M202004-202405

G9225KHOSE, INVERTER COOLING, NO.1

mainG92250R030iAXAL5#..G,M202004-202405

G9226AHOSE, INVERTER COOLING, NO.2

mainG92260R030iAXAH5#202004-202111

mainG92260R050iAXAL5#..G,M202111-202405

G9227AHOSE, INVERTER COOLING, NO.3

mainG92270E040iAXAL5#..G,M202111-202405

mainG92270R030iAXAH5#202004-202111

G9228AHOSE, INVERTER COOLING, NO.4

mainG92280E050iAXAL5#..G,M202111-202405

mainG92280R030iAXAH5#202004-202111

G9229AHOSE, INVERTER COOLING, NO.5

mainG92290E050iAXAL5#..G,M202111-202405

mainG92290R030iAXAH5#202004-202111

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H00R040iAXAH5#202004-202011

1658125130CLAMP, HOSE(FOR WATER HOSE)

main16581-25130¥260

90105C0356

main90105-C0356

90119C0519

main90119-C0519

90119C0539

main90119-C0539

90174C0001

main90174-C0001

9046922003

main90469-22003¥110

90480C0010

main90480-C0010

9155380630

main91553-80630¥60

9613842501

main96138-42501¥180

9613842701

main96138-42701¥200

27 parts on this diagram · 2 diagrams in section
