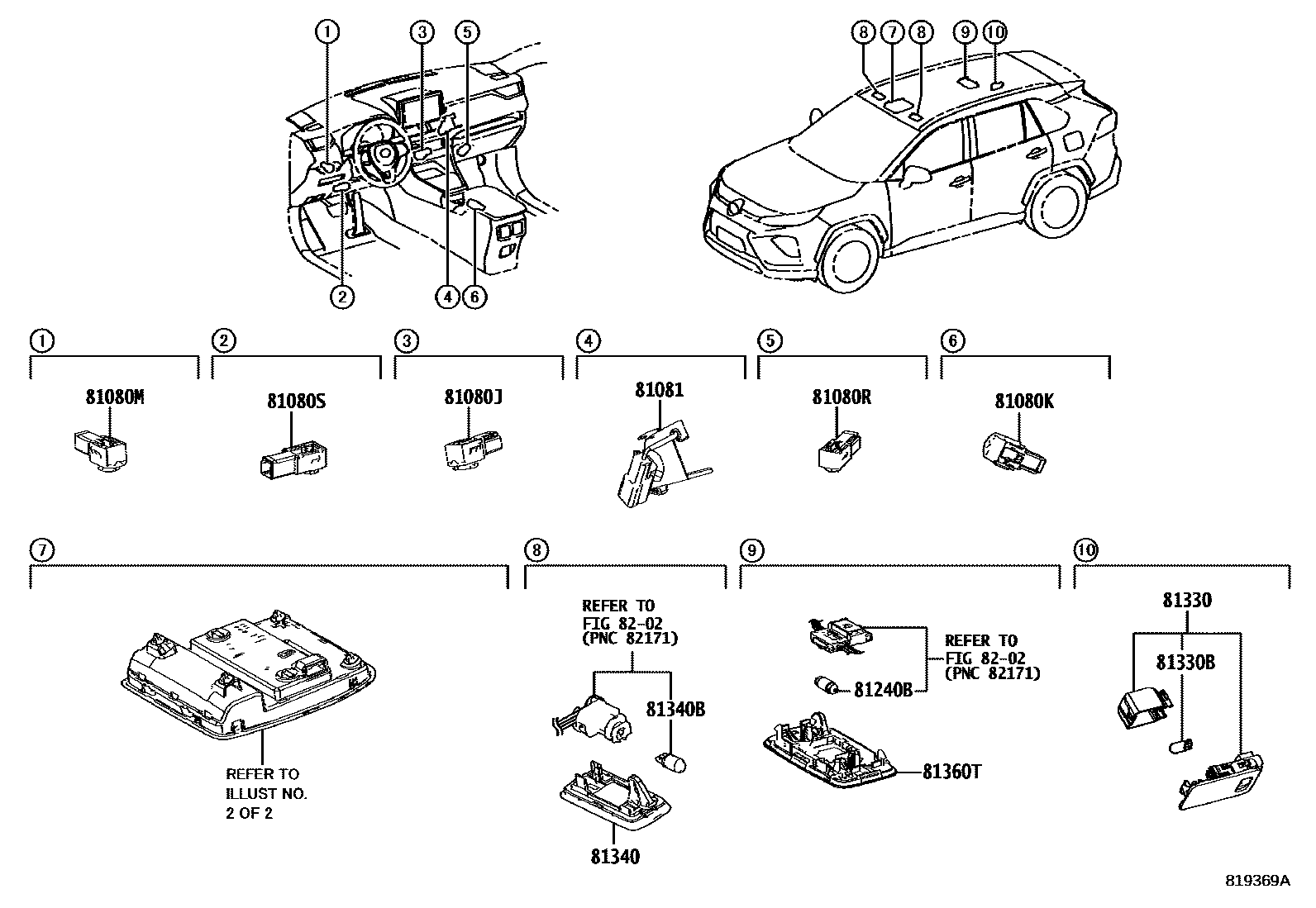

INTERIOR LAMP

0001 1 0002 1 0003 1 0004 1

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-42040iAXAL5#,MXAA5#..G202405

81080KLAMP ASSY, CONSOLE BOX ILLUMINATION

main81080-42040iAXAL5#,MXAA5#..G202405

81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-42040iAXAL5#,MXAA5#..G202405

81080RLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-06180iAXAL5#,MXAA5#..G202405

81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-06180iAXAL5#,MXAA5#..G202405

81081LAMP SUB-ASSY, INTERIOR ILLUMINATION

main81081-0R020iAXAL5#,MXAA5#..G202405

81240BBULB, ROOM LAMP, NO.1

main90981-14011iAXAH5#,MXAA5#202004-202303

12V 8W

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-58010iAXAH5#,MXAA5#202004-202303

main81360-0R030iMXAA52;AXAL5#,MXAA54..G,M202304-202405

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050iAXAH5#,MXAA5#202004-202303

12V 5W

81340LAMP ASSY, VANITY

main81340-0E010×2iMXAA52;AXAL5#,MXAA54..G,M202405

main81340-0F010×2iAXAH5#,MXAA5#202004-202303

81340BBULB (FOR VANITY LAMP)

main90981-11062×2iAXAH5#,MXAA5#202004-202303

12V 8W

81360TLAMP ASSY, SPOT

main81240-0E020-B0iMXAA52..X202304-202405

LT.GRAY,TRIM0#,1#,2#

main81360-42021-B0iAXAH5#,MXAA5#..A,G,M202004-202303

LT.GRAY,TRIM1#,2#

8202

13 parts on this diagram · 4 diagrams in section
