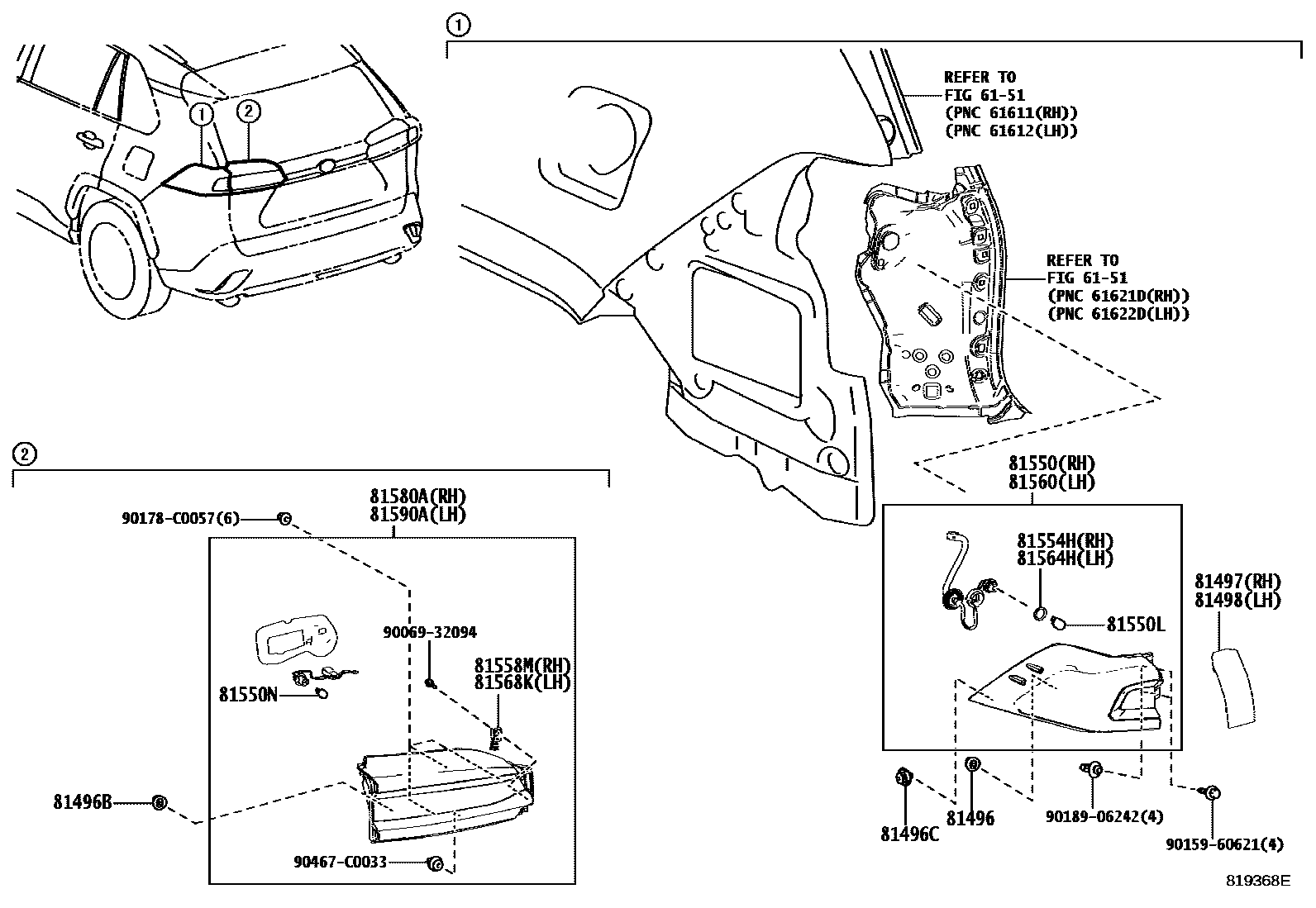

REAR COMBINATION LAMP

0001 1 0002 1

6151

81496GUIDE, REAR COMBINATION LAMP

main81496-0D030iAXAH5#,MXAA5#202004-202405

81496BGUIDE, REAR LAMP

main81496-0D030iMXAA52;AXAL5#,MXAA54..G,M202004-202405

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main90467-C0019iMXAA52;AXAL5#,MXAA54..G,M202004-202405

81497COVER, REAR COMBINATION LAMP, RH

main81497-0R030iMXAA52;AXAL5#,MXAA54..G,M202004-202405

81498COVER, REAR COMBINATION LAMP, LH

main81498-0R030iMXAA52;AXAL5#,MXAA54..G,M202004-202405

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0R110iAXAH5#,MXAA5#202004-202405

main81550-0R140iAXAL5#,MXAA5#..M202405

main81550-0R140iAXAH5#,MXAA5#..M202207-202303

BLACK EDITION

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011iAXAL52..X202004-202405

12V 21W,AMBER

main90981-15011iAXAH5#,MXAA5#..M202207-202303

12V 21W,AMBER,BLACK EDITION

main90981-CB004iAXAH5#,MXAA5#202109-202303

12V 21W

81550NBULB, BACK UP LAMP

main90981-11059iMXAA52;AXAL5#,MXAA54..G,M202004-202405

12V 16W

main90981-11059iAXAH5#,MXAA5#..M202207-202303

12V 16W,BLACK EDITION

main90981-CB002iAXAH5#,MXAA5#202109-202303

12V 21W

81554HPACKING, REAR COMBINATION LAMP, RH

main81554-0R110iAXAH5#,MXAA5#202004-202405

81558MBRACKET, REAR COMBINATION LAMP, RH

main81588-0R080iMXAA52;AXAL5#,MXAA54..G,M202004-202405

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0R110iMXAA52..G,X;AXAL5#,MXAA54..G202004-202405

main81560-0R140iAXAL5#,MXAA5#..M202405

main81560-0R140iAXAH5#,MXAA5#..M202207-202303

BLACK EDITION

81564HPACKING, REAR COMBINATION LAMP, LH

main81554-0R110iMXAA52;AXAL5#,MXAA54..G,M202004-202405

81568KBRACKET, REAR COMBINATION LAMP, LH

main81598-0R080iAXAH5#,MXAA5#202004-202405

81580ALAMP ASSY, REAR

main81580-0R080iMXAA52;AXAL5#,MXAA54..G,M202004-202405

main81580-0R120iAXAL5#,MXAA5#..M202405

main81580-0R120iAXAH5#,MXAA5#..M202207-202303

BLACK EDITION

81590ALAMP ASSY, REAR, LH

main81590-0R080iMXAA52..G,X;AXAL5#,MXAA54..G202004-202405

main81590-0R120iAXAL5#,MXAA5#..M202405

main81590-0R120iAXAH5#,MXAA5#..M202207-202303

BLACK EDITION

9006932094

main90069-32094

9015960621

main90159-60621

90178C0057

main90178-C0057

9018906242

main90189-06242

90467C0033

main90467-C0033

21 parts on this diagram · 2 diagrams in section
