FUEL TANK & TUBE

0001 1FUEL TANK 0003 1TANK 0004 1FUEL PUMP 0006 1FUEL PUMP 0007 1FUEL TUBE 0010 1FUEL TUBE 0011 1FUEL TUBE 0012 1FUEL LID OPENER 0014 1FUEL LID OPENER

77001ATANK SUB-ASSY, FUEL

main77001-0R150iMXAA5#202304-202405

main77001-0R160iAXAH5#202004-202303

77144ARETAINER, FUEL PUMP GAUGE

main77144-F4020iAXAL52..X202304

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0R050×2iAXAL5#..G,M202304-202405

main77169-47030iMXAA5#202004-202012

77209CTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0R080iMXAA5#202304-202405

main77209-0R100iAXAL5#..G,M202405

77210PIPE ASSY, FUEL TANK FILLER

main77210-0E290iMXAA5#202304-202405

main77210-0E300iAXAL5#..G,M202304-202405

main77210-0R110iMXAA5#202004-202103

main77210-0R120iAXAH5#202004-202103

77241WCLIP, TUBE JOINT

main77241-02020iAXAL5#..G,M202304-202405

(L)

main77241-33011×2iAXAL5#..G,M202304-202405

(J)

77285GCLAMP, FUEL TUBE, NO.1

main77285-0R320iAXAL5#..G,M202405

(L)

main77285-42240iAXAH5#202004-202303

77285RCLAMP, FUEL TUBE, NO.1

main77285-0R310iAXAL5#..G,M202405

(L)

main77285-30350iMXAA5#202105-202303

(J)

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-0R070iMXAA52;AXAL5#,MXAA54..G,M202405

77310ACAP ASSY, FUEL TANK

main77300-06110iAXAL5#..G,M202405

main77300-0R010iMXAA5#202304-202405

main77300-11010iAXAH5#202004-202106

77316GASKET, FUEL TANK CAP

main77316-0F020iMXAA5#202004-202303

main77316-75020iAXAL5#..G,M202304-202405

77391RING, FUEL INLET BOX

main77391-0R070iMXAA52;AXAL5#,MXAA54..G,M202405

77391CRING, UREA INLET BOX

main77391-0R080iAXAH5#,MXAA5#202004-202303

77404HOSE SUB-ASSY, FUEL TANK VENT

main77404-0E150iAXAL52..X202304

main77404-0R140iMXAA5#202304-202405

main77404-0R190iAXAH5#202004-202303

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-0R080×2iMXAA5#202405

main77601-0R090iAXAL5#..G,M202405

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-0R060iAXAL52..X202304

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-0R070iMXAA5#202405

main77606-0R130iAXAL5#..G,M202405

(L)

main77606-42050iAXAL52..X202304

(J)

77613BOLT, FUEL TANK BAND SET

main90119-10A05×4iAXAL5#..G,M202304-202405

77642APROTECTOR, FUEL TANK, NO.2

main77641-0R090iMXAA5#202304-202405

main77642-0R040iAXAL52..X202304

(L)

main77642-42070iAXAL5#..G,M202304-202405

(J)

77652ACUSHION, FUEL TANK, NO.2

main77652-12100iMXAA5#202405

main77652-42040iAXAL5#..G,M202405

77656BCUSHION, FUEL TANK, NO.6

main77652-12100×2iMXAA5#202304-202405

main77656-06050×5iAXAL52..X202304

77681ASEAT, FUEL TANK BAND

main77681-0R120iAXAL5#..G,M202405

77682ASEAT, FUEL TANK BAND, NO.2

main77682-0R060×2iMXAA5#202004-202303

main77682-0R070iAXAH5#202004-202303

8202

8401

9011910992

main90119-10992

90119C0522

main90119-C0522

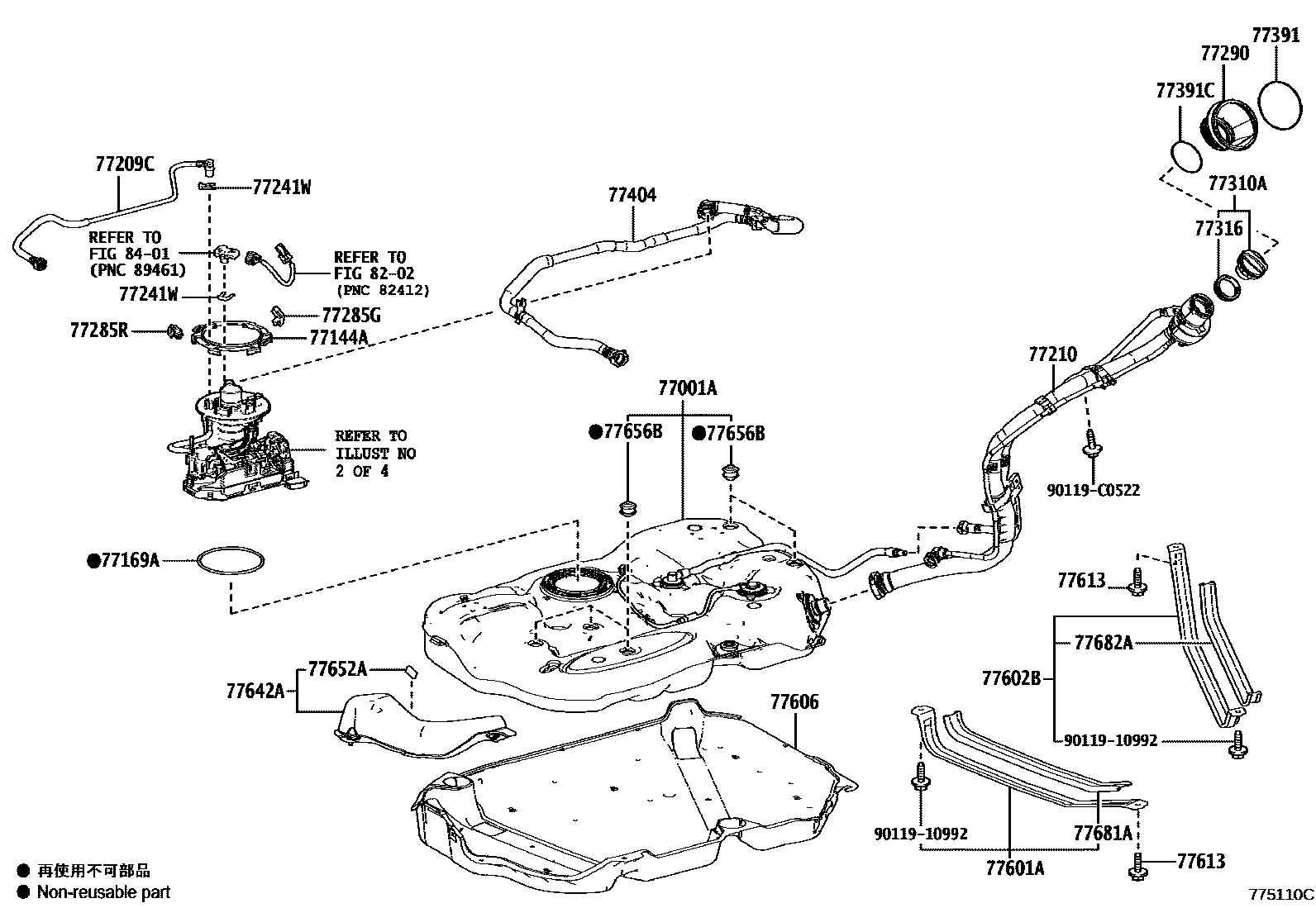

27 parts on this diagram · 9 diagrams in section
