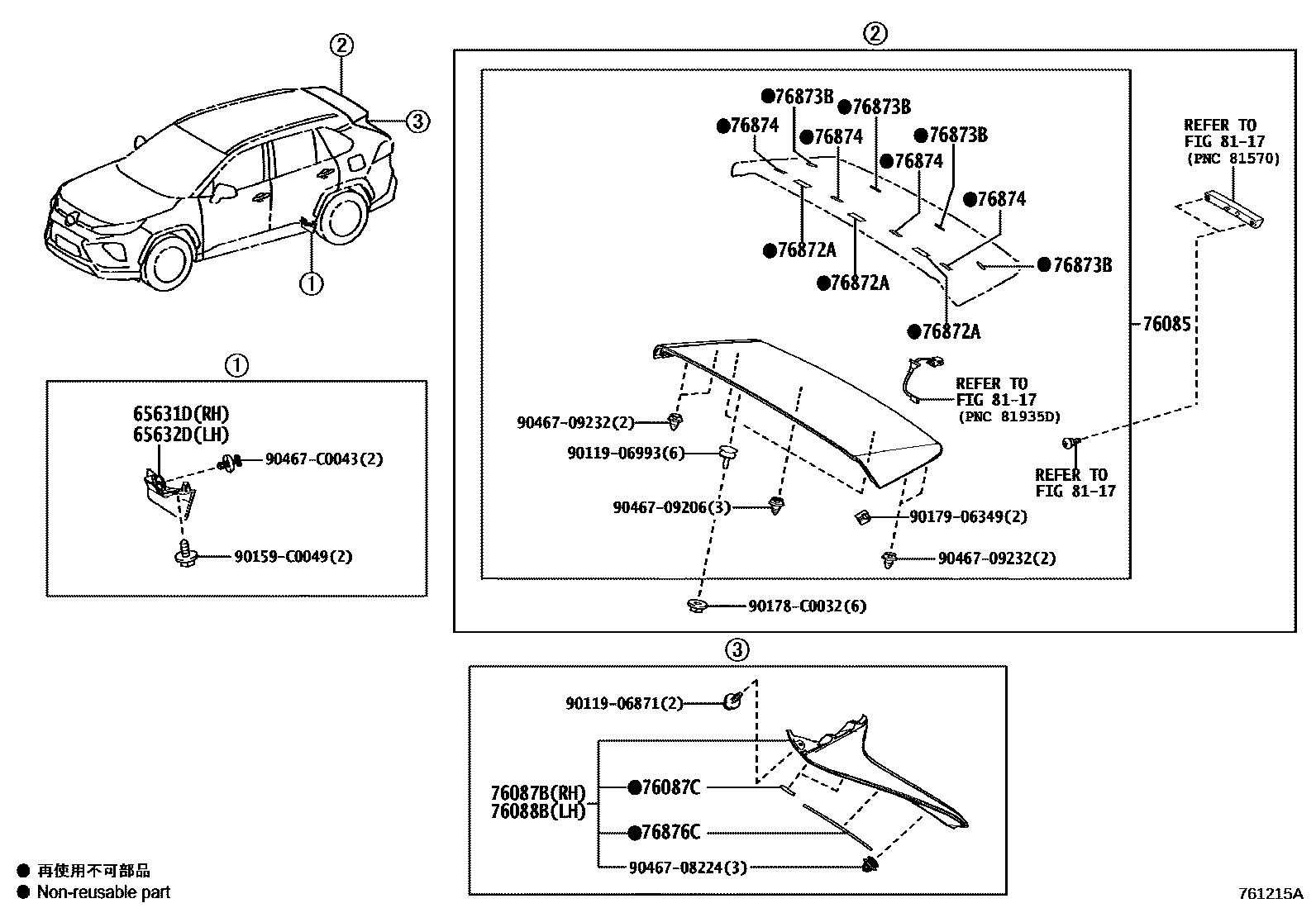

SPOILER & SIDE MUDGUARD

0001 1 0002 1

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-0R100iAXAH5#,MXAA5#202004-202405

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-0R100iMXAA52;AXAL5#,MXAA54..G,M202004-202405

76085SPOILER SUB-ASSY, REAR

main76085-0R904iAXAH5#,MXAA5#202004-202303

PAINT REQ.

main76085-0R906iMXAA52;AXAL5#,MXAA54..G,M202304-202405

PAINT REQ.

76087BSPOILER SUB-ASSY, REAR SIDE, RH

main76087-0R030iAXAH5#,MXAA5#..A,G,M202004-202405

main76087-0R060iAXAH52,MXAA52..X202004-202405

76087CPROTECTOR, REAR SIDE SPOILER

main87268-0R110iAXAL52..X202004-202405

76088BSPOILER SUB-ASSY, REAR SIDE, LH

main76088-0R030iAXAL5#,MXAA5#..G,M202004-202405

main76088-0R060iMXAA52..X202004-202405

76872APROTECTOR, REAR SPOILER, NO.1

main76872-0R070iMXAA52;AXAL5#,MXAA54..G,M202004-202405

76873BPROTECTOR, REAR SPOILER, NO.2

main76873-0R060iMXAA52;AXAL5#,MXAA54..G,M202004-202405

76874PROTECTOR, REAR SPOILER, NO.3

main76874-0R070iAXAH5#,MXAA5#202004-202011

76876CPROTECTOR, REAR SPOILER, NO.4

main76875-0R070iMXAA52;AXAL5#,MXAA54..G,M202004-202405

8117

9011906871

main90119-06871

9011906993

main90119-06993

90159C0049

main90159-C0049

90178C0032

main90178-C0032

9017906349

main90179-06349

9046708224

main90467-08224

9046709206

main90467-09206

9046709232

main90467-09232

90467C0043

main90467-C0043

20 parts on this diagram · 2 diagrams in section
