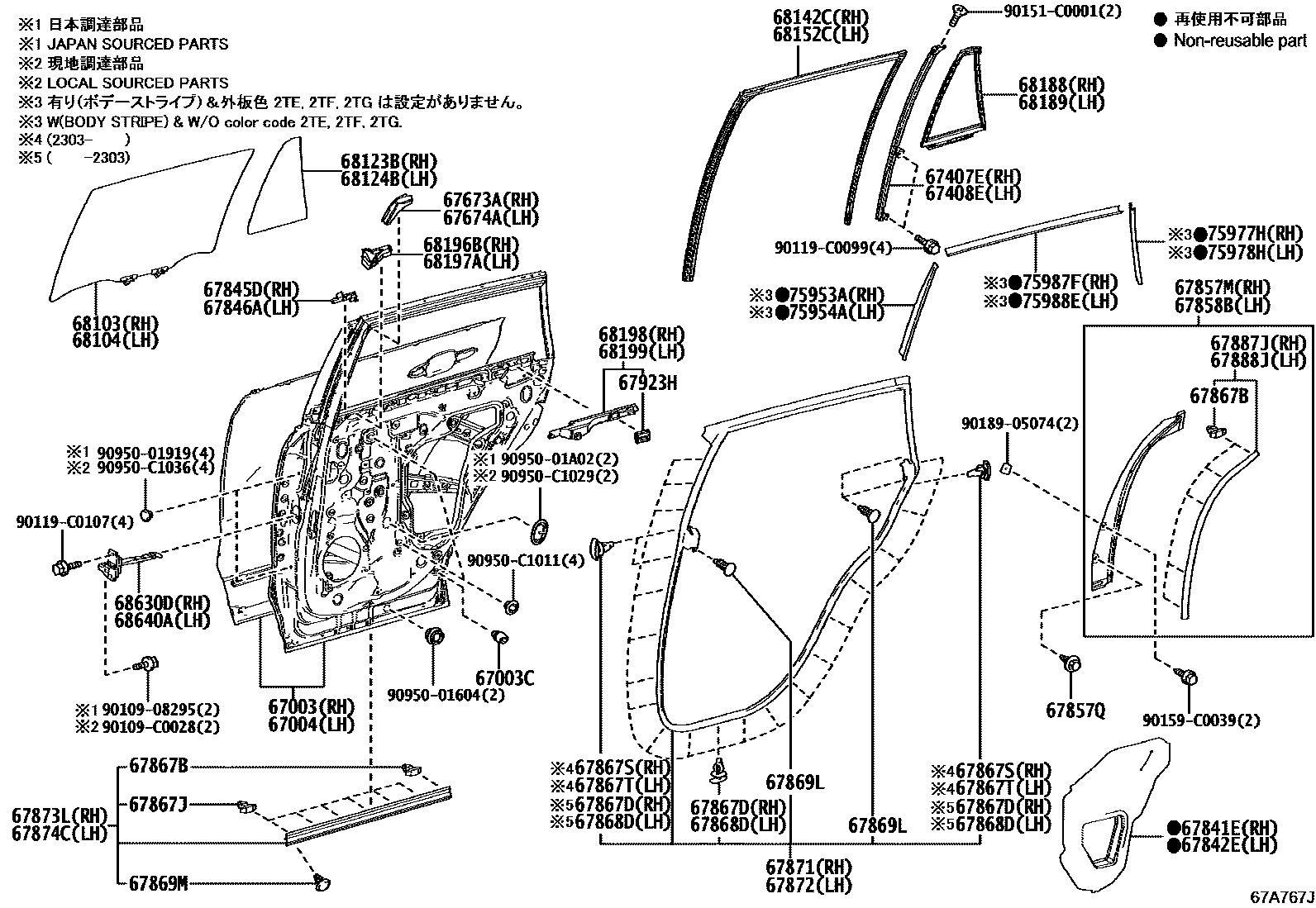

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-0R140iAXAH5#,MXAA5#202004-202405

67003CCUSHION, REAR DOOR PANEL

main90541-09137iMXAA52;AXAL5#,MXAA54..G,M202004-202405

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-0R140iMXAA52;AXAL5#,MXAA54..G,M202004-202405

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-0R070iMXAA52;AXAL5#,MXAA54..G,M202004-202405

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-0R070iMXAA52;AXAL5#,MXAA54..G,M202004-202405

67673AGARNISH, REAR DOOR FRAME, RH

main67673-0R040iMXAA52;AXAL5#,MXAA54..G,M202004-202405

67674AGARNISH, REAR DOOR FRAME, LH

main67674-0R040iMXAA52;AXAL5#,MXAA54..G,M202004-202405

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-0R080iAXAH5#,MXAA5#202004-202303

main67841-0R080iAXAL5#,MXAA5#202304

(L),MARK 5R

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-0R080iAXAL5#,MXAA5#202304

(L),MARK 5R

main67842-0R080iAXAH5#,MXAA5#202004-202303

67845DSEAL, REAR DOOR FRONT OUTSIDE, RH

main67845-0R030iMXAA52;AXAL5#,MXAA54..G,M202004-202405

67846ASEAL, REAR DOOR FRONT OUTSIDE, LH

main67846-0R030iAXAH5#,MXAA5#202004-202405

67857MPROTECTOR, REAR DOOR PANEL, RH

main67857-0R080iMXAA52;AXAL5#,MXAA54..G,M202004-202405

67857QCLIP, REAR DOOR PANEL PROTECTOR

main90467-C0014-C1iMXAA52;AXAL5#,MXAA54..G,M202004-202405

BLACK

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-0R050iMXAA52;AXAL5#,MXAA54..G,M202004-202405

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main53145-60030iMXAA52;AXAL5#,MXAA54..G,M202004-202405

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iAXAH5#,MXAA5#202004-202405

67867JCLIP, DOOR WEATHERSTRIP, RH(FOR REAR DOOR)

main67867-12150iAXAL52..X202004-202405

67867SRETAINER, REAR DOOR WEATHERSTRIP, NO.2, RH

main67867-0D070iMXAA5#..G,M,X202303-202303

67867TRETAINER, REAR DOOR WEATHERSTRIP, NO.2, LH

main67867-0D070iMXAA5#..G,M,X202303-202303

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iMXAA52;AXAL5#,MXAA54..G,M202004-202405

67869LCLIP, REAR DOOR WEATHERSTRIP

main67869-26050iMXAA52;AXAL5#,MXAA54..G,M202004-202405

67869MCLIP, DOOR WEATHERSTRIP

main67869-26050iAXAL52..X202010-202405

67871WEATHERSTRIP, REAR DOOR, RH

main67871-0R090iMXAA52;AXAL5#,MXAA54..G,M202004-202405

67872WEATHERSTRIP, REAR DOOR, LH

main67872-0R070iAXAH5#,MXAA5#202004-202405

67873LWEATHERSTRIP, REAR DOOR, NO.5 RH

main67873-0R050iAXAH5#,MXAA5#202004-202010

main67873-0R051iMXAA52;AXAL5#,MXAA54..G,M202010-202405

67874CWEATHERSTRIP, REAR DOOR, NO.5 LH

main67874-0R050iAXAH5#,MXAA5#202004-202010

main67874-0R051iMXAA52;AXAL5#,MXAA54..G,M202010-202405

67887JWEATHERSTRIP, ACCESS PANEL, NO.2 RH

main67887-0R030iMXAA52;AXAL5#,MXAA54..G,M202004-202405

67888JWEATHERSTRIP, ACCESS PANEL, NO.2 LH

main67888-0R030iMXAA52;AXAL5#,MXAA54..G,M202004-202405

67923HRETAINER, DOOR CORNER SEAL

main67923-0R040iMXAA52;AXAL5#,MXAA54..G,M202004-202405

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-0R120iAXAL52..X202004-202405

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-0R120iMXAA52;AXAL5#,MXAA54..G,M202004-202405

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-0R120iMXAA52;AXAL5#,MXAA54..G,M202004-202405

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-0R120iMXAA52;AXAL5#,MXAA54..G,M202004-202405

68142CRUN, REAR DOOR GLASS, RH

main68142-0R070iMXAA52;AXAL5#,MXAA54..G,M202004-202405

68152CRUN, REAR DOOR GLASS, LH

main68152-0R070iMXAA52;AXAL5#,MXAA54..G,M202004-202405

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-0R080iMXAA52;AXAL5#,MXAA54..G,M202004-202405

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-0R070iMXAA52;AXAL5#,MXAA54..G,M202004-202405

68196BSEAL, REAR DOOR BELT, FRONT RH

main68196-0R030iAXAL52..X202004-202405

68197ASEAL, REAR DOOR BELT, FRONT LH

main68197-0R030iMXAA52;AXAL5#,MXAA54..G,M202004-202405

68198SEAL, REAR DOOR BELT, REAR RH

main68198-0R030iAXAL52..X202004-202405

68199SEAL, REAR DOOR BELT, REAR LH

main68199-0R030iAXAH5#,MXAA5#202004-202405

68630DCHECK ASSY, REAR DOOR, RH

main68630-0R080iAXAH5#,MXAA5#202004-202111

sub68630-0R081

main68630-0R081iAXAH5#,MXAA5#202112-202405

main68630-0R081iAXAH5#,MXAA5#202206-202303

(L)

main68630-42050iAXAH5#,MXAA5#202206-202303

(J)

68640ACHECK ASSY, REAR DOOR, LH

main68630-0R080iAXAH5#,MXAA5#202004-202111

sub68630-0R081

main68630-0R081iAXAH5#,MXAA5#202206-202303

(L)

main68630-0R081iAXAL52..X202112-202405

main68630-42050iAXAH5#,MXAA5#202206-202303

(J)

75953ATAPE, BLACK OUT, INNER REAR RH

75954ATAPE, BLACK OUT, INNER REAR LH

75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH

75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH

75987FSTRIPE, REAR DOOR, OUTSIDE, RH

75988ESTRIPE, REAR DOOR, OUTSIDE LH

9010908295

main90109-08295

90109C0028

main90109-C0028

90119C0099

main90119-C0099

90119C0107

main90119-C0107

90151C0001

main90151-C0001

90159C0039

main90159-C0039

9018905074

main90189-05074

9095001604

main90950-01604

9095001919

main90950-01919

9095001A02

main90950-01A02

90950C1011

main90950-C1011

90950C1029

main90950-C1029

90950C1036

main90950-C1036

62 parts on this diagram · 2 diagrams in section
