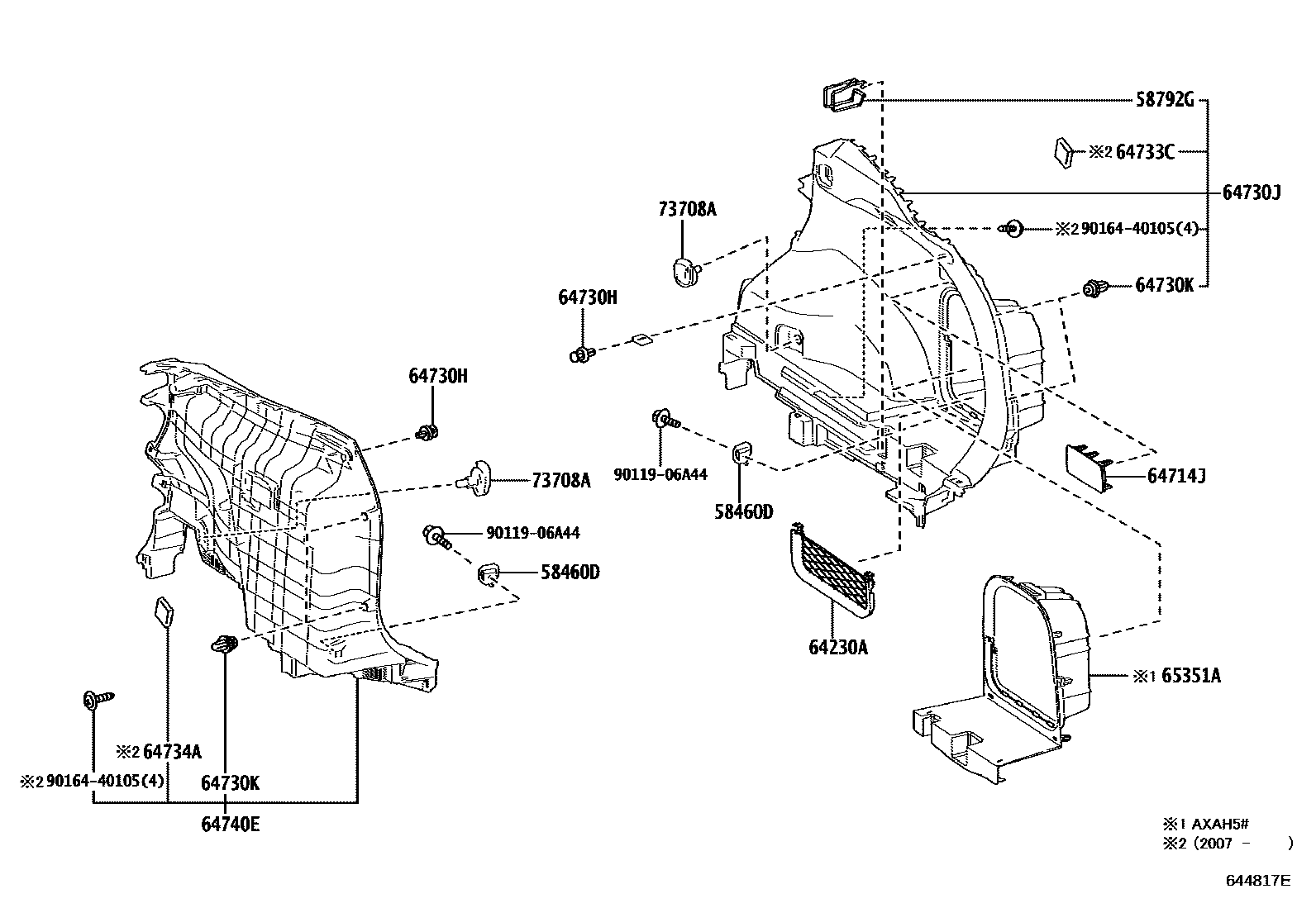

DECK BOARD & DECK TRIM COVER
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
58792GSUPPORT, JACK CARRIER
64230ANET ASSY, ROOM PARTITION
LT. GRAY,TRIM2#
LT. GRAY,TRIM0#,2#
LT. GRAY,TRIM1#,2#
LT. GRAY,TRIM0#,1#,2#
64714JCOVER, DECK SIDE TRIM, RH
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#
64730HCLIP(FOR DECK TRIM SIDE PANEL)
(J)
(L)
64730JPANEL ASSY, DECK TRIM SIDE, RH
BLACK,TRIM0#,2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#
64730KCLIP(FOR DECK SIDE TRIM PANEL)
64733CPAD, DECK TRIM SIDE, NO.1
64734APAD, DECK TRIM SIDE, NO.2
64740EPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
65351ACOVER, BATTERY HOLE
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
73708ABRACKET SET, TETHER ANCHOR
9011906A44
main90119-06A44
9016440105
main90164-40105
14 parts on this diagram · 2 diagrams in section
