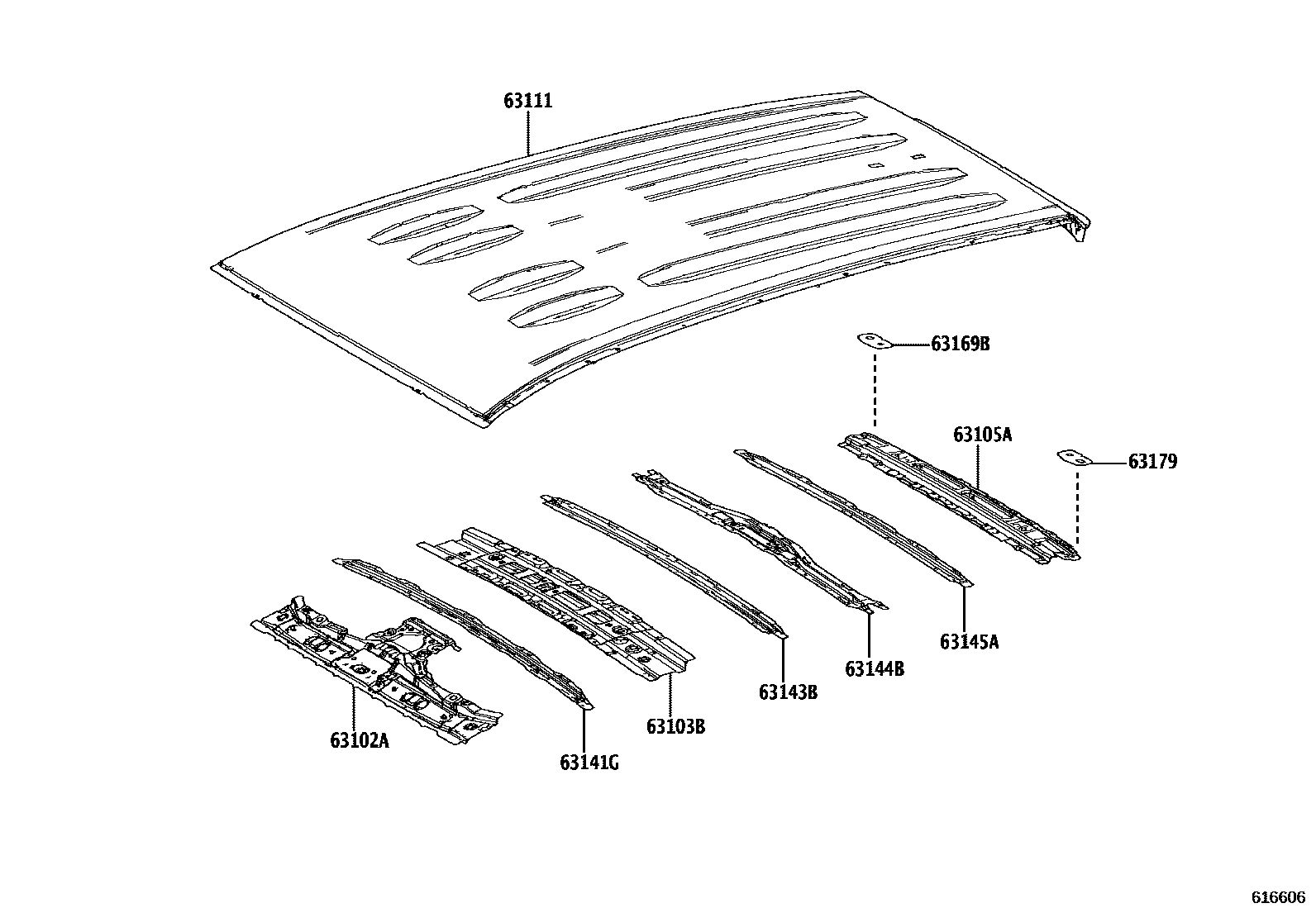

ROOF PANEL & BACK PANEL

0001 1ROOF PANEL(NORMAL ROOF) 0003 1ROOF PANEL(MOON ROOF) 0005 1SLIDING ROOF(MOON ROOF) 0007 1ROOF PANEL(PANORAMA ROOF) 0009 1ROOF PANEL(PANORAMA ROOF) 0011 1ROOF RACK

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0R160iAXAL52,MXAA5#..M202304-202405

MID & PACKAGE

main63102-0R160iAXAH52,MXAA5#..A202004-202303

main63102-0R911iAXAH52,MXAA5#..G202004-202303

main63102-0R912iAXAH52,MXAA52..X202004-202405

63103BREINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-0R050iMXAA52..X202004-202405

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-0R070iMXAA52;AXAL5#,MXAA54..G,M202004-202405

63111PANEL, ROOF

main63111-0R190iAXAL5#,MXAA5#..M202004-202405

main63111-0R240iAXAL52..X202004-202405

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63143-0R100iMXAA52..X202004-202405

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63144-0R080iMXAA52..M,X;AXAL52,MXAA54..M202004-202405

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63108-0R030iMXAA52..M,X;AXAL52,MXAA54..M202004-202405

63145AREINFORCEMENT, ROOF PANEL, NO.5

main63149-0R080iMXAA52..M,X;AXAL52,MXAA54..M202004-202405

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-F4030iMXAA52;AXAL5#,MXAA54..G,M202004-202405

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-F4030iMXAA52;AXAL5#,MXAA54..G,M202004-202405

10 parts on this diagram · 6 diagrams in section
