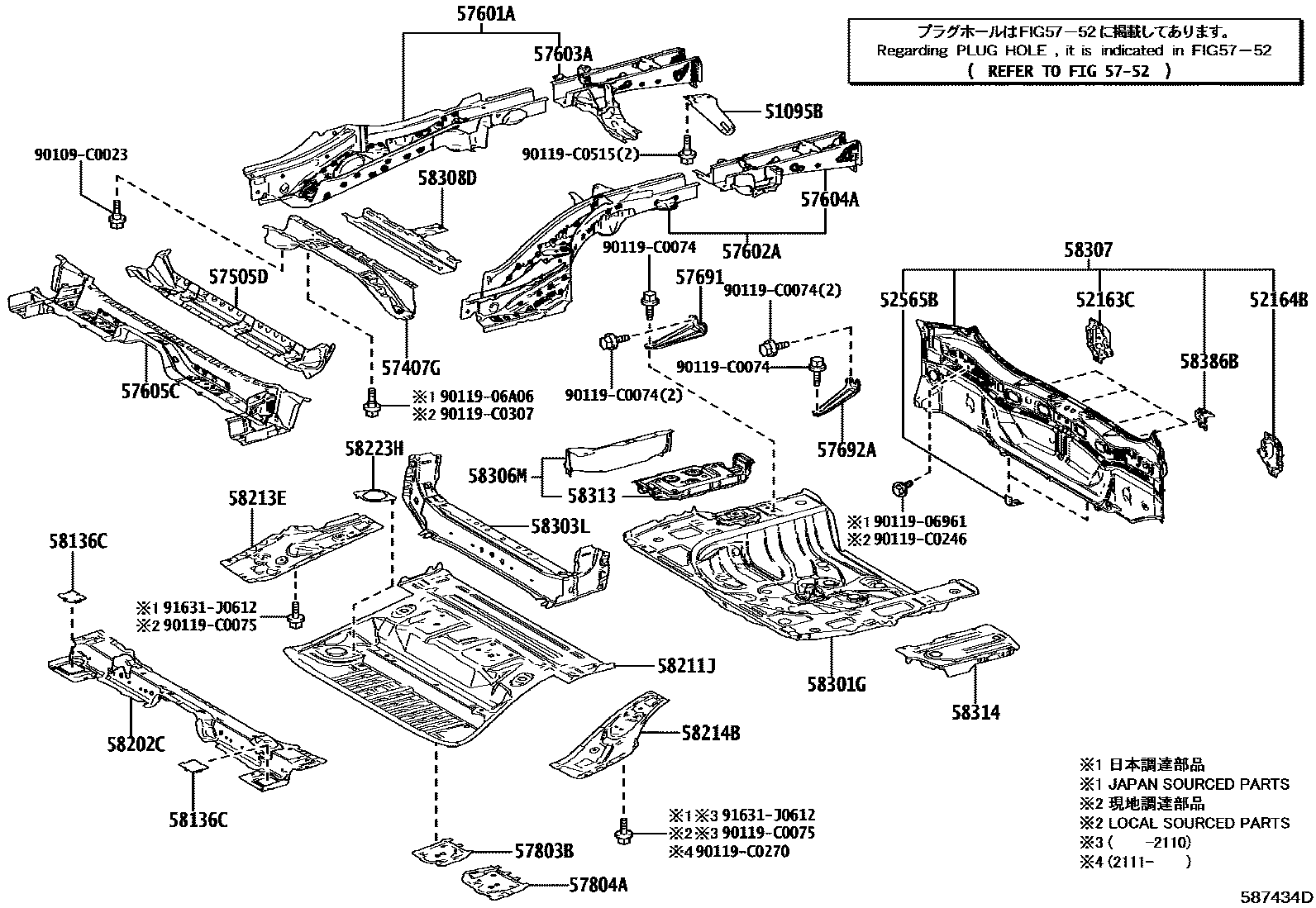

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

51095BHOOK SUB-ASSY, TRANSPORT, REAR RH

main51095-0R030iMXAA52;AXAL5#,MXAA54..G,M202004-202405

52163CPLATE, REAR BUMPER REINFORCEMENT, RH

main52163-0R060iMXAA52;AXAL5#,MXAA54..G,M202004-202405

52164BPLATE, REAR BUMPER REINFORCEMENT, LH

main52164-0R060iMXAA52;AXAL5#,MXAA54..G,M202004-202405

52565BRETAINER, REAR BUMPER, LOWER

main52565-0R060iMXAA52;AXAL5#,MXAA54..G,M202004-202405

57407GMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-0R030iAXAH5#,MXAA5#202004-202011

main57407-0R031iMXAA52;AXAL5#,MXAA54..G,M202011-202405

57505DREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER

main57505-0R060iAXAL5#..G,M202004-202405

5752

57601AMEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-0R080iMXAA52;AXAL5#,MXAA54..G,M202004-202405

57602AMEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-0R080iMXAA52;AXAL5#,MXAA54..G,M202004-202405

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-0R050iAXAH5#,MXAA5#202004-202501

main57603-0R051iMXAA52;AXAL5#,MXAA54..G,M202501

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-0R050iMXAA52;AXAL5#,MXAA54..G,M202004-202501

main57604-0R051iMXAA52;AXAL5#,MXAA54..G,M202501

57605CMEMBER SUB-ASSY, REAR FLOOR CROSS

main57605-0R080iMXAA5#202004-202405

main57605-0R090iAXAL5#..G,M202004-202405

57691BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER RH

main57691-0R030iMXAA52;AXAL5#,MXAA54..G,M202004-202405

57692ABRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER LH

main57692-0R030iMXAA52;AXAL5#,MXAA54..G,M202004-202405

57803BREINFORCE SUB-ASSY, BELT ANCHOR, NO.2 RH

main57803-0R060iMXAA52;AXAL5#,MXAA54..G,M202004-202405

57804AREINFORCE SUB-ASSY, BELT ANCHOR, NO.2 LH

main57804-0R050iMXAA52;AXAL5#,MXAA54..G,M202004-202405

58136CCOVER, REAR FLOOR HOLE

main58136-0R040iMXAA52;AXAL5#,MXAA54..G,M202004-202405

58202CPAN SUB-ASSY, CENTER FLOOR, FRONT

main58202-0R090iMXAA5#202004-202405

main58202-0R100iAXAL5#..G,M202004-202405

58211JPAN, CENTER FLOOR

main58211-0R080iMXAA5#202004-202405

main58211-0R160iAXAL52..X202410

(L)

main58211-42030iAXAL52..X¥11,400202410

(J)

main58211-42030iAXAH5#¥11,400202004-202410

58213EPANEL, SEAT FLOOR SIDE, RH

main58213-0R050iAXAH5#,MXAA5#202004-202405

58214BPANEL, SEAT FLOOR SIDE, LH

main58214-0R050iMXAA5#202004-202405

main58214-0R120iAXAH5#202112-202405

58223HREINFORCEMENT, FLOOR PANEL SIDE, RH

main58223-0R030iAXAL5#..G,M202004-202405

58301GPAN SUB-ASSY, REAR FLOOR

main58301-0R902iMXAA5#202004-202405

main58301-0R903iAXAL5#..G,M202004-202405

58303LPANEL SUB-ASSY, REAR FLOOR PARTITION

main58303-0R050iAXAH5#,MXAA5#202004-202010

sub58303-0R051

main58303-0R051iAXAH5#,MXAA5#202011-202107

sub58303-0R052

main58303-0R052iMXAA52;AXAL5#,MXAA54..G,M202108-202405

58306MPANEL SUB-ASSY, REAR FLOOR SIDE

main58306-0R030iAXAH5#202004-202405

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-0R100iAXAH5#,MXAA5#202004-202202

main58307-0R101iMXAA52;AXAL5#,MXAA54..G,M202202-202405

58308DBRACKET SUB-ASSY, REAR FLOOR CROSSMEMBER

main58308-0R040iMXAA52;AXAL5#,MXAA54..G,M202004-202405

58313PANEL, REAR FLOOR SIDE, RH

main58313-0R070iMXAA52;AXAL5#,MXAA54..G,M202004-202405

58314PANEL, REAR FLOOR SIDE, LH

main58314-0R050iMXAA52;AXAL5#,MXAA54..G,M202004-202405

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-02170iMXAA52;AXAL5#,MXAA54..G,M202004-202405

90109C0023

main90109-C0023

9011906961

main90119-06961¥60

9011906A06

main90119-06A06¥60

90119C0074

main90119-C0074

90119C0075

main90119-C0075

90119C0246

main90119-C0246

90119C0270

main90119-C0270

90119C0307

main90119-C0307

90119C0515

main90119-C0515

91631J0612

main91631-J0612¥110

40 parts on this diagram · 2 diagrams in section
