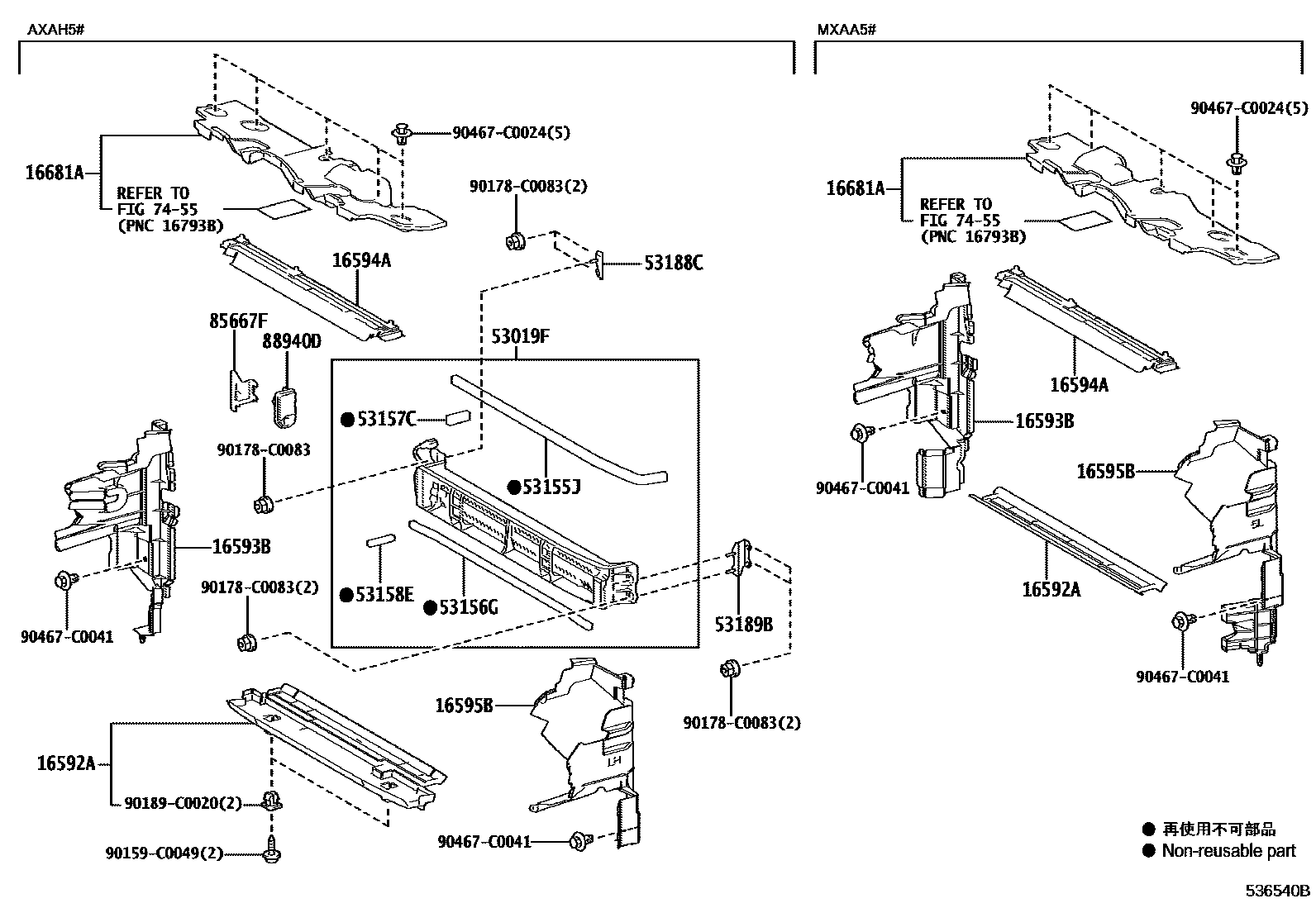

FRONT FENDER APRON & DASH PANEL

0001 1AIR GUIDE 0002 1AIR GUIDE 0003 1AIR GUIDE 0004 1RADIATOR SUPPORT & FENDER APR0005 1DASH PANEL

16592AGUIDE, RADIATOR AIR, NO.3

main16592-F0020iM20CFKS..MXAA5#202004-202303

main16592-F0120iA25..AXAH5#202004-202303

sub16592-F0210

main16592-F0200iM20CFKS..MXAA5#202304-202405

main16592-F0210iA25..AXAL5#..G,M202304-202405

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-F0190iA25..AXAH5#202004-202111

main16593-F0520iA25..AXAH5#202111-202303

main16593-F0610iA25..AXAL5#..G,M202304-202405

main16593-F2120iM20CFKS..MXAA5#202004-202303

main16593-F2280iM20CFKS..MXAA5#202304-202405

16594AGUIDE, RADIATOR AIR, NO.2

main16594-F0110iA25,M20CFKS..AXAH5#,MXAA5#202004-202303

main16594-F0180iM20CFKS..MXAA52;A25,M20CFKS..AXAL5#,MXAA54..G,M202304-202405

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-F0190iA25..AXAH5#202004-202111

main16595-F0540iA25..AXAH5#202111-202303

main16595-F0630iA25..AXAL5#..G,M202304-202405

main16595-F2130iM20CFKS..MXAA5#202004-202303

sub16595-F2300

main16595-F2300iM20CFKS..MXAA5#202304-202405

16681APLATE, RADIATOR UPPER AIR GUIDE

main16681-F0040iA25..AXAH5#202004-202303

sub16681-F0100

main16681-F0100iA25..AXAL5#..G,M202304-202405

main16681-F2020iM20CFKS..MXAA5#202004-202303

sub16681-F2060

main16681-F2060iM20CFKS..MXAA5#202304-202405

53019FSHUTTER SUB-ASSY, RADIATOR

main53019-0R080iAXAH5#202004-202303

main53019-0R090iAXAL5#..G,M202304-202405

53155JSEAL, RADIATOR GRILLE, NO.1

main53155-0R100iAXAH5#202004-202303

main53155-0R110iAXAL5#..G,M202304-202405

53156GSEAL, RADIATOR GRILLE, NO.2

main53156-0R120iAXAH5#202004-202303

main53156-0R130iAXAL5#..G,M202304-202405

53157CSEAL, RADIATOR GRILLE, NO.3

main53157-0R040iAXAH5#202004-202303

53158ESEAL, RADIATOR GRILLE, NO.4

main53158-0R040iAXAH5#202004-202303

53188CBRACKET, RADIATOR SHUTTER SUPPORT, RH

main53188-0R040iAXAH5#202004-202303

53189BBRACKET, RADIATOR SHUTTER SUPPORT, LH

main53189-0R020iAXAH5#202004-202303

7455

85667FCOVER, MOTOR

main85667-06030iAXAH5#202004-202303

88940DACTUATOR ASSY, SWING GRILLE

main88940-0R010iAXAH5#202004-202210

sub88940-0R011

main88940-0R011iAXAH5#202211-202303

90159C0049

main90159-C0049

90178C0083

main90178-C0083

90189C0020

main90189-C0020

90467C0024

main90467-C0024

90467C0041

main90467-C0041

20 parts on this diagram · 5 diagrams in section
