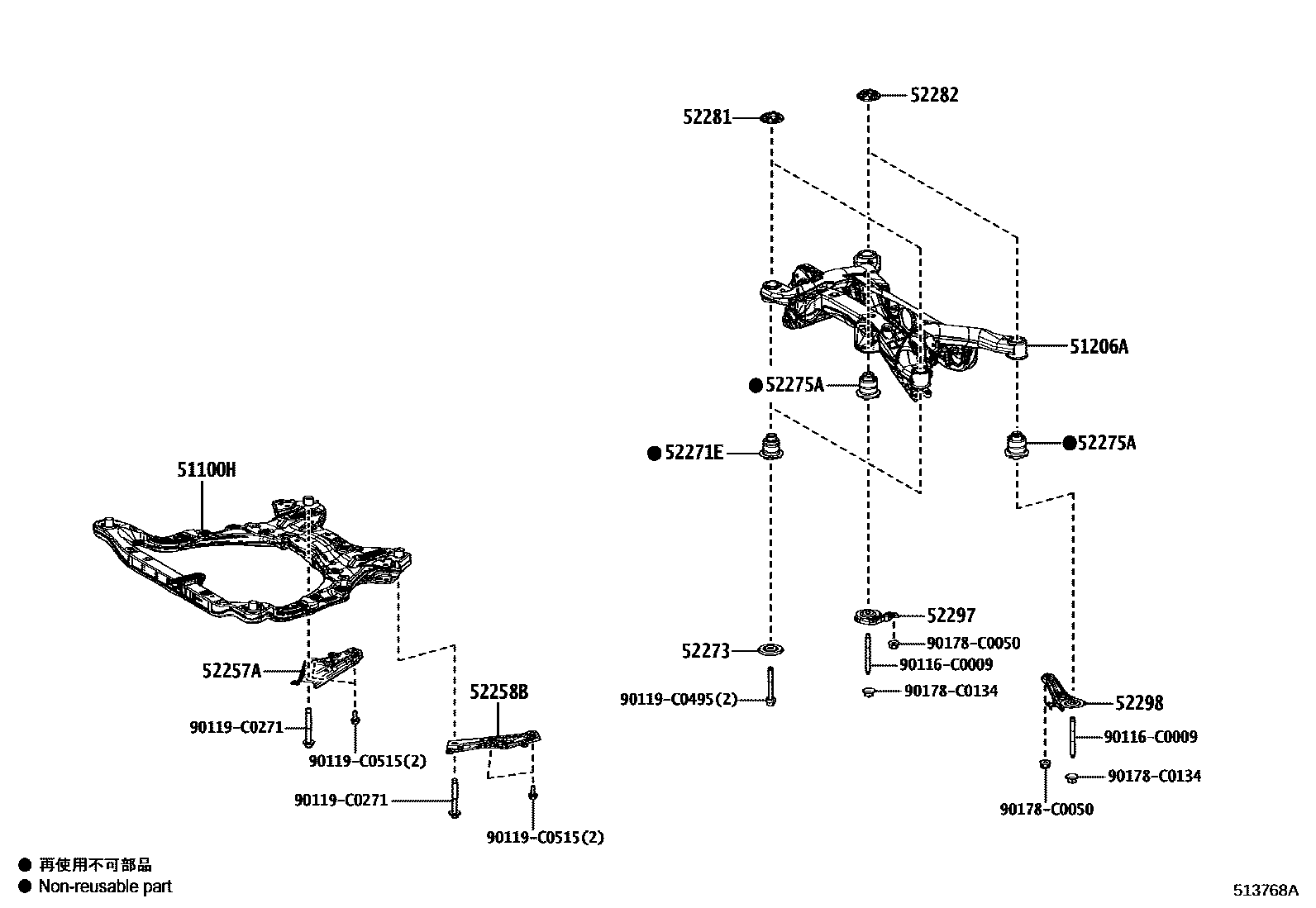

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1SUSPENSION CROSSMEMBER 0003 1UNDER COVER 0004 1UNDER COVER

51100HFRAME ASSY, FRONT

main51100-0R031iAXAH5#,MXAA5#202004-202307

sub51100-0R032

main51100-0R032iAXAH5#,MXAA5#202212-202405

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-0R090iMXAA54202004-202405

main51206-0R100iAXAH54202004-202405

main51206-0R130iMXAA52;AXAL52..G,M202004-202405

52257ABRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-0R060iMXAA52;AXAL5#,MXAA54..G,M202004-202405

52258BBRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-0R060iMXAA52;AXAL5#,MXAA54..G,M202004-202405

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-0R030iMXAA52;AXAL5#,MXAA54..G,M202004-202405

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-06080iMXAA52;AXAL5#,MXAA54..G,M202004-202405

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-0R030iMXAA52;AXAL5#,MXAA54..G,M202004-202405

RH

main52276-0R030iMXAA52;AXAL5#,MXAA54..G,M202004-202405

LH

52281CUSHION, DIFFERENTIAL SUPPORT MEMBER

main52281-0R030iAXAH5#,MXAA5#202004-202405

52282STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER

main52282-0R030iMXAA52;AXAL5#,MXAA54..G,M202004-202405

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-0R060iMXAA52;AXAL5#,MXAA54..G,M202004-202405

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52297-0R060iMXAA52;AXAL5#,MXAA54..G,M202004-202405

90116C0009

main90116-C0009

90119C0271

main90119-C0271

90119C0495

main90119-C0495

90119C0515

main90119-C0515

90178C0050

main90178-C0050

90178C0134

main90178-C0134

17 parts on this diagram · 4 diagrams in section
