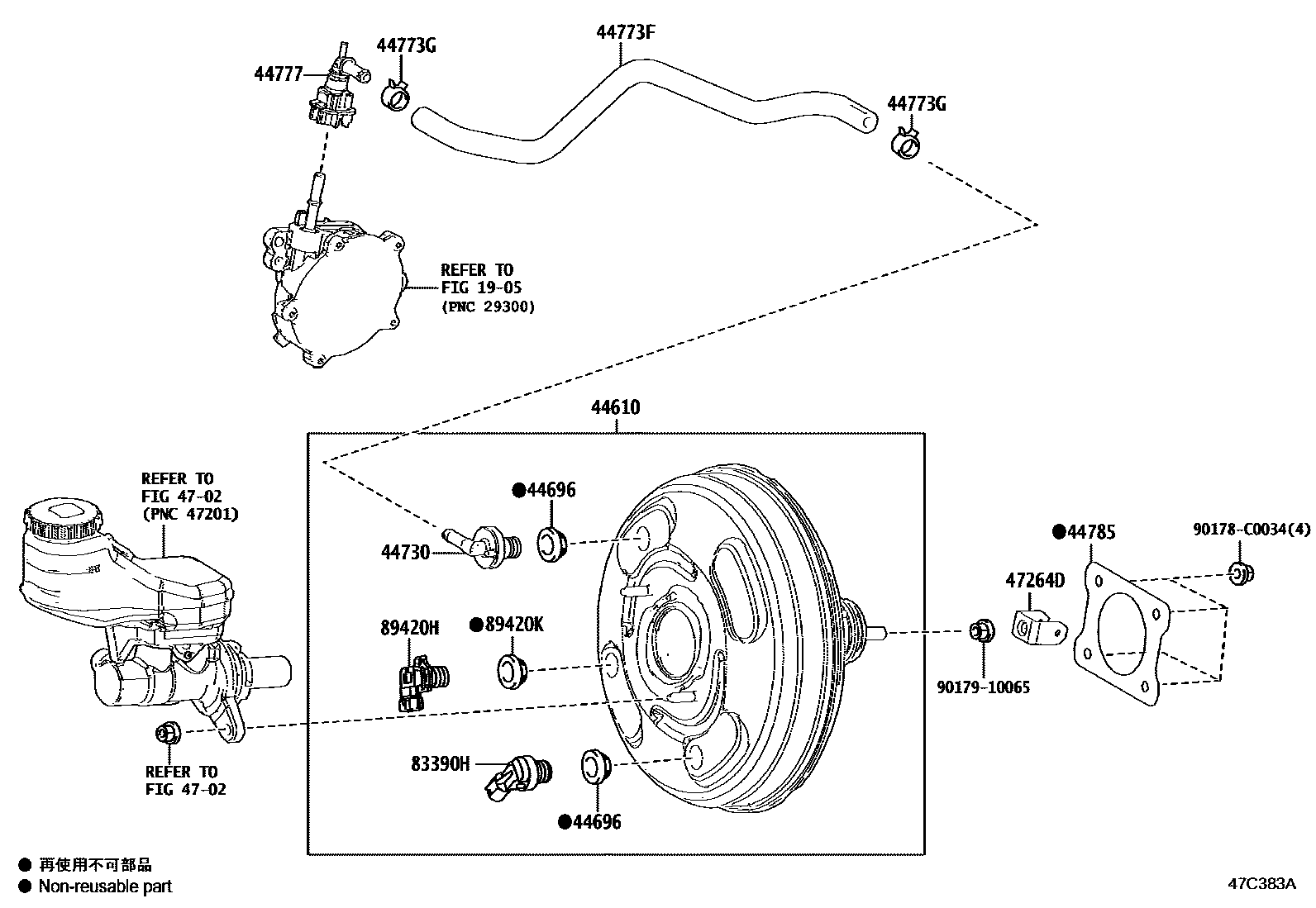

BRAKE BOOSTER & VACUUM TUBE

1905

44610BOOSTER ASSY, BRAKE

main44610-0E280iMXAA5#202304-202405

main44610-0R150iMXAA5#202004-202112

main44610-0R151iMXAA5#202112-202303

44696GROMMET, CHECK VALVE

main90016-AT003iMXAA5#¥120202112-202405

main90080-48071iMXAA5#202004-202112

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-52010iMXAA5#¥1,300202004-202405

44773FHOSE, UNION TO CHECK VALVE

main44773-0R040iMXAA5#202004-202405

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90466-C0034iMXAA5#202004-202405

44777CONNECTOR, VACUUM HOSE, NO.1

main44777-06020iMXAA5#202208-202405

(L)

main44777-33010iMXAA5#¥520202004-202208

main44777-33010iMXAA5#¥520202208-202405

(J)

44785GASKET, BRAKE BOOSTER

main44785-02050iMXAA5#202004-202405

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-0R030iMXAA5#202004-202405

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iMXAA5#¥3,780202004-202112

89420HSENSOR ASSY, VACUUM

main89421-52020iMXAA5#¥5,900202004-202303

main89421-71040iMXAA5#¥5,900202304-202405

89420KGROMMET, VACUUM SENSOR

main90016-AT003iMXAA5#¥120202112-202405

main90080-48071iMXAA5#202004-202112

90178C0034

main90178-C0034

9017910065

main90179-10065¥90

15 parts on this diagram · 1 diagram in section
