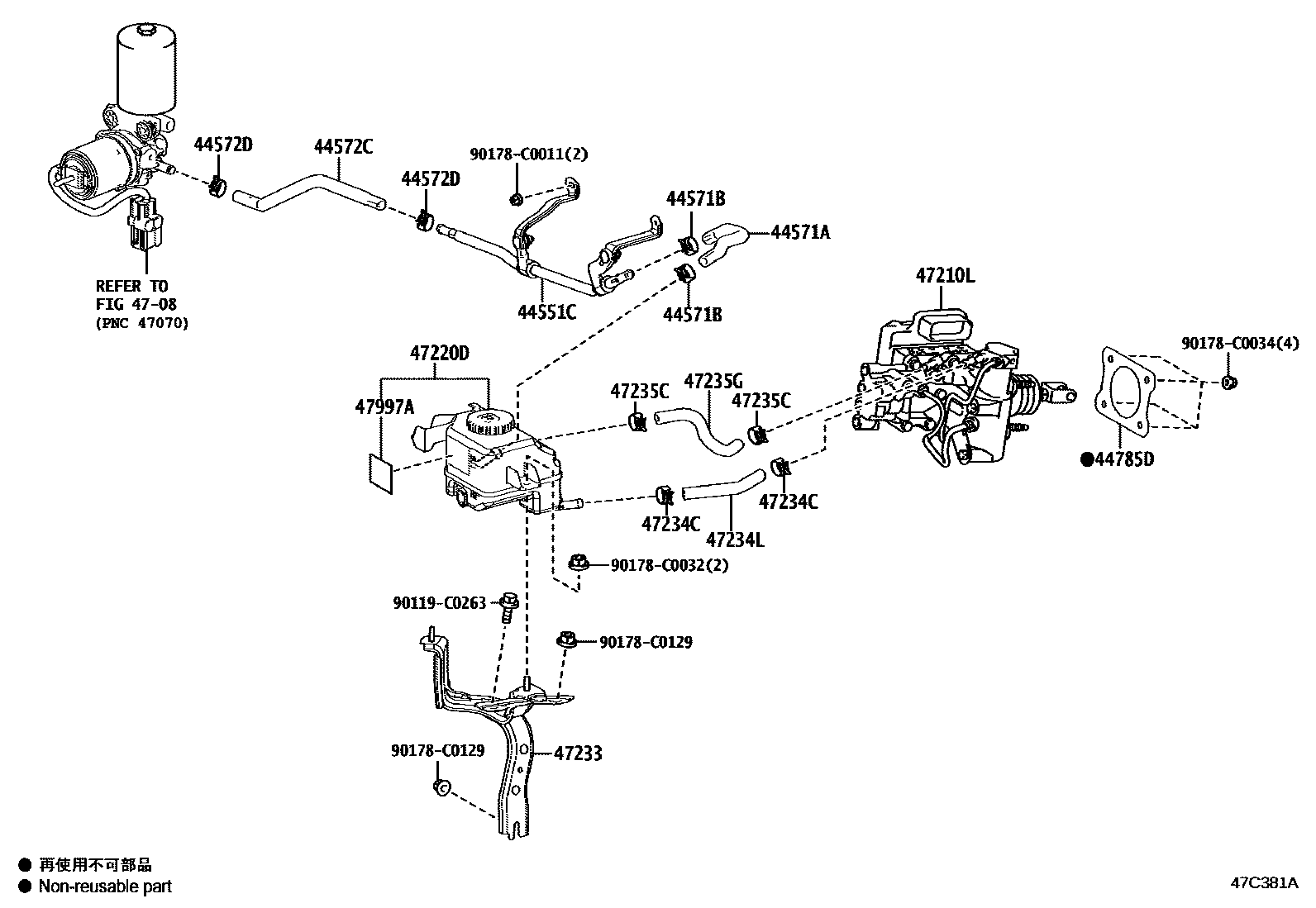

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1

44551CTUBE, BRAKE ACTUATOR, NO.1

main44551-0R030iAXAH5#202004-202303

44571AHOSE, BRAKE ACTUATOR, NO.1

main44571-0R030iAXAH5#202004-202303

44571BCLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1)

main90466-C0026iAXAH5#202004-202303

44572CHOSE, BRAKE ACTUATOR, NO.2

main44572-0R030iAXAH5#202004-202303

44572DCLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2)

main90466-C0026iAXAH5#202004-202303

44785DGASKET, BRAKE MASTER CYLINDER

main44785-02050iAXAL5#..G,M202004-202405

4708

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-0R060iAXAL52..X202304-202405

main47050-0R080iAXAL5#..G,M202405

main47050-42220iAXAH52202004-202303

main47050-42230iAXAH54202004-202303

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-0R120iAXAH5#202004-202303

main47220-0R130iMXAA5#202004-202405

47233BRACKET, RESERVOIR

main47233-0R050iAXAH5#202004-202303

main47233-0R060iMXAA5#202004-202405

47234CCLIP(FOR RESERVOIR TUBE NO.1)

main90466-C0026iAXAH5#202004-202303

47234LHOSE, RESERVOIR, NO.1

main47234-0R030iAXAH5#202004-202303

47235CCLIP(FOR BRAKE MASTER CYLINDER RESERVOIR TUBE NO.2)

main90466-C0026iAXAH5#202004-202303

47235GHOSE, RESERVOIR, NO.2

main47235-0R030iAXAH5#202004-202303

47997ALABEL, ACCUMULATOR CAUTION, NO.1

main47997-76010iAXAL5#..G,M202004-202405

90119C0263

main90119-C0263

90178C0011

main90178-C0011

90178C0032

main90178-C0032

90178C0034

main90178-C0034

90178C0129

main90178-C0129

20 parts on this diagram · 3 diagrams in section
