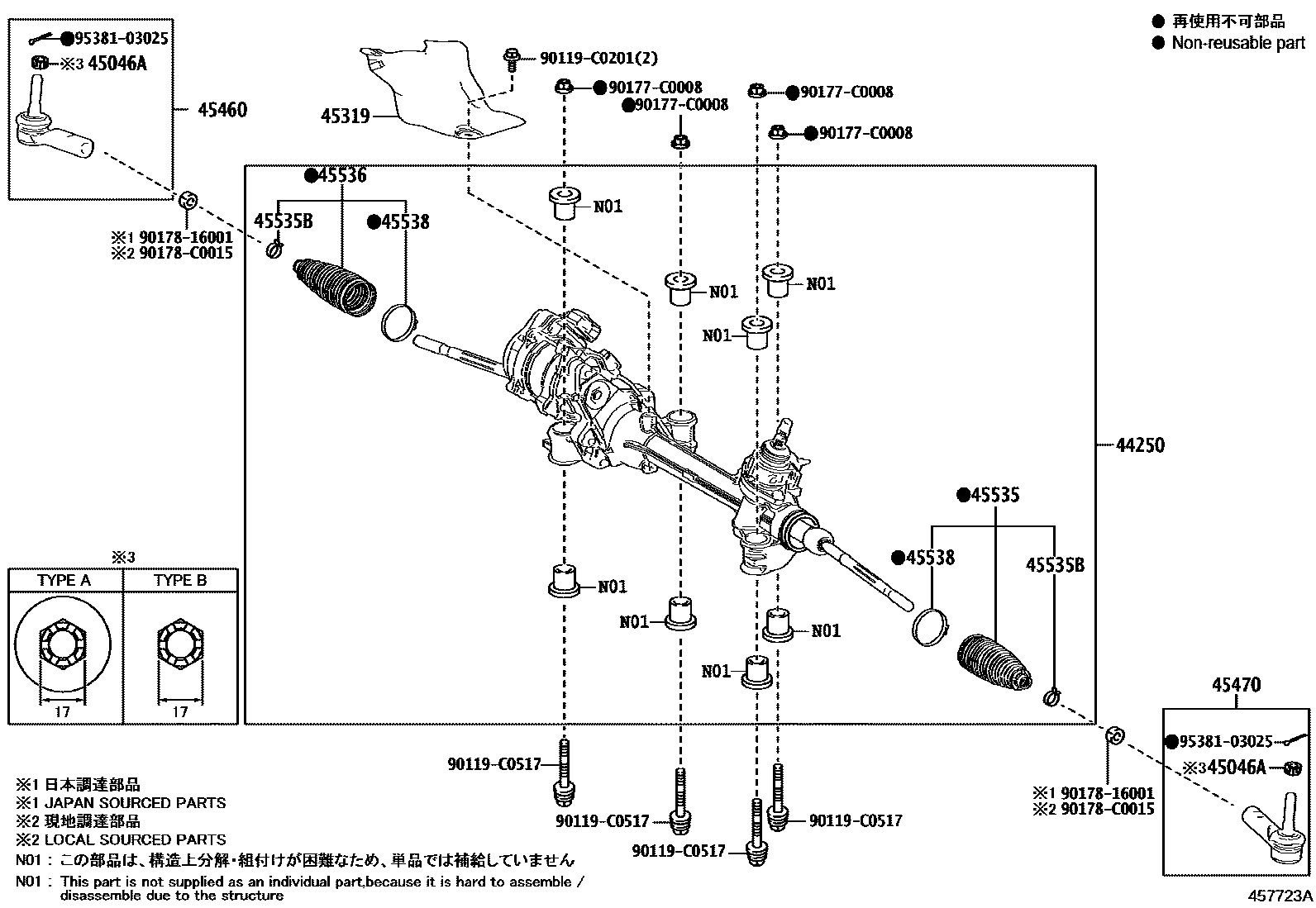

FRONT STEERING GEAR & LINK

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-0R030iAXAH5#;MXAA5#..A,M,X202004-202303

main44250-0R040iMXAA5#..G202004-202303

main44250-0R160iAXAL52..X202304-202405

main44250-0R170iMXAA5#..G202304-202405

main44250-0R200iMXAA5#..G202405

*614

main44250-0R210iAXAL5#..G,M;MXAA5#..M,X202405

*614

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12015iAXAH52,MXAA54..A,G202004-202303

TYPE A:REFER ILLUST.

main90171-12015iAXAL5#,MXAA54..G202303-202405

(J),T/P A:REF.ILLUST

main90171-12016iMXAA52;AXAL5#,MXAA54..M202303-202405

(J),T/P B:REF.ILLUST

main90171-12016iMXAA52;AXAH5#,MXAA54..M,X202004-202303

TYPE B:REFER ILLUST.

main90171-C0013iMXAA54..M;MXAA52..G,M,X202303-202405

(L),T/P B:REF.ILLUST

main90171-C0014iMXAA54..G202303-202405

(L),T/P A:REF.ILLUST

45319INSULATOR, STEERING GEAR HEAT

main45319-0R030iAXAL52..X202004-202405

45460ROD ASSY, TIE, RH

main45460-09340iMXAA5#..G202004-202405

main45460-09350iAXAH5#;MXAA5#..A,M,X202004-202402

sub45460-09440

main45460-09440iAXAL5#..G,M;MXAA5#..M,X202403

45470ROD ASSY, TIE, LH

main45460-09340iMXAA5#..G202004-202405

main45460-09350iAXAH5#;MXAA5#..A,M,X202004-202402

sub45460-09440

main45460-09440iAXAL5#..G,M;MXAA5#..M,X202403

45535BOOT, STEERING RACK, NO.1

main45535-09590iAXAH5#,MXAA5#202004-202103

sub45535-09680

main45535-09680iAXAL52..X202104-202405

45535BCLIP(FOR STEERING RACK BOOT)

main45537-0D030iMXAA52;AXAL5#,MXAA54..G,M202004-202405

45536BOOT, STEERING RACK, NO.2

main45535-09590iAXAH5#,MXAA5#202004-202103

sub45535-09680

main45535-09680iAXAH5#,MXAA5#202104-202405

45538RETAINER, STEERING RACK BOOT

main45538-06040iAXAH5#,MXAA5#202004-202103

main45538-0D070iAXAL52..X202104-202405

90119C0201

main90119-C0201

90119C0517

main90119-C0517

90177C0008

main90177-C0008

9017816001

main90178-16001

90178C0015

main90178-C0015

9538103025

main95381-03025

15 parts on this diagram · 1 diagram in section
