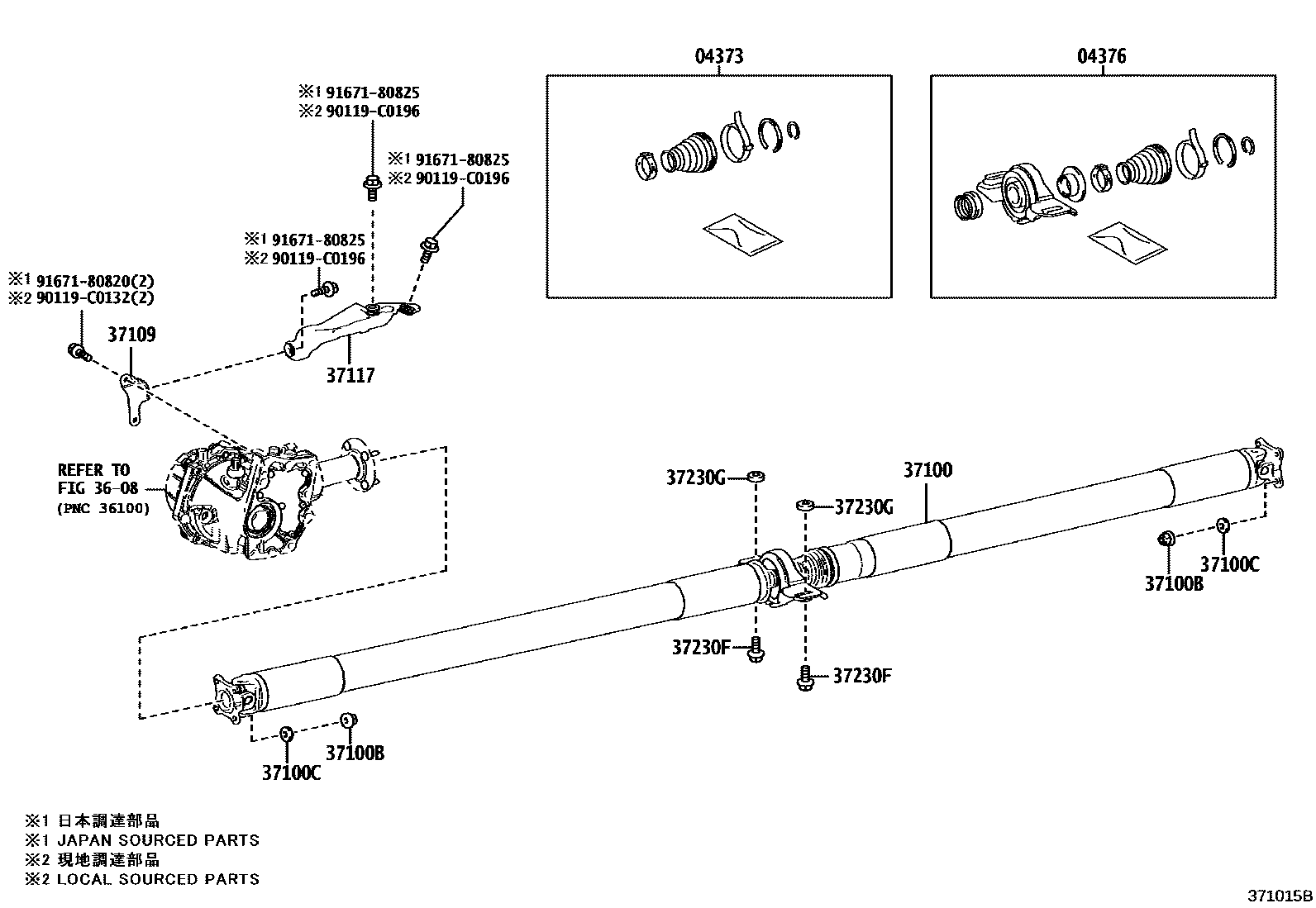

PROPELLER SHAFT & UNIVERSAL JOINT

04373BOOT KIT, UNIVERSAL

main04373-52010iMXAA54202004-202405

04376BEARING KIT, CENTER SUPPORT

main04376-52020iMXAA54202004-202405

3608

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-0R020iMXAA54..M202004-202405

main37100-0R030iMXAA54..A,G202004-202405

37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90178-C0066iMXAA54202004-202405

37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90201-08097iMXAA54202004-202405

37109BRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR, NO.1

main37109-0R030iMXAA54202004-202405

37117INSULATOR, PROPELLER SHAFT HEAT

main37117-0R030iMXAA54202004-202405

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90119-C0288iMXAA54202004-202405

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

main90201-10081iMXAA54202004-202405

T=4.5

main90201-10083iMXAA54202004-202405

T=6.5

main90201-10123iMXAA54202004-202405

T=2.0

90119C0132

main90119-C0132

90119C0196

main90119-C0196

9167180820

main91671-80820

9167180825

main91671-80825

14 parts on this diagram · 1 diagram in section
