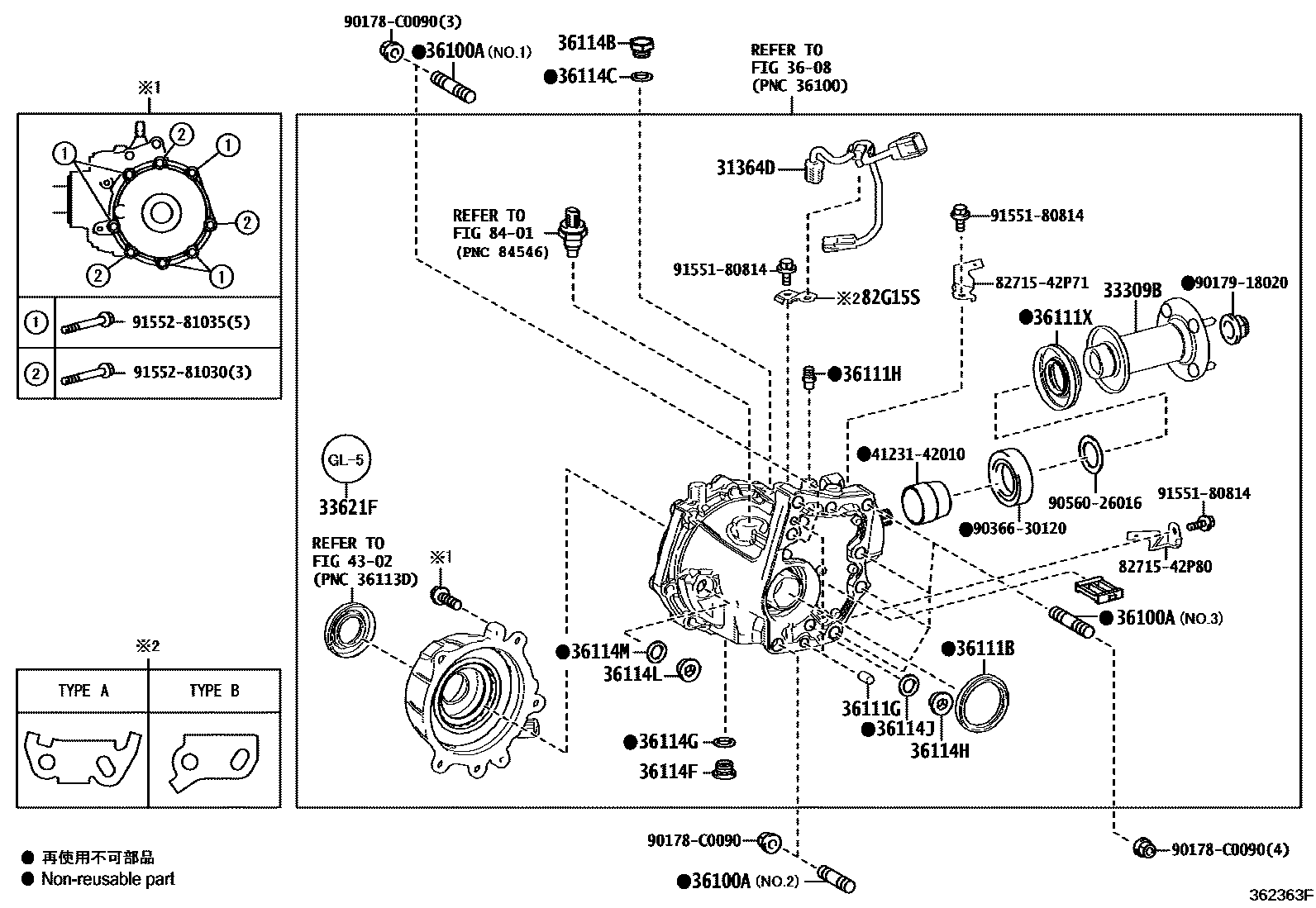

TRANSFER CASE & EXTENSION HOUSING
31364DWIRE, CLUTCH CONTROL SOLENOID
33309BFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
33621FLABEL, TRANSAXLE OIL INFORMATION
3608
36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
S=30 & 22,L=64,NO.3
S=22 & 22,L=73,NO.1
S=22 & 22,L=53,NO.2
36111BSEAL, OIL (FOR TRANSFER CASE)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
L=20,OD=10
36111HPLUG, BREATHER (FOR TRANSFER CASE)
36111XSEAL, OIL (FOR TRANSFER CASE), NO.2
36114BPLUG, NO.1 (FOR TRANSFER CASE)
36114CGASKET, NO.1 (FOR TRANSFER CASE)
36114FPLUG (FOR TRANSFER DRAIN)
36114GGASKET (FOR TRANSFER DRAIN PLUG)
36114HPLUG, NO.2 (FOR TRANSFER CASE)
sub90341-18044
36114JGASKET, NO.2 (FOR TRANSFER CASE)
36114LPLUG, FILLER(FOR TRANSFER)
36114MGASKET (FOR TRANSFER FILLER PLUG)
4302
82G15SBRACKET, WIRING HARNESS CLAMP
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
8401
4123142010SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
main41231-42010
8271542P71BRACKET,WIRING HARNESS CLAMP
main82715-42P71
8271542P80BRACKET,WIRING HARNESS CLAMP
main82715-42P80
90178C0090
main90178-C0090
9017918020
main90179-18020
9036630120
main90366-30120
9056026016
main90560-26016
9155180814
main91551-80814
9155281030
main91552-81030
9155281035
main91552-81035
30 parts on this diagram · 2 diagrams in section
