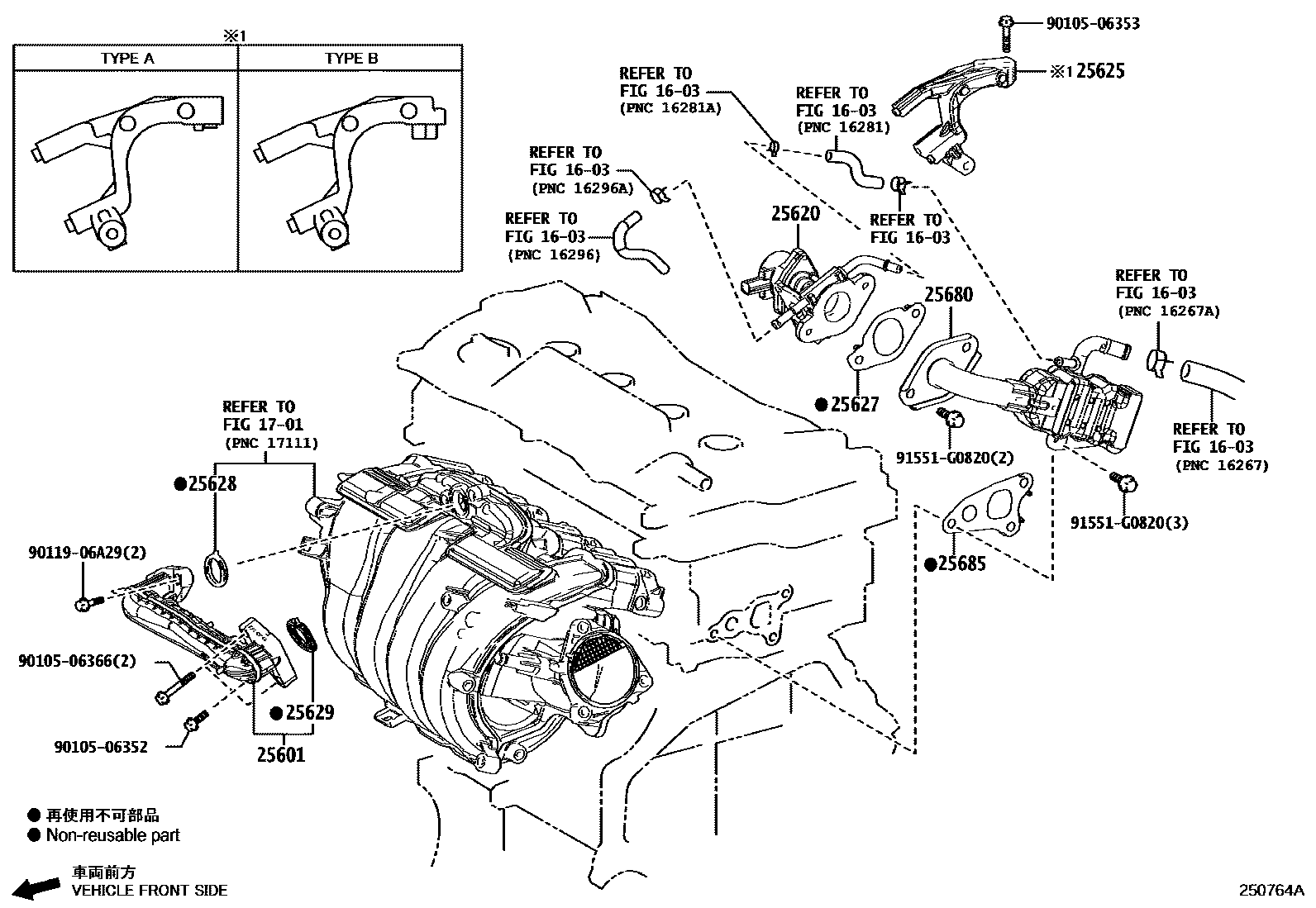

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1

1603

1701

25601PIPE SUB-ASSY, EGR, NO.1

main25601-25011iA25..AXAH5#202004-202105

*636

main25601-25011iA25..AXAH5#202105-202303

*634

main25601-25011iA25..AXAH5#202105-202303

ENGINE-A25B-FXS,*636

main25601-25030iA25..AXAL5#..G,M202405

*636

main25601-25030iA25..AXAL5#..G,M202304-202405

ENGINE-A25B-FXS,*636

main25601-F0030iA25..AXAL5#..G,M202304-202405

*634

main25601-F2030iM20CFKS..MXAA5#202004-202501

main25601-F2070iM20CFKS..MXAA5#202501

25620VALVE ASSY, EGR

main25620-24060iA25..AXAL52..X202304-202405

ENGINE-A25B-FXS,*636

main25620-24060iA25..AXAL5#..G,M202405

*636

main25620-25050iA25..AXAH5#202105-202303

*634

main25620-25050iA25..AXAH5#202105-202303

ENGINE-A25B-FXS,*636

main25620-25050iA25..AXAH5#202004-202105

*636

main25620-F2060iA25..AXAL5#..G,M202304-202405

*634

main25620-F2060iM20CFKS..MXAA5#202004-202303

25625BRACKET, EGR VALVE

main25625-25010iA25..AXAH5#202004-202007

*636T/P A:REF.ILLUST

main25625-25030iA25..AXAH5#202105-202303

*634

main25625-25030iA25..AXAH5#202105-202303

ENGINE-A25B-FXS,*636T/P B:REF.ILLUST

main25625-25030iA25..AXAH5#202007-202105

*636T/P B:REF.ILLUST

25627GASKET, EGR VALVE

main25627-24010iA25..AXAL5#..G,M202405

*636

main25627-24010iA25..AXAL52..X202304-202405

ENGINE-A25B-FXS,*636

main25627-25010iA25..AXAH5#202105-202303

*634

main25627-25010iA25..AXAH5#202105-202303

ENGINE-A25B-FXS,*636

main25627-25010iA25..AXAH5#202004-202105

*636

main25627-F2020iA25..AXAL52..X202304-202405

*634

main25627-F2020iM20CFKS..MXAA5#202004-202303

25628GASKET, EGR INLET

main25628-25010iM20CFKS..MXAA5#202004-202303

main25628-25010iM20CFKS..MXAA5#202405

*634,*636

main25628-25010iA25..AXAH5#202004-202105

*636

main25628-25010iA25..AXAH5#202105-202405

*634

main25628-25010iA25..AXAH5#202105-202405

ENGINE-A25B-FXS,*636

25629GASKET, EGR VALVE ADAPTER

main25629-25010iM20CFKS..MXAA5#202405

*634,*636

main25629-25010iA25..AXAH5#202004-202105

*636

main25629-25010iM20CFKS..MXAA5#202004-202303

main25629-25010iA25..AXAH5#202105-202405

*634

main25629-25010iA25..AXAH5#202105-202405

ENGINE-A25B-FXS,*636

25680COOLER ASSY, EGR

main25680-25040iA25..AXAH5#202105-202303

*634

main25680-25040iA25..AXAH5#202004-202105

*636

main25680-25040iA25..AXAH5#202105-202303

ENGINE-A25B-FXS,*636

main25680-25080iA25..AXAL5#..G,M202405

*636

main25680-25080iA25..AXAL5#..G,M202304-202405

ENGINE-A25B-FXS,*636

main25680-F0050iA25..AXAL5#..G,M202304-202405

*634

main25680-F2020iM20CFKS..MXAA5#202004-202405

25685GASKET, EGR COOLER, NO.1

main25685-25011iA25..AXAL52..X202105-202405

(J),*634

main25685-25011iA25..AXAL52..X202105-202405

ENGINE-A25B-FXS,*636

main25685-25011iA25..AXAL5#..G,M202405

*636,(J),*634

main25685-25011iA25..AXAH5#202004-202105

*636

main25685-F2010iA25..AXAL5#..G,M202105-202405

(L),*634

main25685-F2010iM20CFKS..MXAA5#202004-202303

9010506352

main90105-06352

9010506353

main90105-06353

9010506366

main90105-06366

9011906A29

main90119-06A29

91551G0820

main91551-G0820

15 parts on this diagram · 3 diagrams in section
