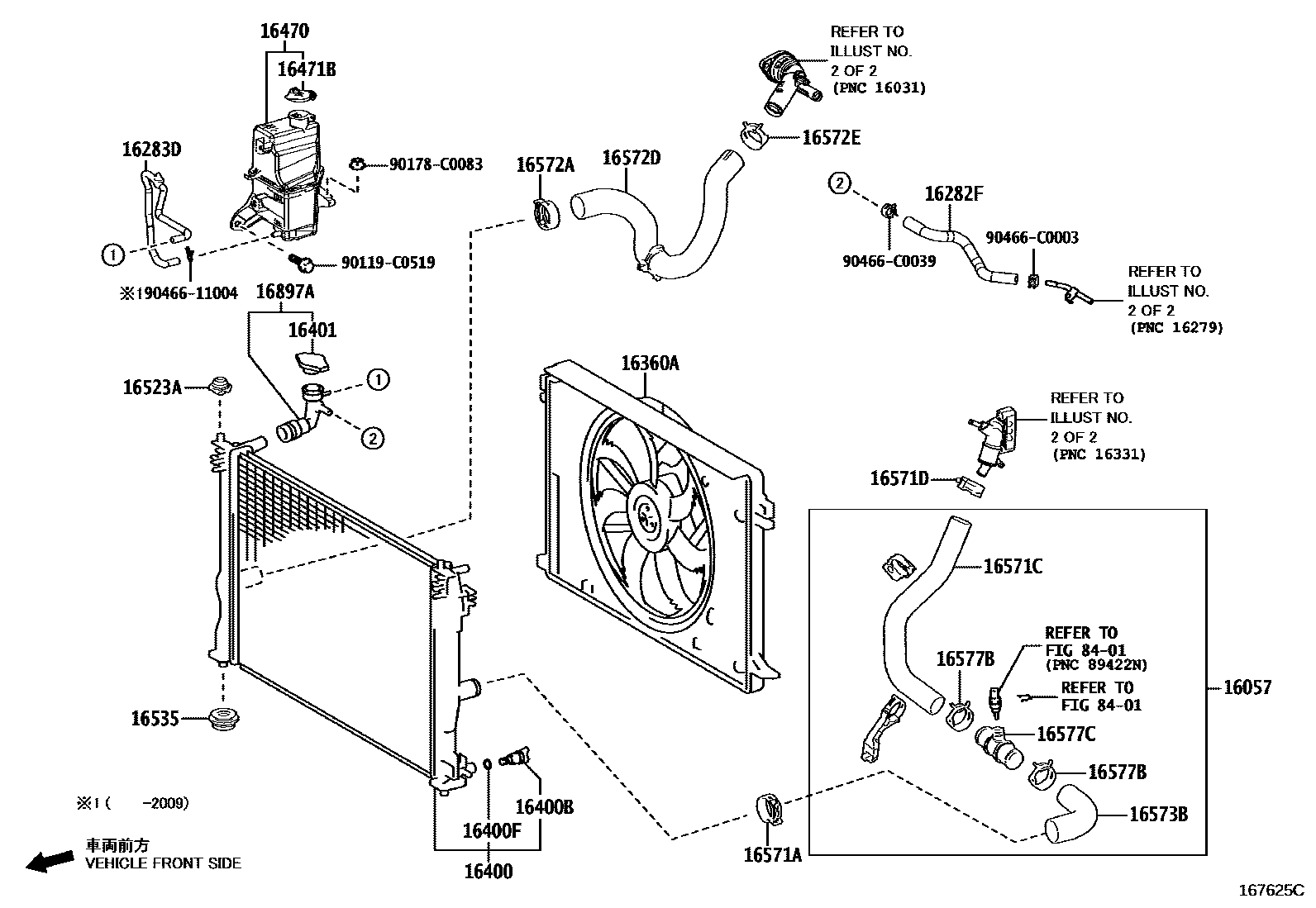

RADIATOR & WATER OUTLET

0001 1RADIATOR SIDE 0002 1RADIATOR SIDE 0003 1ENGINE SIDE 0004 1ENGINE SIDE 0005 1 0006 1

16057HOSE SUB-ASSY, RADIATOR

main16057-F0060iA25..AXAH5#202004-202111

main16057-F0160iA25..AXAL52..X202111-202405

16282HOSE, WATER BY-PASS, NO.5

main16282-25040iA25..AXAH5#202004-202105

*636

main16282-F0240iA25..AXAH5#202105-202405

*634

main16282-F2070iM20CFKS..MXAA5#202004-202410

main16282-F2170iM20CFKS..MXAA5#202410

16282FHOSE, WATER BY-PASS, NO.5

main16282-F0200iA25..AXAH5#202004-202405

16283HOSE, WATER BY-PASS, NO.6

main16283-25020iA25..AXAL5#..G,M202004-202105

*636

main16283-F0140iA25..AXAL5#..G,M202105-202405

*634

main16283-F2050iM20CFKS..MXAA5#202004-202410

main16283-F2120iM20CFKS..MXAA5#202410

16283DHOSE, WATER BY-PASS, NO.6

main16283-F0090iM20CFKS..MXAA5#202004-202405

16360AFAN ASSY, W/MOTOR

main16360-0V340iM20CFKS..MXAA52202004-202405

main16360-F0090iA25..AXAH5#202004-202212

main16360-F0260iA25..AXAL5#..G,M202212-202405

main16360-F2130iM20CFKS..MXAA54202004-202211

main16360-F2350iM20CFKS..MXAA54202211-202405

16400RADIATOR ASSY

main16400-0V300iA25..AXAH5#202004-202405

main16400-F0130iA25..AXAH5#202111-202405

16400BPLUG, RADIATOR DRAIN COCK

main16417-0H290iM20CFKS..MXAA5#202004-202405

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-0T270iA25..AXAH5#202111-202303

main16492-21050iM20CFKS..MXAA5#202004-202405

16401CAP SUB-ASSY, RADIATOR

main16401-36030iM20CFKS..MXAA5#202004-202405

(J)

main16401-F0010iA25..AXAH5#202004-202405

(L)

16470TANK ASSY, RADIATOR RESERVE

main16470-F0050iM20CFKS..MXAA5#202004-202405

16471BCAP, RESERVE TANK

main16405-F0030iM20CFKS..MXAA5#202004-202405

16523ACUSHION, RADIATOR SUPPORT

main16523-F0010iA25..AXAL5#..G,M202004-202405

16535SUPPORT, RADIATOR, LOWER

main16535-0H040iA25..AXAL52..X202005-202405

main16535-0V020iM20CFKS..MXAA5#202004-202405

main16535-28030iA25..AXAH5#202004-202005

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-39002iM20CFKS..MXAA5#202004-202405

16571CHOSE, RADIATOR, NO.1

main16571-F0190iA25..AXAH5#202004-202111

main16571-F2080iM20CFKS..MXAA5#202004-202405

16571DCLIP, RADIATOR HOSE, NO.1

main90466-43002iM20CFKS..MXAA5#202004-202005

main90466-C0053iA25..AXAL5#..G,M202005-202405

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-39002iA25..AXAH5#202004-202405

16572DHOSE, RADIATOR, NO.2

main16572-F0140iA25..AXAH5#202004-202111

main16572-F0240iA25..AXAL52..X202111-202405

main16572-F2070iM20CFKS..MXAA5#202004-202405

16572ECLIP, RADIATOR HOSE, NO.2

main90466-43002iA25..AXAH5#202004-202005

main90466-C0053iA25..AXAL52..X202005-202405

16573BHOSE, RADIATOR, NO.3

main16573-F0120iA25..AXAH5#202004-202111

16577BCLAMP OR CLIP, HOSE(FOR RADIATOR PIPE)

main90466-43002iA25..AXAH5#202004-202005

main90466-C0053iA25..AXAL5#..G,M202005-202405

16577CPIPE, RADIATOR

main16577-F2060iA25..AXAL5#..G,M202004-202405

16897ANECK, FILLER

main16897-F0090iM20CFKS..MXAA5#202004-202405

8401

90119C0519

main90119-C0519

90178C0083

main90178-C0083

9046611004

main90466-11004

90466C0003

main90466-C0003

90466C0039

main90466-C0039

30 parts on this diagram · 6 diagrams in section
