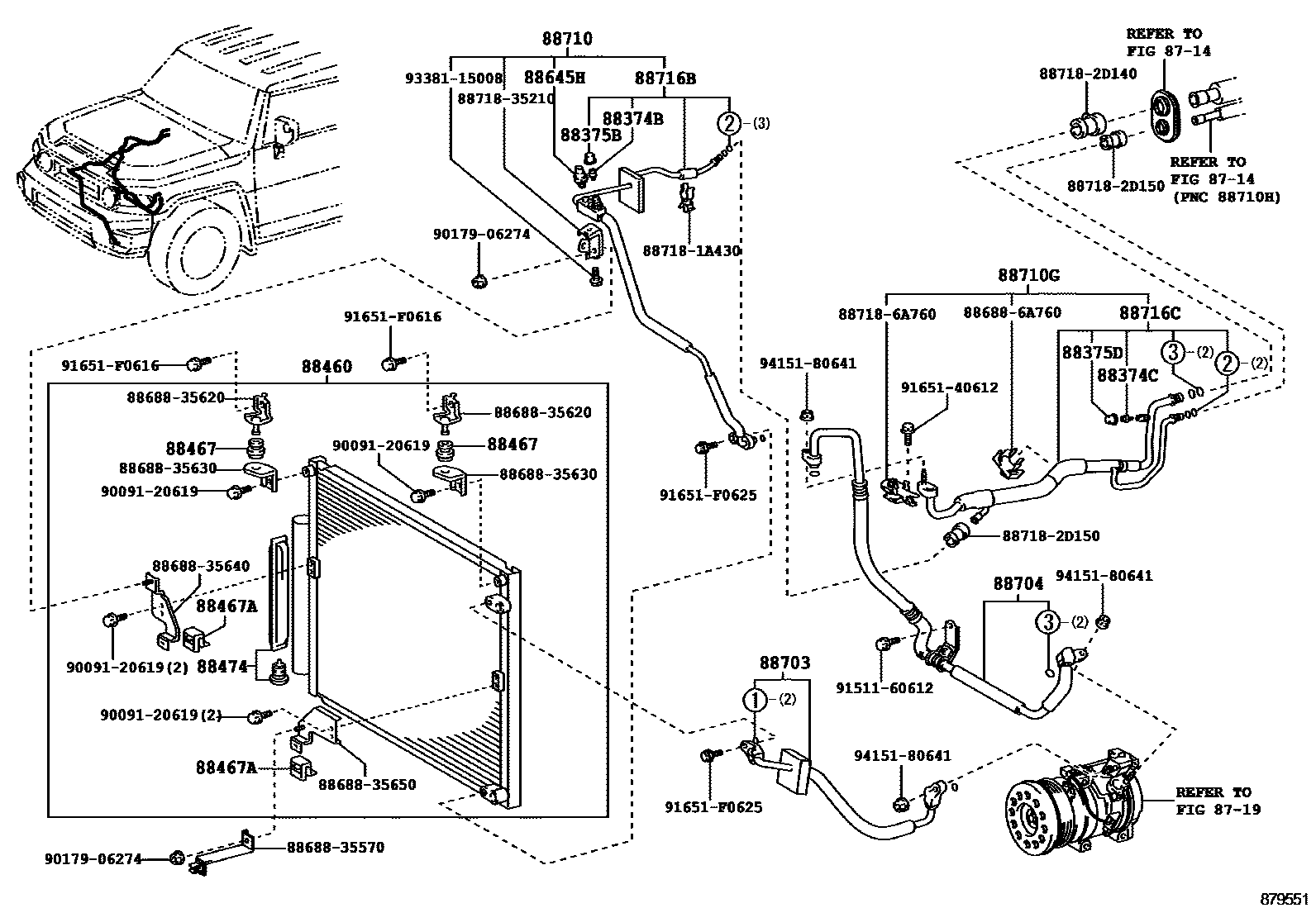

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1O-RING

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iGSJ15..CHI,GEN200908-201011

88374CVALVE, SERVICE, NO.2

main88374-30010iGSJ15..ATM201011

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iGSJ15..ATM201011

main88375-30290iGSJ15..CHI,GEN200908-201011

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iGSJ15..ATM201011

88460CONDENSER ASSY, COOLER

main88460-35380iGSJ15200707-201011

88467CUSHION, COOLER CONDENSER, NO.1

main88467-28050×2iGSJ15200707-201011

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-35080×2iGSJ15200707-201011

88474DRYER, COOLER

main88474-17010iGSJ15200707-201011

88645HSWITCH, PRESSURE NO.1

main88645-34010iGSJ15200707-201011

88703HOSE SUB-ASSY, DISCHARGE

main88703-35050iGSJ15..GEN200707-200710

main88703-35051iGSJ15..CHI,GEN200711-200907

main88703-35052iGSJ15..MTM..GEN201011-201712

main88703-35070iGSJ15..GCC200707-200708

main88703-35071iGSJ15..GCC200709-200907

main88703-35072iGSJ15..MTM..GCC201011-201712

88704HOSE SUB-ASSY, SUCTION

main88704-35080iGSJ15200908-201011

main88704-60370iGSJ15..CHI,GEN200707-200908

main88704-60390iGSJ15..GCC200707-200908

88710TUBE ASSY, AIR CONDITIONER

main88710-35700iGSJ15200707-201011

88710GTUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2

main88710-35710iGSJ15..GCC200707-200908

sub88688-6A760

sub88718-6A760

main88710-35760iGSJ15..GCC200908-201011

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-35730iGSJ15200707-201011

88716CPIPE, COOLER REFRIGERANT LIQUID, C

main88710-35720iGSJ15..GCC200707-200908

main88710-35780iGSJ15..GCC200908-201011

8868835570BRACKET, COOLER DIAPHRAGM

main88688-35570

8868835620BRACKET, COOLER DIAPHRAGM

main88688-35620

8868835630BRACKET, COOLER DIAPHRAGM

main88688-35630

8868835640BRACKET, COOLER DIAPHRAGM

main88688-35640

8868835650BRACKET, COOLER DIAPHRAGM

main88688-35650

886886A760BRACKET, COOLER DIAPHRAGM

main88688-6A760

887181A430PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A430

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8871835210PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-35210

887186A760PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-6A760

9009120619

main90091-20619

9017906274

main90179-06274

9151160612

main91511-60612

9165140612

main91651-40612

91651F0616

main91651-F0616

91651F0625

main91651-F0625

9338115008

main93381-15008

9415180641

main94151-80641

36 parts on this diagram · 5 diagrams in section
