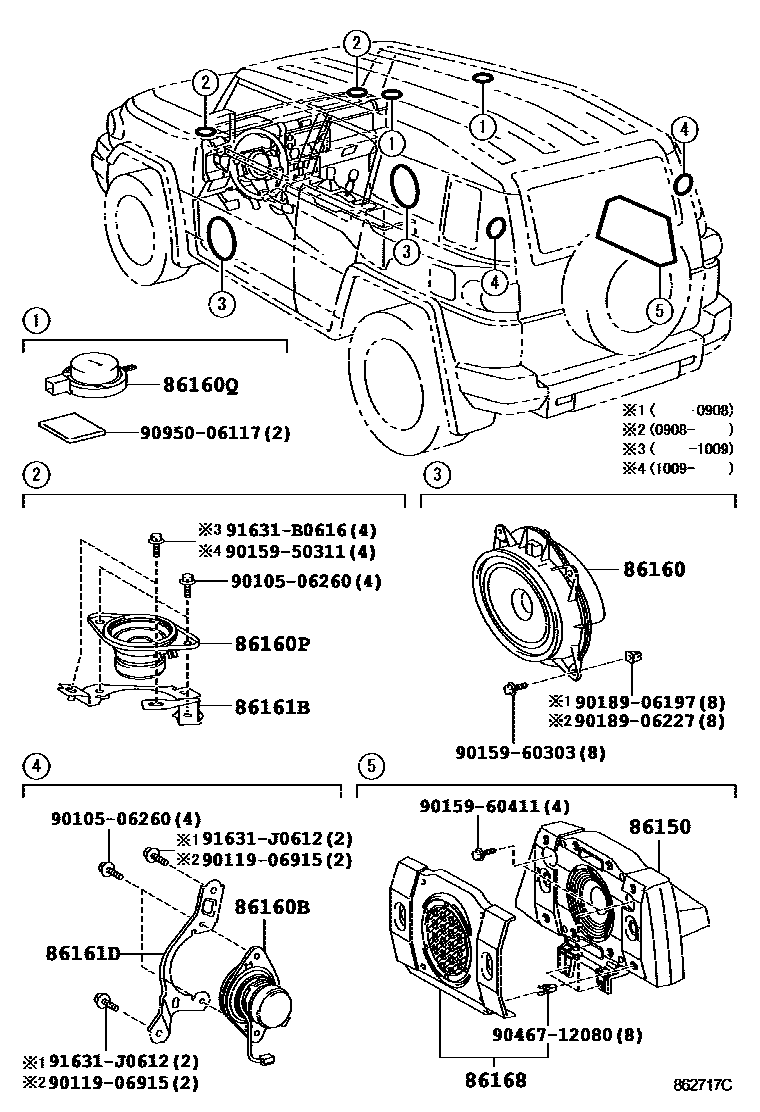

SPEAKER

0001 1 0002 1

86150SPEAKER ASSY, W/BOX, NO.1

main86150-35100supersedes 86150-0W160iGSJ15..GCC200707-201011

AUDIO-AM/FM CD CHANGER, 9SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-04130×2iGSJ15..CHI201011-201512

main86160-22A00×2iGSJ15200707-201011

86160BSPEAKER ASSY, REAR

main86160-0WV30iGSJ15..CHI201011-201512

RH

main86160-0WV40iGSJ15..CHI201011-201512

LH

main86160-35280iGSJ15..CHI200712-201011

RH

main86160-35290iGSJ15..SA202205

LH

86160PSPEAKER ASSY, FRONT NO.2

main86160-0WV10iGSJ15..CHI201011-201512

RH

main86160-0WV20iGSJ15..CHI201011-201512

LH

main86160-35270×2iGSJ15..ARL,GCC,GEN,SA201011

86160QSPEAKER ASSY, ROOF

main86160-28660×2iGSJ15200707-201011

86161BBRACKET, SPEAKER, FRONT NO.2

main86161-35090iGSJ15200707-201011

RH

main86161-35100iGSJ15..ARL,GCC,GEN,SA201011

LH

86161DBRACKET, SPEAKER MOUNTING, NO.1

main86161-35110iGSJ15..CHI200712-201011

RH

main86161-35120iGSJ15..SA202205

LH

86168COVER, SPEAKER MOUNTING

main86168-35020supersedes 86168-0W010iGSJ15..CHI200712-201011

AUDIO-AM/FM CD CHANGER, 9SPEAKER

9010506260

main90105-06260

9011906915

main90119-06915

9015950311

main90159-50311

9015960303

main90159-60303

9015960411

main90159-60411

9018906197

main90189-06197

9018906227

main90189-06227

9046712080

main90467-12080

9095006117

main90950-06117

91631B0616

main91631-B0616

91631J0612

main91631-J0612

19 parts on this diagram · 2 diagrams in section
