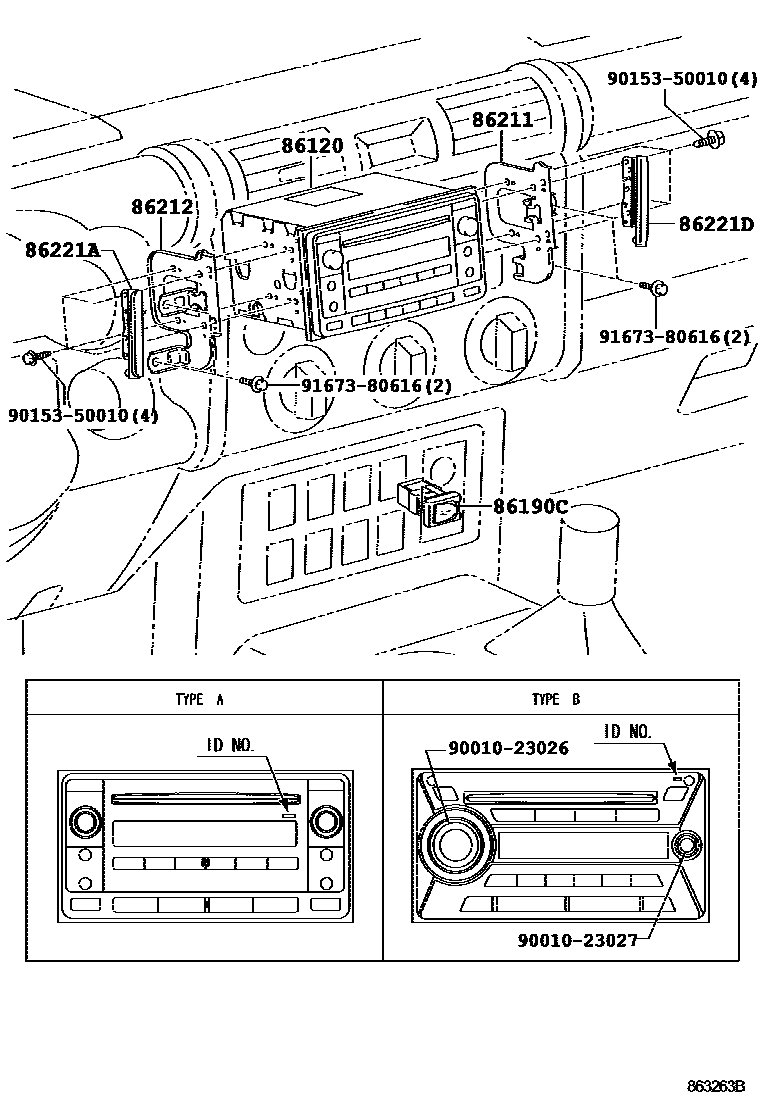

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-35420iGSJ15..GCC200707-201011

FUJITSU TEN,ID=12871

main86120-35430iGSJ15..GCC200707-201011

FUJITSU TEN,ID=12870,AUDIO-AM/FM CD CHANGER, 8SPERAKER

main86120-35430iGSJ15..GCC200707-201011

FUJITSU TEN,ID=12870,AUDIO-AM/FM CD CHANGER, 9SPEAKER

main86120-35440iGSJ15..CHI200712-201011

FUJITSU TEN,ID=12872

main86120-35640iGSJ15..ATM..GCC201011

PIONEER,ID=P10003,AUDIO-JBL 10SPEAKER WITH(SUB WOOFER)

main86120-35650iGSJ15..CHI201011-201512

PIONEER,ID=P10004

sub86120-35651

main86120-35660iGSJ15..ATM..GCC201011-201208

PIONEER,ID=P10056

main86120-35670iGSJ15..ARL201011-201308

PIONEER,ID=P10057,AUDIO-AM/FM CD 6SPEAKER

main86120-35680iGSJ15..SA201011-202205

FUJITSU TEN,ID=22839

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-48030iGSJ15..ATM..GCC201208

VSC-WITH(A-TRC & CRAWL CONTROL)&AUDIO-JBL 10SPEAKER WITH(SUB WOOFER)

main86190-48030iGSJ15..ATM..GCC201011-201608

main86190-48030iGSJ15..GEN..RHD201208

AUDIO-JBL 10SPEAKER WITH(SUB WOOFER)

main86190-53010iGSJ15200707-201011

86211BRACKET, RADIO, NO.1

main86211-35061iGSJ15..ATM200707-201712

86212BRACKET, RADIO, NO.2

main86212-35061iGSJ15200707-201712

86221APANEL, RADIO RECEIVER

main86221-52050iGSJ15..GEN200707-201011

AUDIO-LESS AUDIO, 6SPEAKER

main86221-52050iGSJ15..ATM..GCC201011-201208

AUDIO-RADIO LESS 8SPEAKER

main86221-52050iGSJ15..ARL,GEN;GSJ15..MTM..GCC201011

86221DPANEL, RADIO RECEIVER

main86221-52060iGSJ15..GEN200707-201011

AUDIO-LESS AUDIO, 6SPEAKER

main86221-52060iGSJ15..ATM..GCC201011-201208

AUDIO-RADIO LESS 8SPEAKER

main86221-52060iGSJ15..ARL,GEN;GSJ15..MTM..GCC201011

9001023026

main90010-23026

9001023027

main90010-23027

9015350010

main90153-50010

9167380616

main91673-80616

10 parts on this diagram · 3 diagrams in section
