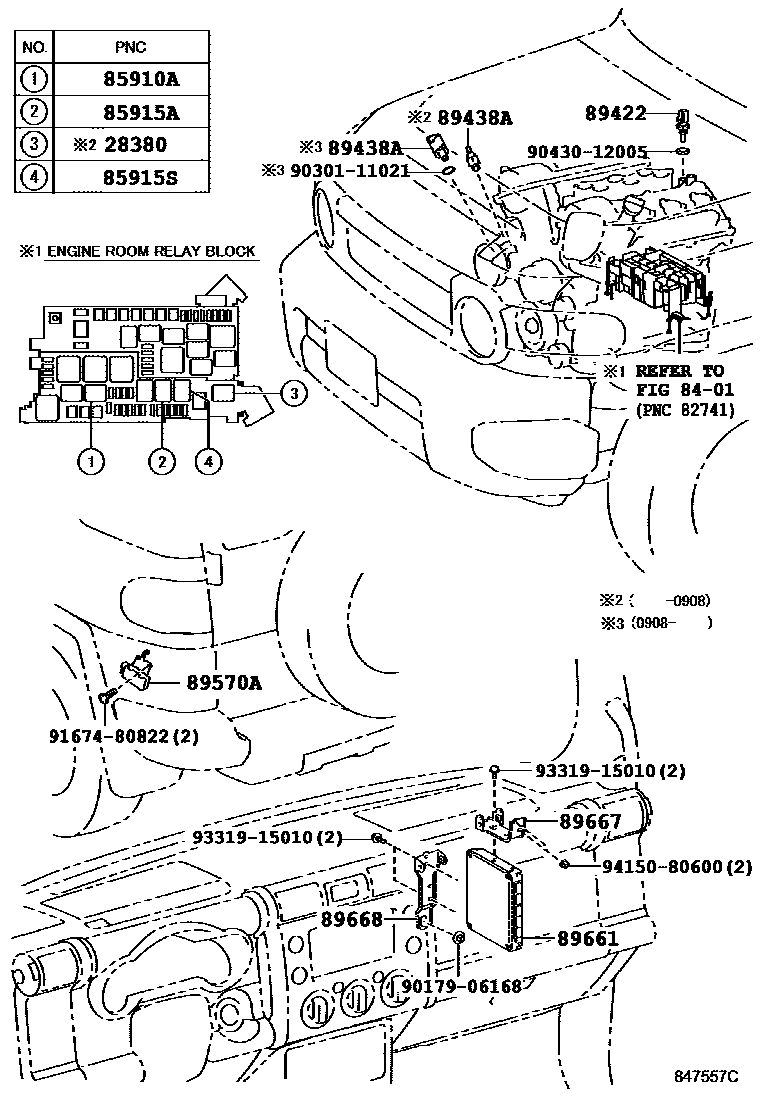

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

28380RELAY ASSY, FUEL PUMP

main90987-04004i1GRFE..GSJ15200707-200908

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02027iGSJ15200707-201011

85915ARELAY, MAIN

main90987-02027iGSJ15201011

85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)

main90987-02027iGSJ15201011

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iGSJ15200707-201011

89438ASWITCH, POWER STEERING OIL PRESSURE

main89438-33010iGSJ15200707-200908

main89448-34020iGSJ15200908-201011

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-35240iGSJ15201011-201208

main89570-35260iGSJ15201208

89661COMPUTER, ENGINE CONTROL

main89661-35D00iGSJ15..MTM200707-200908

main89661-35D10iGSJ15..ATM..(GCC,GEN)200707-200908

main89661-35F90iGSJ15..MTM200908-201011

main89661-35G00iGSJ15..ATM..(GCC,GEN)200908-201011

main89661-35G10iGSJ15..CHI200908-201011

main89661-35G80iGSJ15..MTM201011-201108

main89661-35G90iGSJ15..ATM..(GCC,GEN,SA)201011-201108

PAPUA NEW GUINEA SPEC

main89661-35J00iGSJ15..ARL,CHI201011-201108

main89661-35K20iGSJ15..MTM201108-201208

main89661-35K30iGSJ15..ATM..(GCC,GEN,SA)201108-201208

PAPUA NEW GUINEA SPEC

main89661-35K40iGSJ15..ARL,CHI201108-201208

main89661-35K90iGSJ15..MTM..GEN201208-201712

main89661-35L00iGSJ15..ATM..(GEN,SA)201208

main89661-35L10iGSJ15..ARL201208-201608

main89661-35L20iGSJ15..CHI201208-201512

main89661-35M40iGSJ15..MTM..GCC201402-201712

main89661-35E00supersedes 89661-35D90iGSJ15..CHI200712-200908

EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(OBD)

main89661-35M90iGSJ15..ATM..GEN..LHD201408-202002

CHILE SPEC

main89661-35P10supersedes 89661-35M50iGSJ15..GCC202110

DENSO,EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS, AI)

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-35130iGSJ15..LHD201011

main89667-35140iGSJ15..RHD201011

main89667-60240iGSJ15200707-200908

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-35170iGSJ15200908-201011

main89668-60240iGSJ15200707-200908

9017906168

main90179-06168

9030111021

main90301-11021

9043012005

main90430-12005

9167480822

main91674-80822

9331915010

main93319-15010

9415080600

main94150-80600

17 parts on this diagram · 4 diagrams in section
