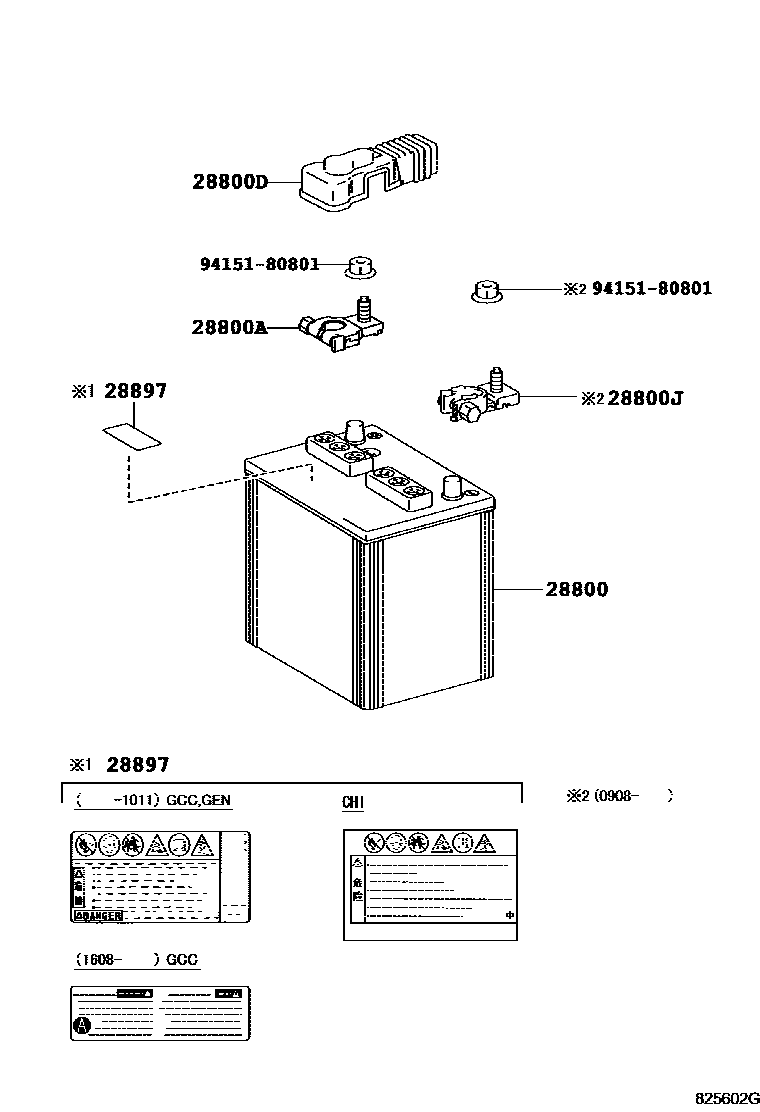

BATTERY & BATTERY CABLE

28800BATTERY

main28800-17121i1GRFE..GSJ15..ATM..GCC;1GRFE..GSJ15..ARL,CHI,GEN,SA201011-201204

80D26L,FURUKAWA

sub28800-38080

main28800-17122i1GRFE..GSJ15202209

80D26L,FURUKAWA

main28800-38080i1GRFE..GSJ15..ATM..GCC;1GRFE..GSJ15..ARL,CHI,GEN,SA201204-202208

80D26L,FURUKAWA

sub28800-38081

main28800-54020i1GRFE..GSJ15..ATM..GCC;1GRFE..GSJ15..ARL,CHI,GEN,SA201011

80D26L,YUASA

sub28800-67102

main28800-64181i1GRFE..GSJ15..MTM..GCC201011-201201

95D31L,YUASA

sub28800-78120

main28800-64251i1GRFE..GSJ15..MTM..GCC201011-201101

105D31L,FURUKAWA

sub28800-64905

main28800-64905i1GRFE..GSJ15..MTM..GCC201101-201712

105D31L,FURUKAWA

sub28800-38200

main28800-66013i1GRFE..GSJ15..MTM..GCC201202-201712

105D31L,YUASA

sub28800-66014

main28800-66021i1GRFE..GSJ15200707-201011

105D31L

sub28800-66022

main28800-76081i1GRFE..GSJ15202207

80D26L,PANASONIC

sub28800-76082

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i1GRFE..GSJ15200707-200908

main90982-05069i1GRFE..GSJ15200908-201712

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-35020i1GRFE..GSJ15200707-201712

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i1GRFE..GSJ15200908-201712

28897PLATE, BATTERY CAUTION

main28897-36030i1GRFE..GSJ15..GCC201608

main28897-50020i1GRFE..GSJ15..GEN200908-201011

main28897-50030i1GRFE..GSJ15..CHI200712-201512

sub28897-38060

9415180801

main94151-80801

6 parts on this diagram · 1 diagram in section
