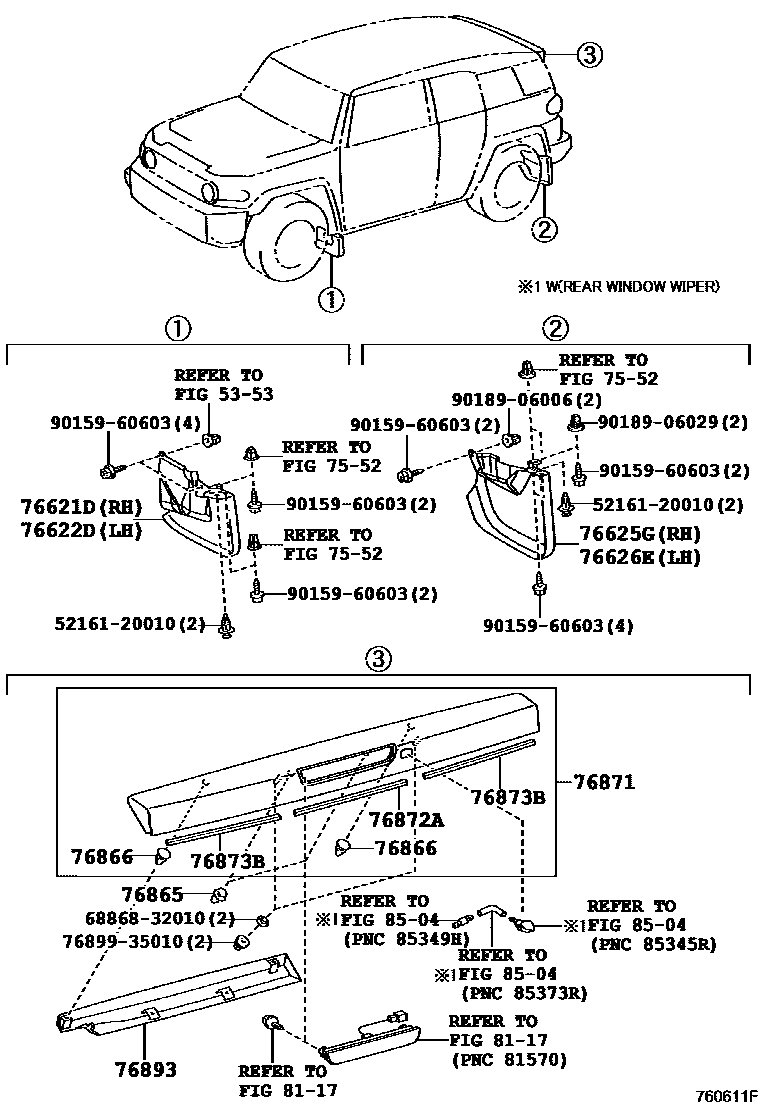

SPOILER & SIDE MUDGUARD
5353
7552
76621DMUDGUARD, FRONT FENDER, RH
76622DMUDGUARD, FRONT FENDER, LH
76625GMUDGUARD, QUARTER PANEL, REAR RH
76626EMUDGUARD, QUARTER PANEL, REAR LH
76865RETAINER, REAR SPOILER, NO.1
76866RETAINER, REAR SPOILER, NO.2
76871SPOILER, REAR
NO PAINT REQ.,REAR WINDOW WIPER-WITH
NO PAINT REQ.,CONVENIENCE PACKAGE
NO PAINT REQ.,REAR WINDOW WIPER-WITH
NO PAINT REQ.
NO PAINT REQ.
76872APROTECTOR, REAR SPOILER, NO.1
76873BPROTECTOR, REAR SPOILER, NO.2
76893COVER, REAR SPOILER, NO.1
8117
8504
5216120010CUSHION, REAR BUMPER GUARD, NO.1
6886832010SEAL, BACK DOOR HINGE
7689935010PROTECTOR, REAR SPOILER, SIDE NO.6
9015960603
9018906006
9018906029
20 parts on this diagram · 1 diagram in section
